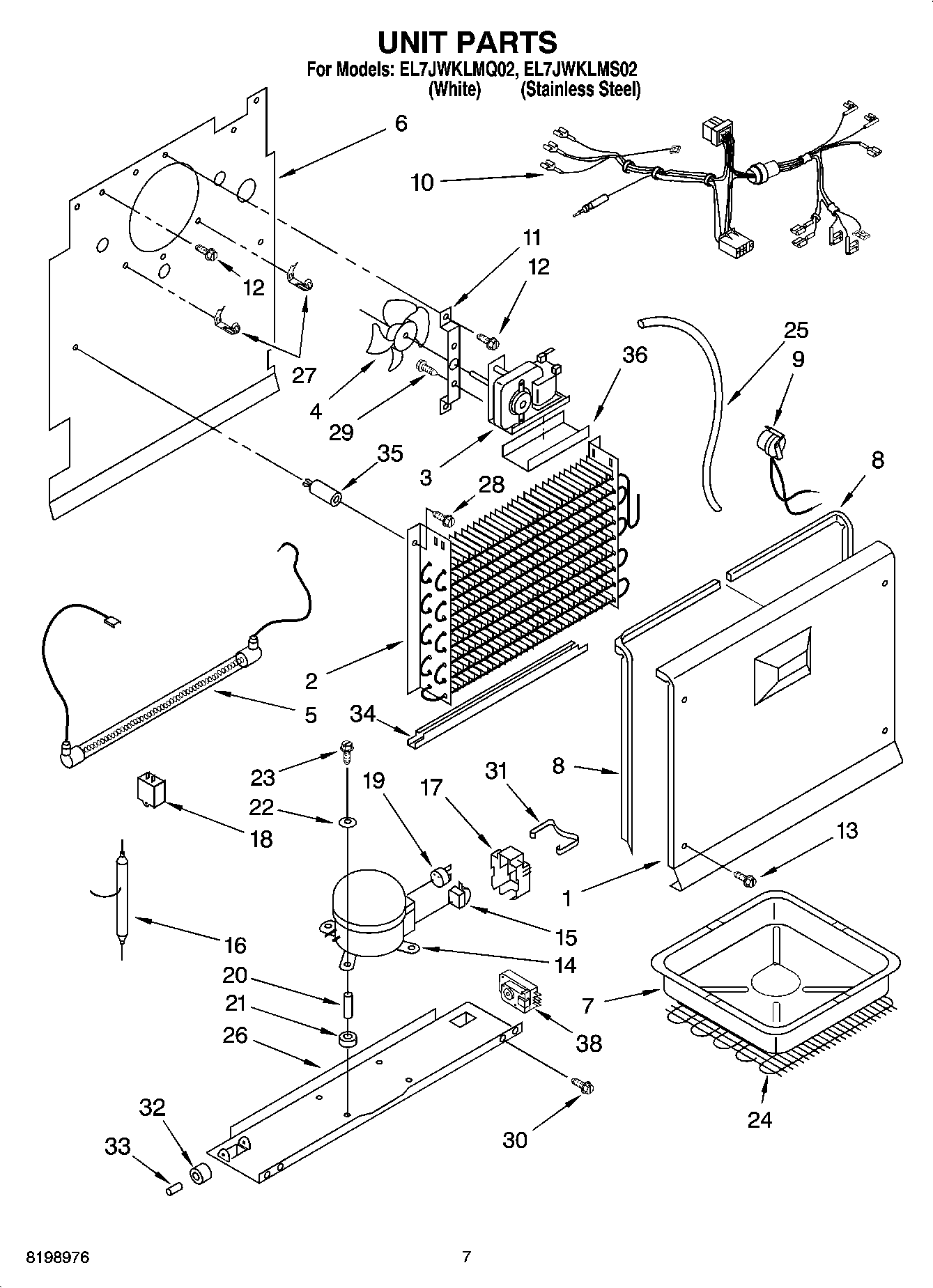

EL7JWKLMQ02 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

EL7JWKLMQ02 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

EL7JWKLMQ02 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Parts Not Illustrated and Optional Parts (Not Included)
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
Customer Touch-Up Material
REFINISHING MATERIAL
Miscellaneous
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3MOTOR-EVAP
4BLADE-FAN
58201749 Whirlpool Refrigerator Defrost Heater
6Plate, Evaporator Mount
7Drain Pan
84390664 Whirlpool Refrigerator Gasket
84390663 Whirlpool Refrigerator Gasket
9WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
10Harness, Unit
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13WP3-24004-109 Whirlpool Refrigerator Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
17Cover
183-35956-013 Whirlpool Refrigerator Capacitor
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
23Screw, Compressor Mounting
24Condenser
25Exchanger, Heat
26Compressor Pan (White)
27Thermostat, Clip
28WP489478 Whirlpool Refrigerator Screw
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
31Clip
32Roller, Front
33Axle
34Shield, Heater
35Grommet
364357128 Whirlpool Refrigerator Motor Bracket
38WP3-81329 Whirlpool Refrigerator Defrost Timer
38REFRIGERANT CHARGE 4.107 oz. (R-134A)
