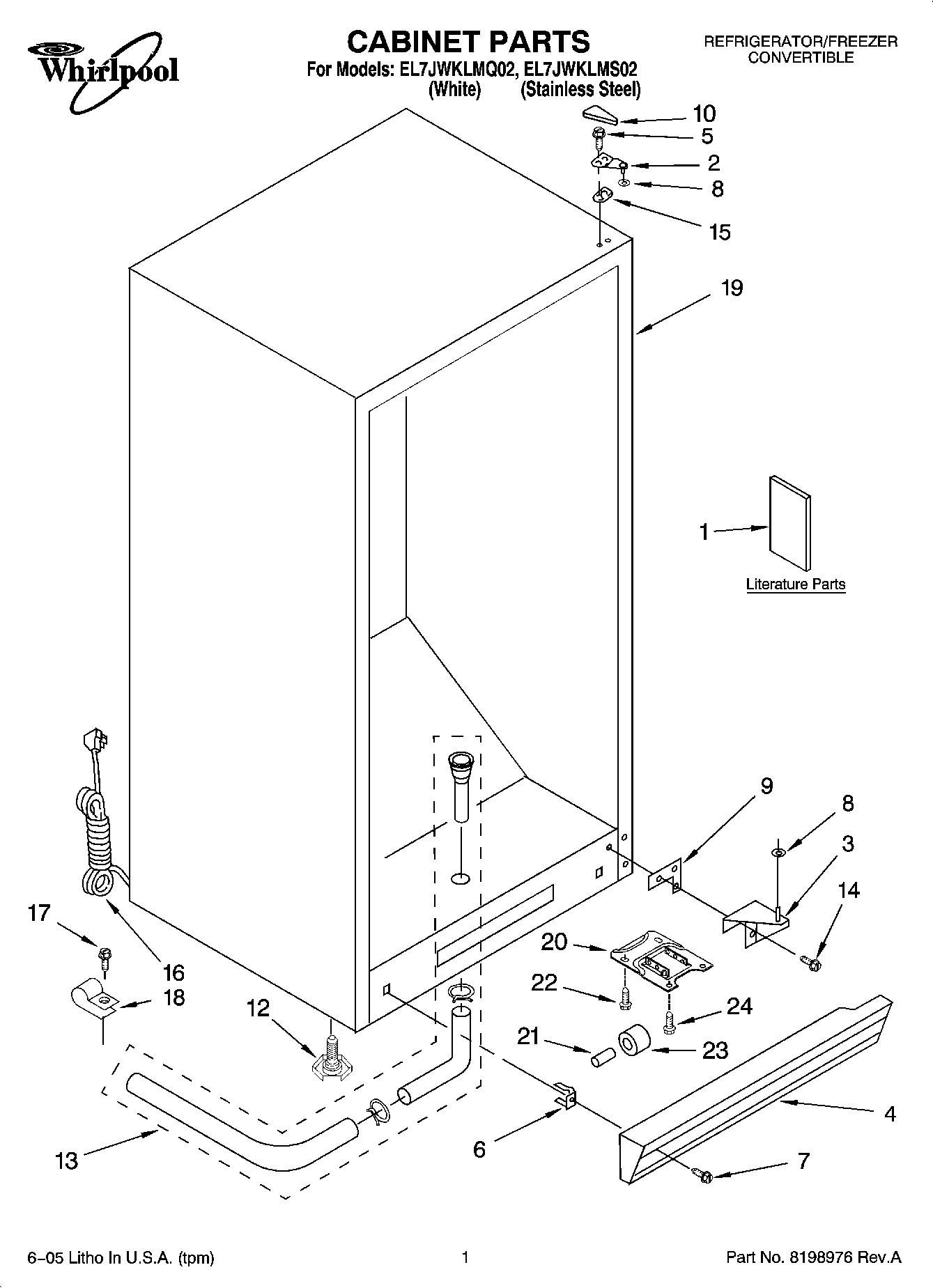

EL7JWKLMS02 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Owners Manual
2	Top, Hinge (White)
3	Bottom Hinge (Black)
3	Bottom Hinge (White)
4	Grille (Includes 6 & 7) (Black)
4	WP4-60461-005 Whirlpool Refrigerator Grille
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
10	Hinge Cover (Black)
10	3-80838-003 Whirlpool Refrigerator Cover
12	W11117769 Whirlpool Refrigerator Leveler
13	Drain Hose
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Power Cord
17	Screw
18	3-25095-011 Whirlpool Tube Clamp
19	Cabinet (Not A Serviceable Part)
20	Bracket, Roller
21	Axle
22	SCREW
23	Roller, Front
24	WP3-24838-048 Whirlpool Refrigerator Screw
