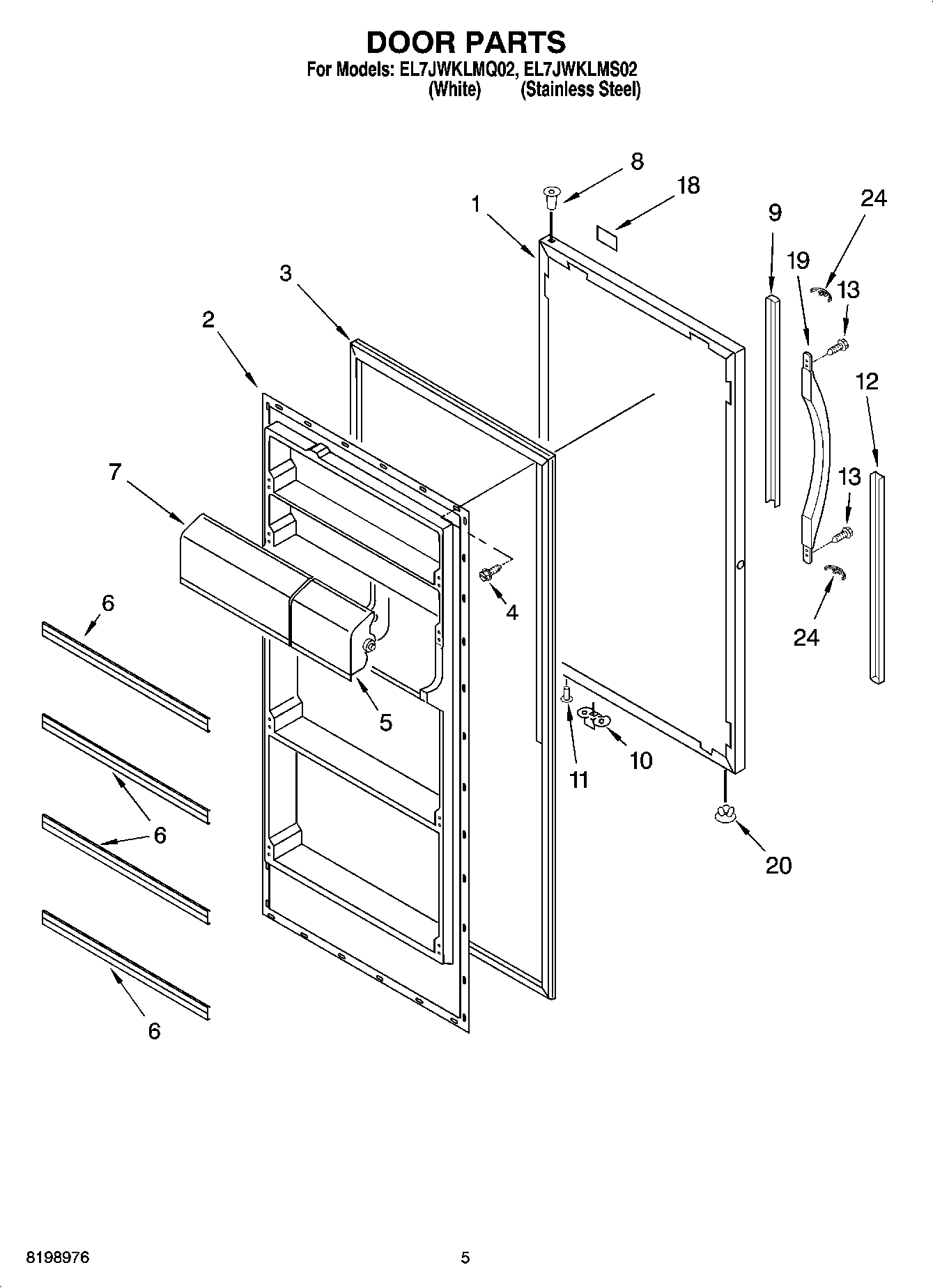

EL7JWKLMS02 03 – DOOR PARTS

Products

PositionProduct
1Exterior Door (Includes Insulation) (Stainless Steel)
1Exterior Door (Includes Insulation) (White)
2Interior Panel
3WP4357142 Whirlpool Refrigerator Door Gasket
3WP4-81048-007 Whirlpool Refrigerator Door Gasket
44390598 Whirlpool Refrigerator Screw
5Door, Short Compartment
6Trim Shelf, Lower
7Door, Compartment (Long)
8Bushing (Black)
9Trim, Top (White)
9Trim, Top (Black)
10Door Stop
114390731 Whirlpool Refrigerator Hinge Bushing
12Trim, Bottom (White)
12Trim, Bottom (Black)
13WP489491 Whirlpool Refrigerator Screw
18WP2213265 Whirlpool Refrigerator Nameplate
18Nameplate (White)
193-82596-002 Whirlpool Refrigerator Handle
19Handle Kit (Black)
203-24898-007 Whirlpool Refrigerator Vent Plug
24Clip, Handle
