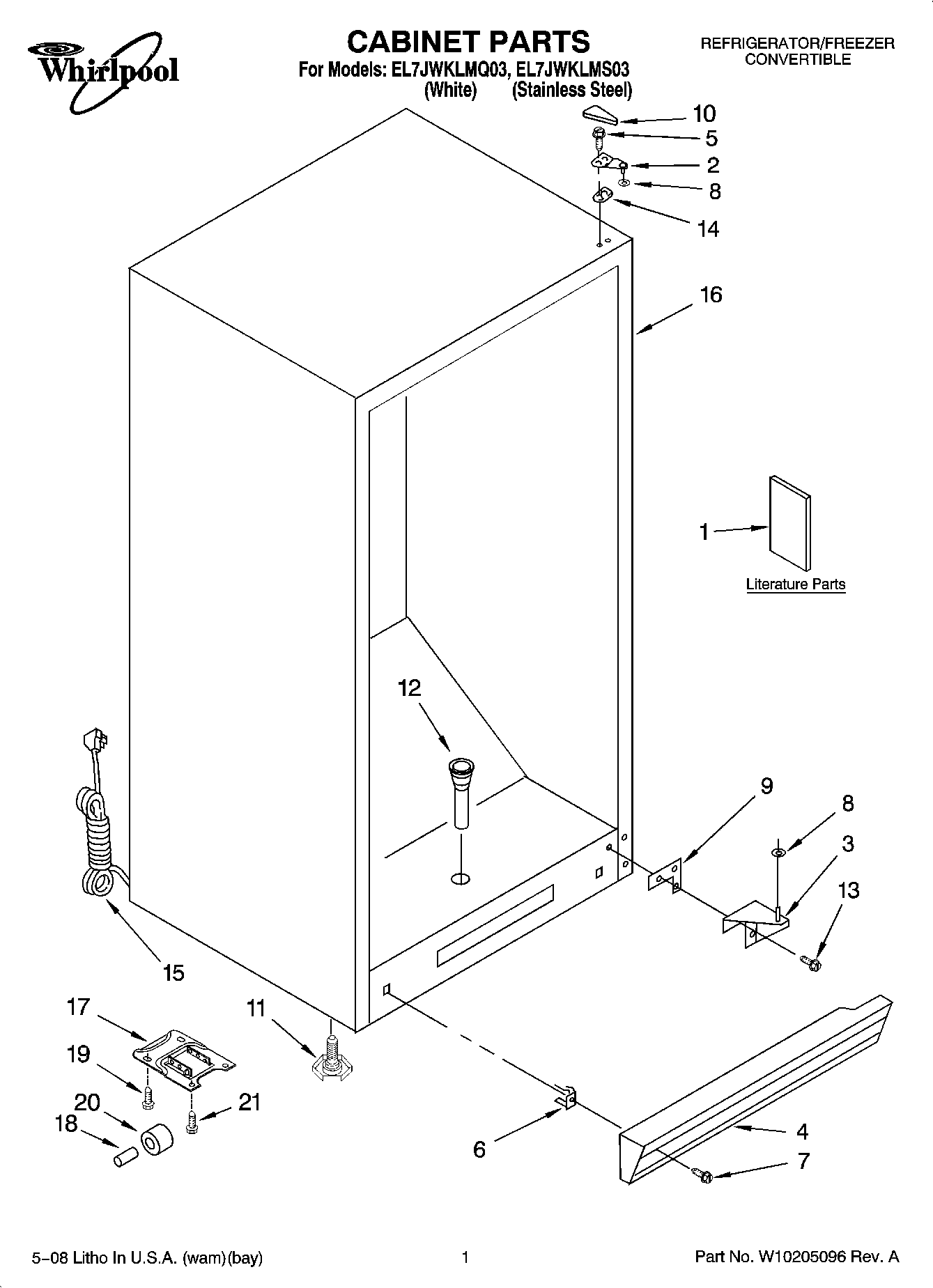

EL7JWKLMS03 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Guide
2	Top, Hinge (White)
2	8210251 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (White)
3	8210235 Whirlpool Refrigerator Door Hinge
4	WP4-60461-005 Whirlpool Refrigerator Grille
4	Grille (Includes 6 & 7) (Black)
6	1-80247-101 Whirlpool Refrigerator Clip
7	Screw (Black)
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	Hinge Cover (Black)
10	3-80838-003 Whirlpool Refrigerator Cover
11	W11117769 Whirlpool Refrigerator Leveler
12	Drain Hose
13	WP8204624 Whirlpool Bolt
14	4390489 Whirlpool Refrigerator Shim
15	Power Cord
16	Cabinet, (Not A Serviceable Part)
17	Bracket, Roller
18	Axle
19	SCREW
20	Roller, Front
21	WP3-24838-048 Whirlpool Refrigerator Screw
