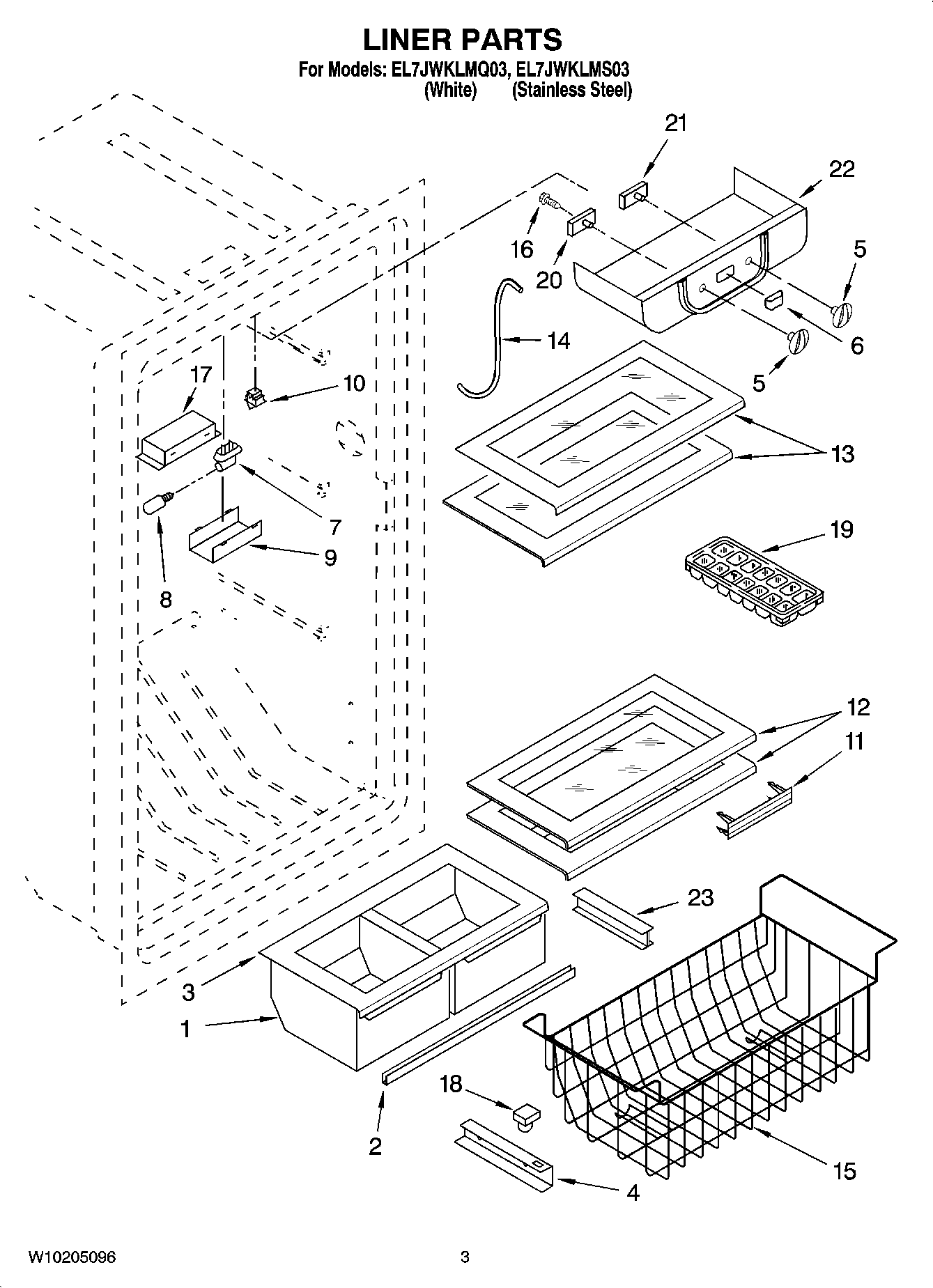

EL7JWKLMS03 02 – LINER PARTSadmin2025-04-26T11:05:34+00:00EL7JWKLMS03 02 – LINER PARTS
Products
| Position | Product |
|---|
| 1 | Pan, Crisper |
| 2 | 2-33516-003 Whirlpool Refrigerator Center Rail |
| 3 | Shelf, Crisper (Lower) |
| 4 | Rail, Basket (Left Side) |
| 4 | 4-60222-002 Whirlpool Refrigerator Rail |
| 5 | Knob, Control |
| 6 | Switch (Illuminated) |
| 7 | Lamp, Socket |
| 8 | RANGE ONLY 40W 120V APPL BULB |
| 9 | Light Shield |
| 10 | W11384469 Whirlpool Door Switch |
| 11 | WP3-80414-103 Whirlpool Refrigerator Vent Plug |
| 12 | Shelf, Middle |
| 13 | Shelf, Top |
| 14 | WP2196003 Whirlpool Refrigerator Bar Riser |
| 15 | Basket, Middle |
| 16 | WP489478 Whirlpool Refrigerator Screw |
| 17 | Bracket, Light |
| 18 | Stop, Basket |
| 19 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 20 | Control, Temp. (RC) |
| 21 | Control, Temp. (FC) |
| 22 | Housing, Control |
| 23 | 3-34715-004 Whirlpool Refrigerator Support |
