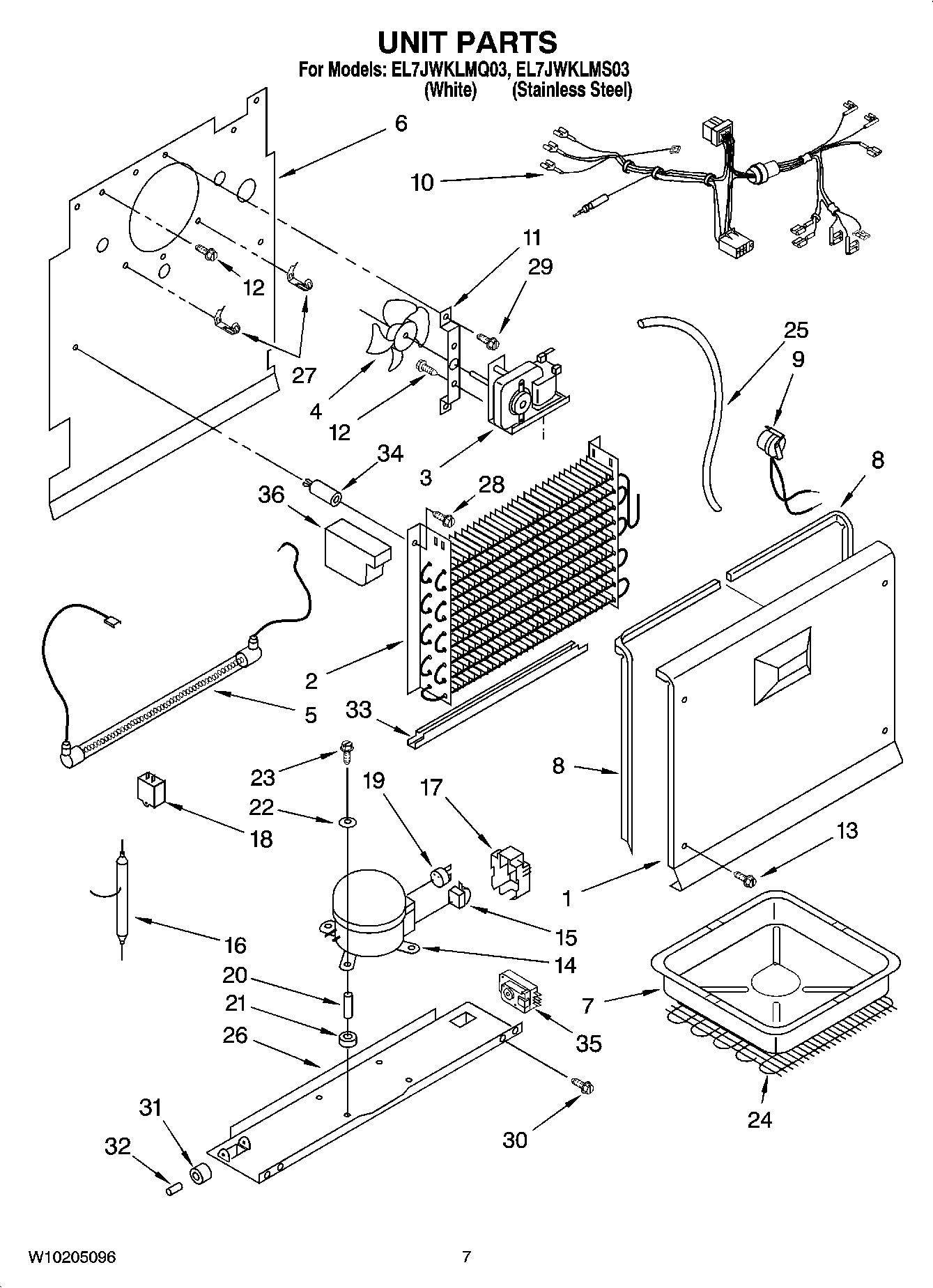

EL7JWKLMS03 04 – UNIT PARTS, OPTIONAL PARTS

EL7JWKLMS03 04 – UNIT PARTS, OPTIONAL PARTS

Written by

in

EL7JWKLMS03 04 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
Parts Not Illustrated and Optional Parts (Not Included)
Customer Touch-Up Material
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
REFINISHING MATERIAL
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI39683A6
212643 Whirlpool Refrigerator Permagum Sealer
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3MOTOR-EVAP
4BLADE-FAN
58201749 Whirlpool Refrigerator Defrost Heater
6Plate, Evaporator Mount
7Drain Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Harness, Unit
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13WP3-24004-109 Whirlpool Refrigerator Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
183-35956-013 Whirlpool Refrigerator Capacitor
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24Condenser
25Exchanger, Heat
26Compressor Pan (White)
27Thermostat, Clip
28WP489478 Whirlpool Refrigerator Screw
29WP3400094 Whirlpool Screw
30SCREW
313-60315-001 Whirlpool Refrigerator CAB Roller
32Axle
33Shield, Heater
34Grommet
35WP3-81329 Whirlpool Refrigerator Defrost Timer
361-80252-101 Whirlpool Refrigerator Evaporator Block
36REFRIGERANT CHARGE 4.107 oz. (R-134A)
