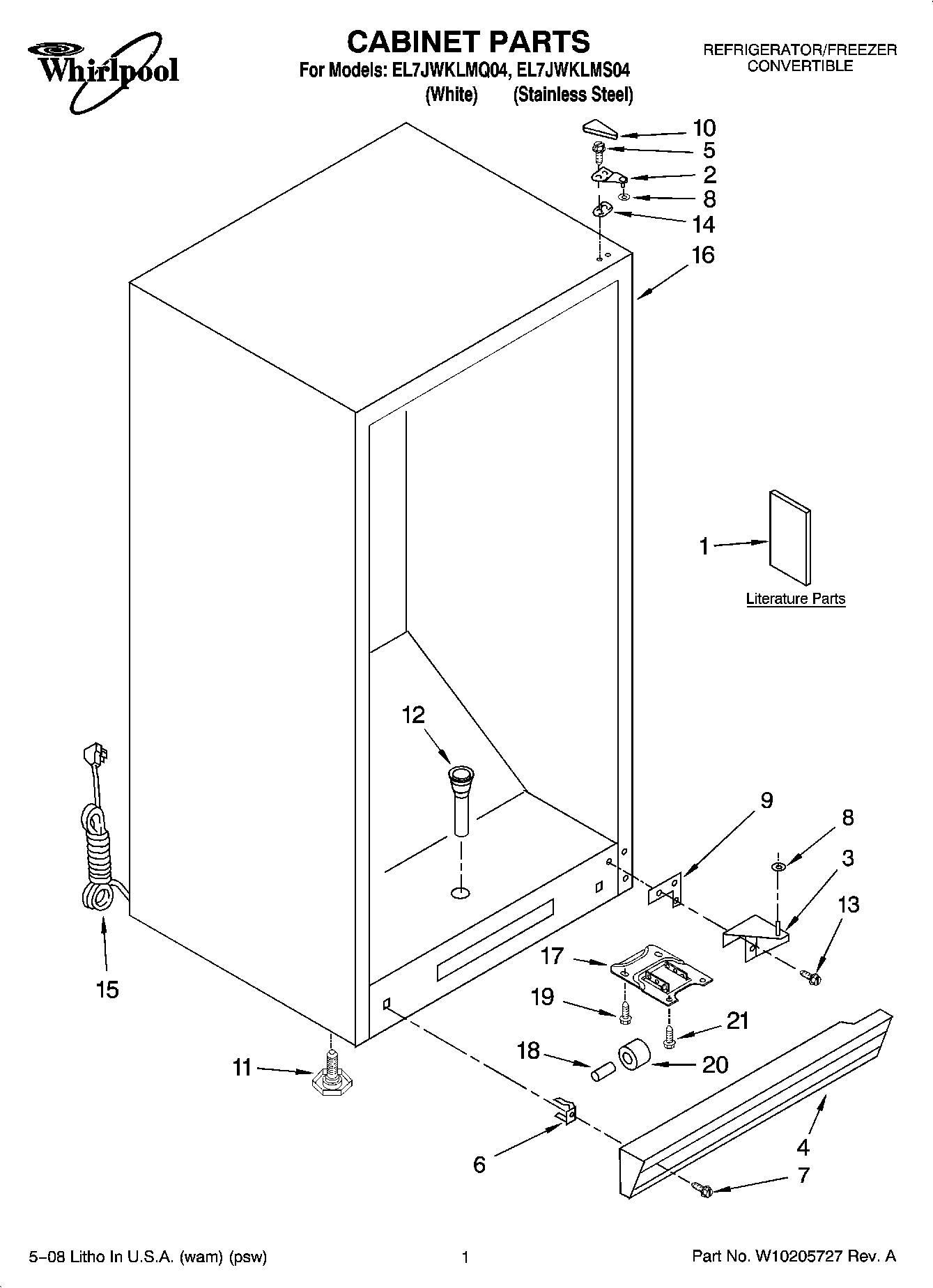

EL7JWKLMS04 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Guide
2	Top, Hinge (White)
2	8210251 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (White)
3	8210235 Whirlpool Refrigerator Door Hinge
4	WP4-60461-005 Whirlpool Refrigerator Grille
4	Grille (Includes 6 & 7) (Black)
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
7	Screw (Black)
8	W10851331 Whirlpool Refrigerator Washer
10	3-80838-003 Whirlpool Refrigerator Cover
10	Hinge Cover (Black)
11	W11117769 Whirlpool Refrigerator Leveler
12	Drain Hose
13	WP8204624 Whirlpool Bolt
14	4390489 Whirlpool Refrigerator Shim
15	Power Cord
16	Cabinet, (Not A Serviceable Part)
17	Bracket, Roller
18	Axle
19	SCREW
20	Roller, Front
21	WP3-24838-048 Whirlpool Refrigerator Screw
