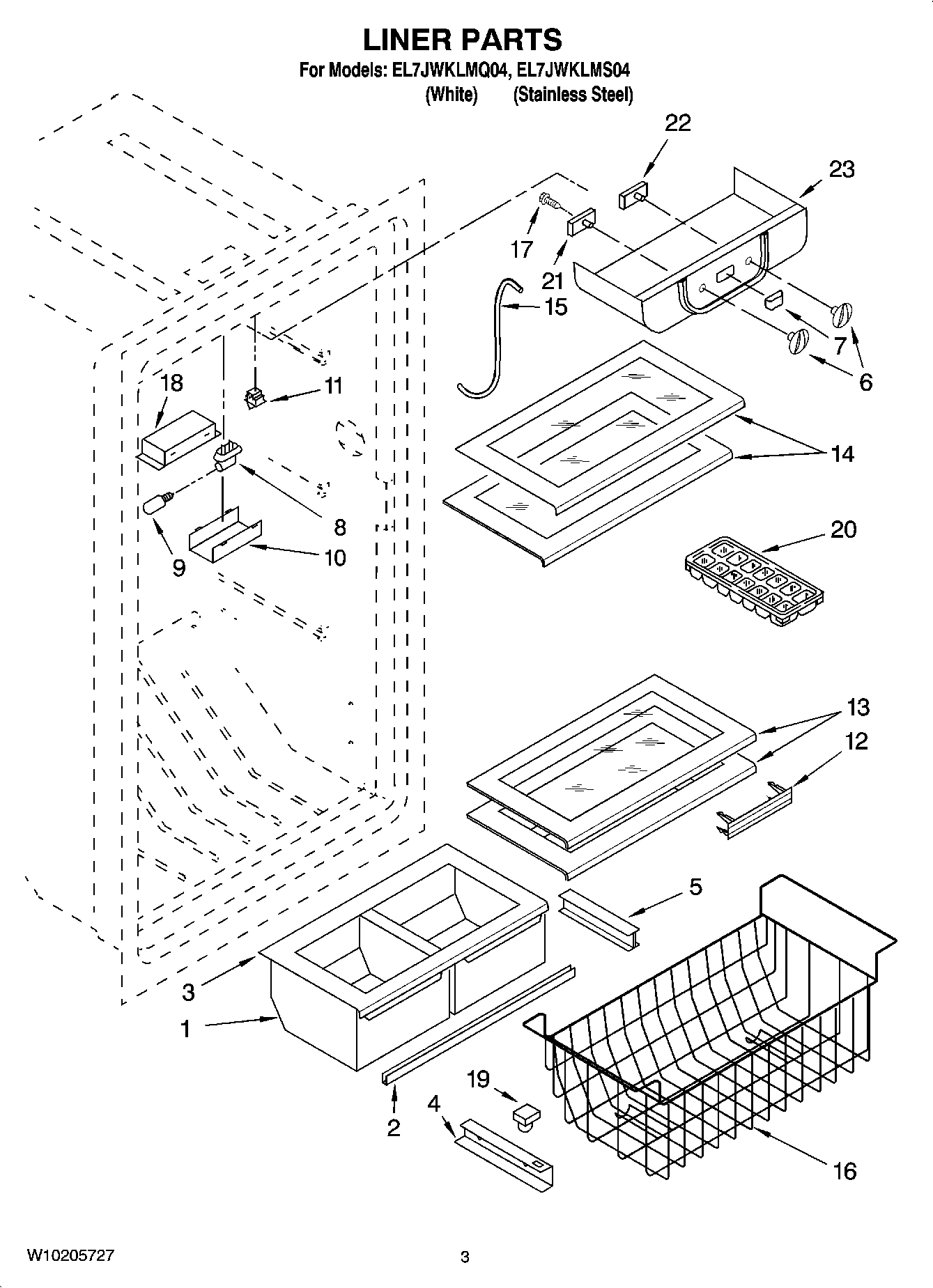

EL7JWKLMS04 02 – LINER PARTS

Products

Position	Product
1	Pan, Crisper
2	3-34715-004 Whirlpool Refrigerator Support
3	Shelf, Crisper (Lower)
4	4-60222-002 Whirlpool Refrigerator Rail
4	Rail, Basket (Left Side)
5	2-33516-003 Whirlpool Refrigerator Center Rail
6	Knob, Control
7	Switch (Illuminated)
8	Lamp, Socket
9	RANGE ONLY 40W 120V APPL BULB
10	Light Shield
11	W11384469 Whirlpool Door Switch
12	WP3-80414-103 Whirlpool Refrigerator Vent Plug
13	Shelf, Middle
14	Shelf, Top
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Basket, Middle
17	WP489478 Whirlpool Refrigerator Screw
18	Bracket, Light
19	Stop, Basket
20	WP841180A Whirlpool Microwave Glass Turntable Tray
21	Control, Temp. (RC)
22	Control, Temp. (FC)
23	Housing, Control
