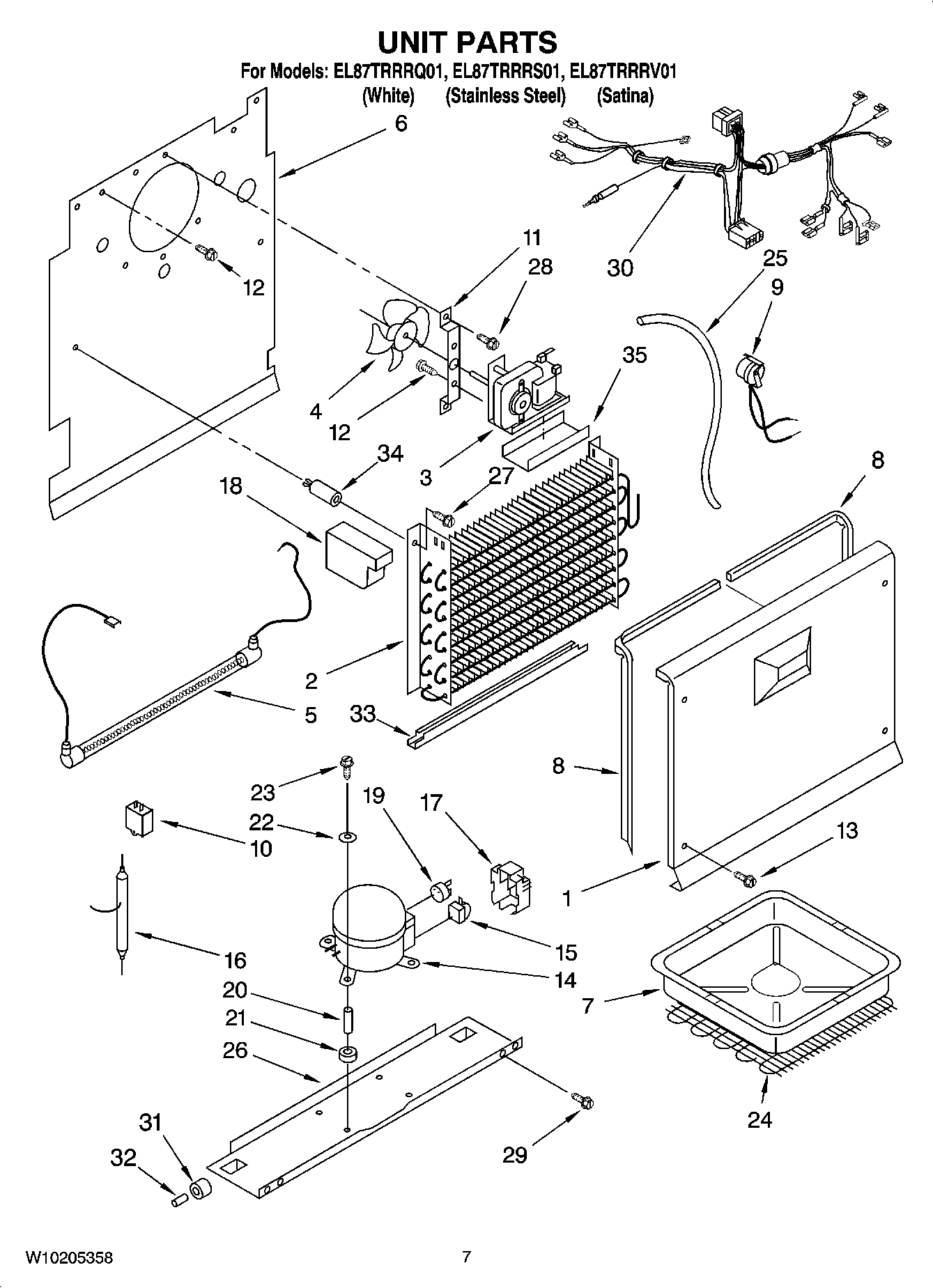

EL87TRRRQ01 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

EL87TRRRQ01 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

EL87TRRRQ01 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
Customer Touch-Up Material
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Miscellaneous
REFINISHING MATERIAL
1Cover, Evaporator
2Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7Drain Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
108210239 Whirlpool Refrigerator Capacitor
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13WP3-24004-109 Whirlpool Refrigerator Screw
14W10237328 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
17Cover
181-80252-101 Whirlpool Refrigerator Evaporator Block
19Overload
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24CONDENSER
25WP4357245 Whirlpool Refrigerator Exchanger
26Compressor Pan
27WP489478 Whirlpool Refrigerator Screw
28WP3400094 Whirlpool Screw
29WP3-24838-048 Whirlpool Refrigerator Screw
308210301 Whirlpool Wire Harness
313-60315-001 Whirlpool Refrigerator CAB Roller
32Axle
33Shield Heater
34Grommet
354357128 Whirlpool Refrigerator Motor Bracket
35REFRIGERANT CHARGE 4.107 oz. (R-134A)
