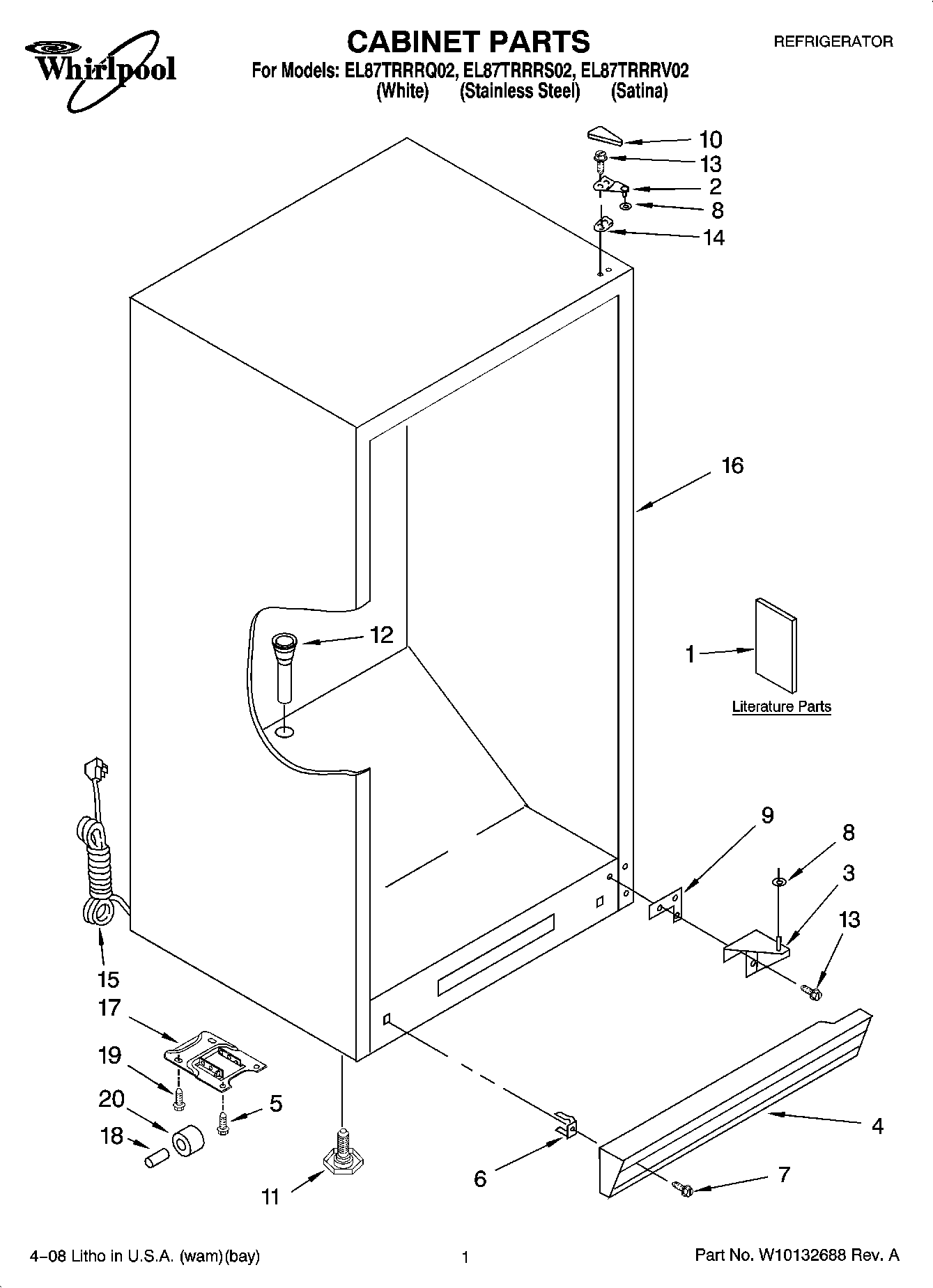

EL87TRRRQ02 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Owners Manual
2	8210251 Whirlpool Refrigerator Door Hinge
2	2-81016-105 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (Black)
3	8210238 Whirlpool Refrigerator Door Hinge
4	WP4-60461-005 Whirlpool Refrigerator Grille
4	Grille (Includes 6 & 7) (Black)
5	WP3-24838-048 Whirlpool Refrigerator Screw
6	Clip, Grille
7	Screw
8	W10851331 Whirlpool Refrigerator Washer
10	3-80838-003 Whirlpool Refrigerator Cover
10	Hinge Cover (Black)
11	W11117769 Whirlpool Refrigerator Leveler
12	Grommet, Drain
13	WP8204624 Whirlpool Bolt
14	4390489 Whirlpool Refrigerator Shim
15	Power Cord
16	Cabinet, (Not A Serviceable Part)
17	Bracket, Roller
18	Axle
19	SCREW
20	3-60315-001 Whirlpool Refrigerator CAB Roller
