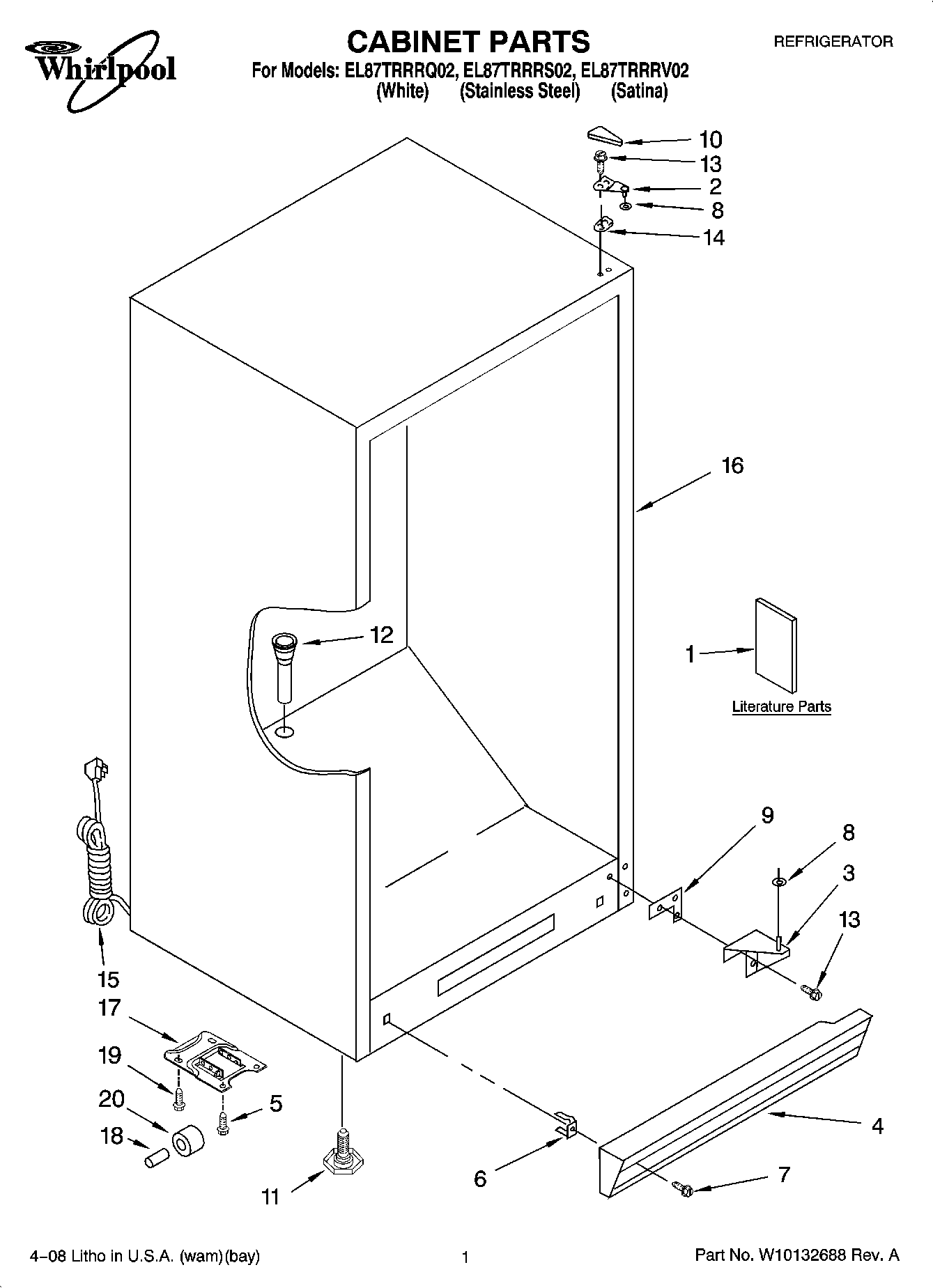

EL87TRRRS02 01 – CABINET PARTS

EL87TRRRS02 01 – CABINET PARTS

Written by

in

EL87TRRRS02 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Owners Manual
28210251 Whirlpool Refrigerator Door Hinge
22-81016-105 Whirlpool Refrigerator Door Hinge
3Bottom Hinge (Black)
38210238 Whirlpool Refrigerator Door Hinge
4WP4-60461-005 Whirlpool Refrigerator Grille
4Grille (Includes 6 & 7) (Black)
5WP3-24838-048 Whirlpool Refrigerator Screw
6Clip, Grille
7Screw
8W10851331 Whirlpool Refrigerator Washer
103-80838-003 Whirlpool Refrigerator Cover
10Hinge Cover (Black)
11W11117769 Whirlpool Refrigerator Leveler
12Grommet, Drain
13WP8204624 Whirlpool Bolt
144390489 Whirlpool Refrigerator Shim
15Power Cord
16Cabinet, (Not A Serviceable Part)
17Bracket, Roller
18Axle
19SCREW
203-60315-001 Whirlpool Refrigerator CAB Roller
