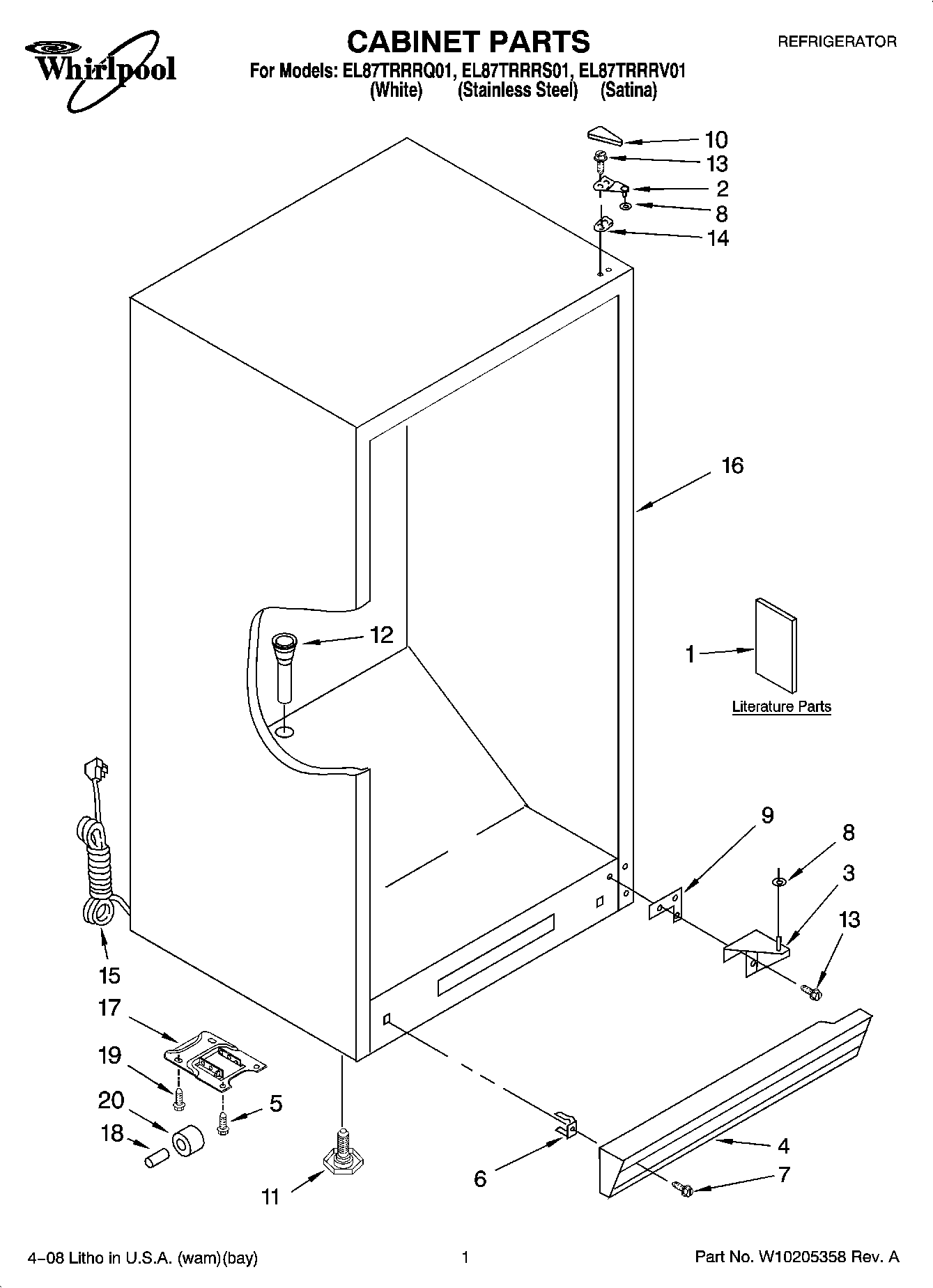

EL87TRRRV01 01 – CABINET PARTS

EL87TRRRV01 01 – CABINET PARTS

Written by

in

EL87TRRRV01 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1Energy Guide/Tag
28210251 Whirlpool Refrigerator Door Hinge
22-81016-105 Whirlpool Refrigerator Door Hinge
38210238 Whirlpool Refrigerator Door Hinge
3Bottom Hinge (Black)
4WP4-60461-005 Whirlpool Refrigerator Grille
4Grille (Includes 6 & 7) (Black)
5WP3-24838-048 Whirlpool Refrigerator Screw
61-80247-101 Whirlpool Refrigerator Clip
7Screw (Black)
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
10Hinge Cover (Black)
103-80838-003 Whirlpool Refrigerator Cover
11W11117769 Whirlpool Refrigerator Leveler
12Grommet, Drain
13WP8204624 Whirlpool Bolt
144390489 Whirlpool Refrigerator Shim
15Power Cord
16Cabinet, (Not A Serviceable Part)
17Bracket, Roller
18Axle
19SCREW
203-60315-001 Whirlpool Refrigerator CAB Roller
