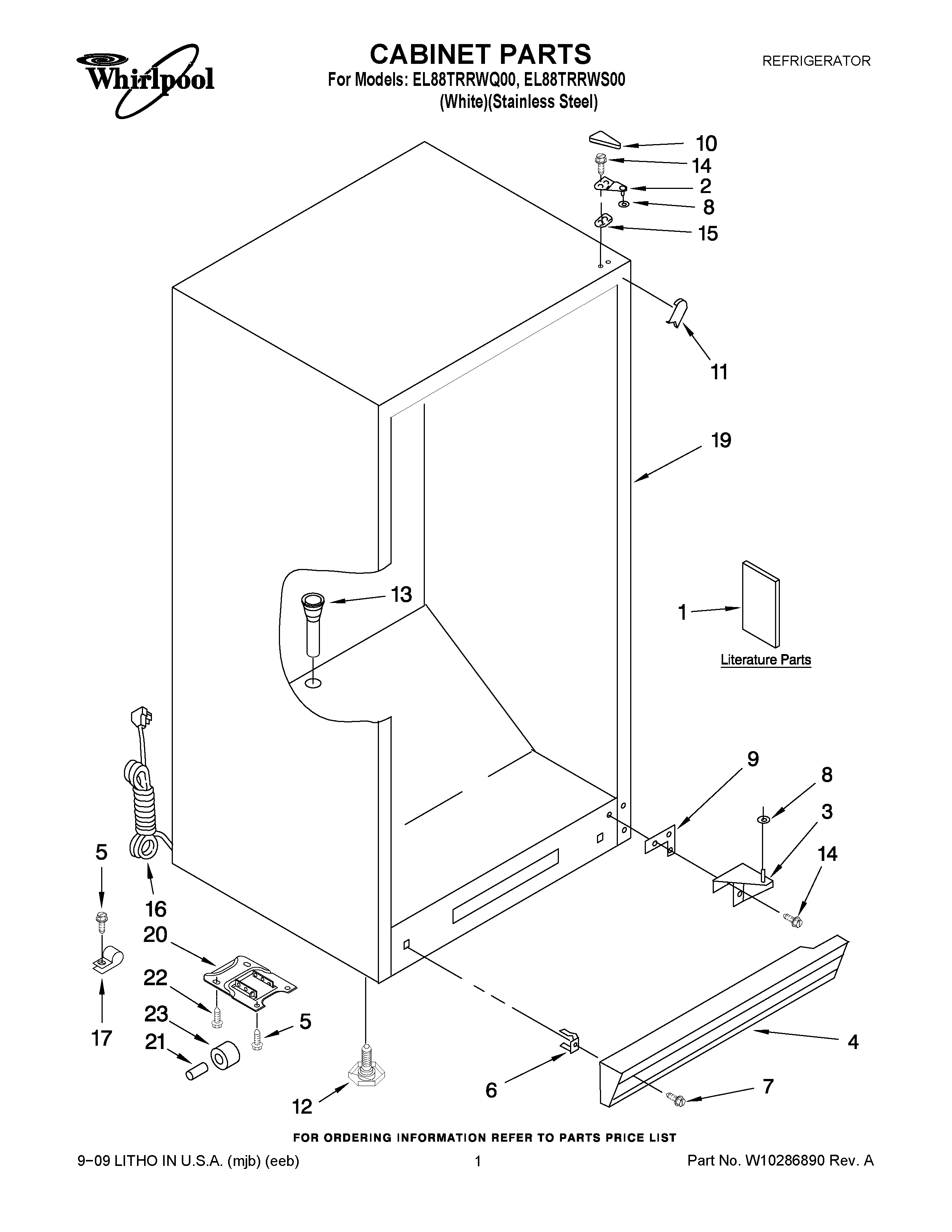

EL88TRRWQ00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	ENERGY GUIDE/TAG
2	W10260541 Whirlpool Refrigerator Door Hinge
2	2-81016-105 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (White)
3	BOTTOM HINGE (BLACK)
4	WP4-60461-010 Whirlpool Refrigerator Grille
4	WP4-60461-005 Whirlpool Refrigerator Grille
5	WP3-24838-048 Whirlpool Refrigerator Screw
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	3-80838-003 Whirlpool Refrigerator Cover
10	3-80838-007 Whirlpool Refrigerator Cover
11	Filler, Corner (Black)
11	8210227 Whirlpool Refrigerator Filler
12	LEG, LEVELLER (BLACK)
12	LEG, LEVELLER (WHITE)
13	Grommet, Drain
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Power Cord
17	3-25095-011 Whirlpool Tube Clamp
19	CABINET (NOT A SERVICEABLE PART)
20	Bracket, Roller
21	Axle
22	SCREW
23	3-60315-001 Whirlpool Refrigerator CAB Roller
