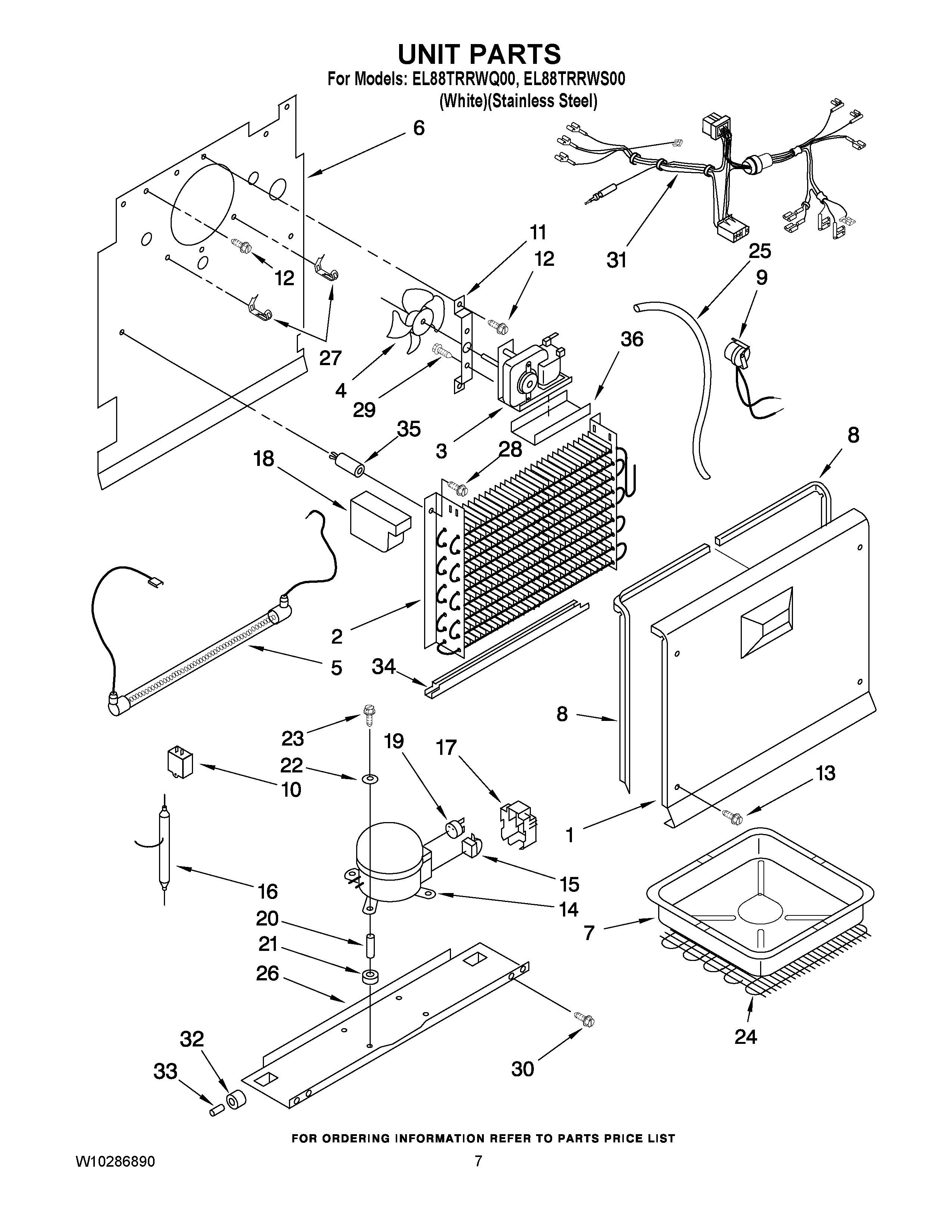

EL88TRRWQ00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	Cover, Evaporator
2	Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	PLATE, EVAPORATOR MOUNT
7	4-82689-001 Whirlpool Refrigerator Drip Pan
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	8210239 Whirlpool Refrigerator Capacitor
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Compressor (Includes Items 2, 3, 4, 5, 8 & 9)
15	4356716 Whirlpool Refrigerator Start Relay
16	W10843121 Whirlpool Refrigerator Tube
17	WP2162358 Whirlpool Refrigerator Terminal Cover
18	1-80252-101 Whirlpool Refrigerator Evaporator Block
19	2264602 Whirlpool Refrigerator Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	CONDENSER MOTOR
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Compressor Pan
26	COMPRESSOR PAN (WHITE)
27	Thermostat, Clip
28	WP489491 Whirlpool Refrigerator Screw
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	8210301 Whirlpool Wire Harness
32	3-60315-001 Whirlpool Refrigerator CAB Roller
33	Axle
34	Shield, Heater
35	Grommet
36	4357128 Whirlpool Refrigerator Motor Bracket
