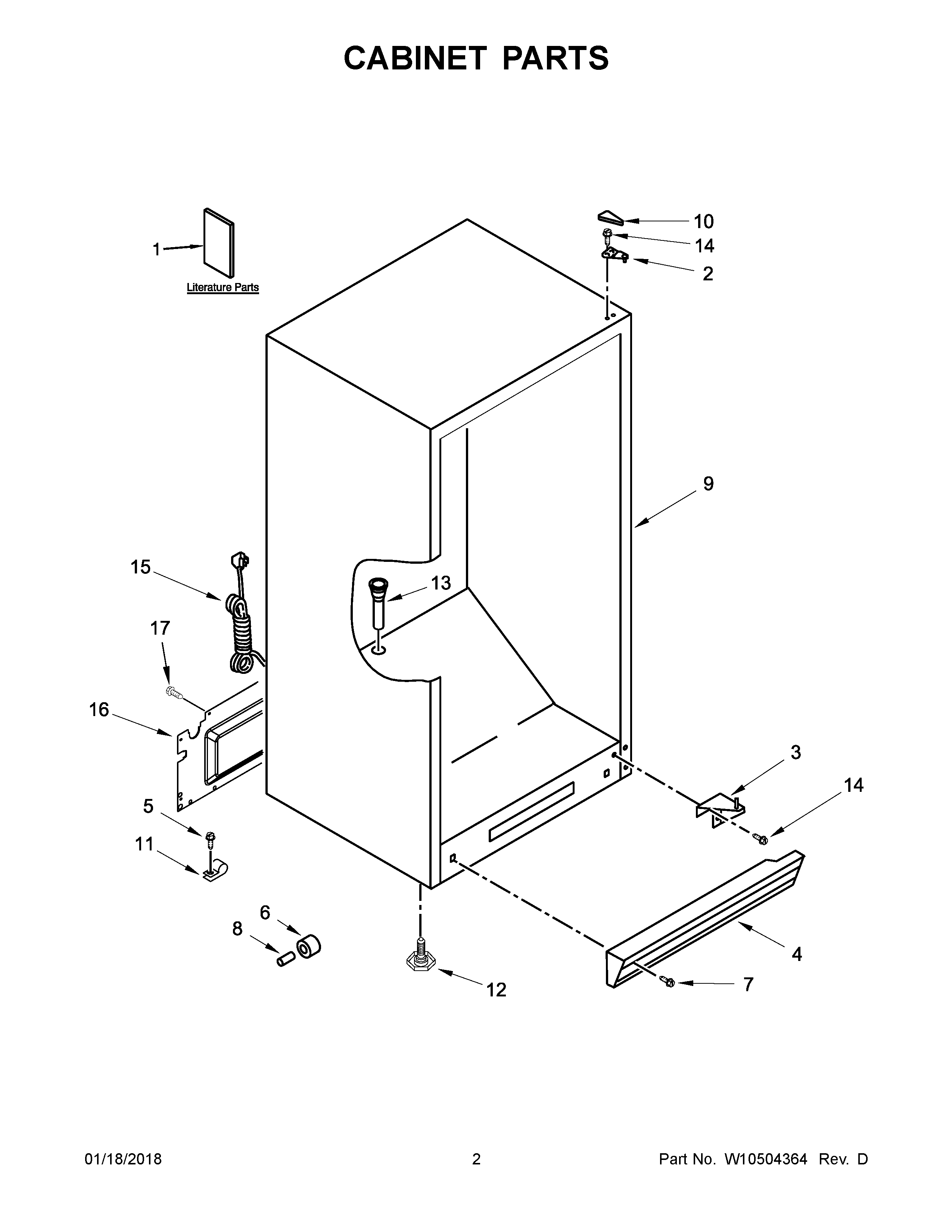

EL88TRRWQ03 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNERS MANUAL
2A	TOP HINGE (BLACK)
2	TOP HINGE (WHITE)
3A	BOTTOM HINGE (SILVER)
3	BOTTOM HINGE (WHITE)
4A	GRILLE (SILVER)
4	GRILLE (WHITE)
5	SCREW
6	ROLLER, FRONT
7	SCREW
8	AXLE
9	CABINET (NOT A SERVICEABLE PART)
10	COVER, HINGE (WHITE)
10A	COVER, HINGE (SILVER)
11	CLAMP
12	LEG, LEVELER
13	GROMMET, DRAIN
14	SCREW
15	CORD, POWER
16	COVER, UNIT
17	SCREW
