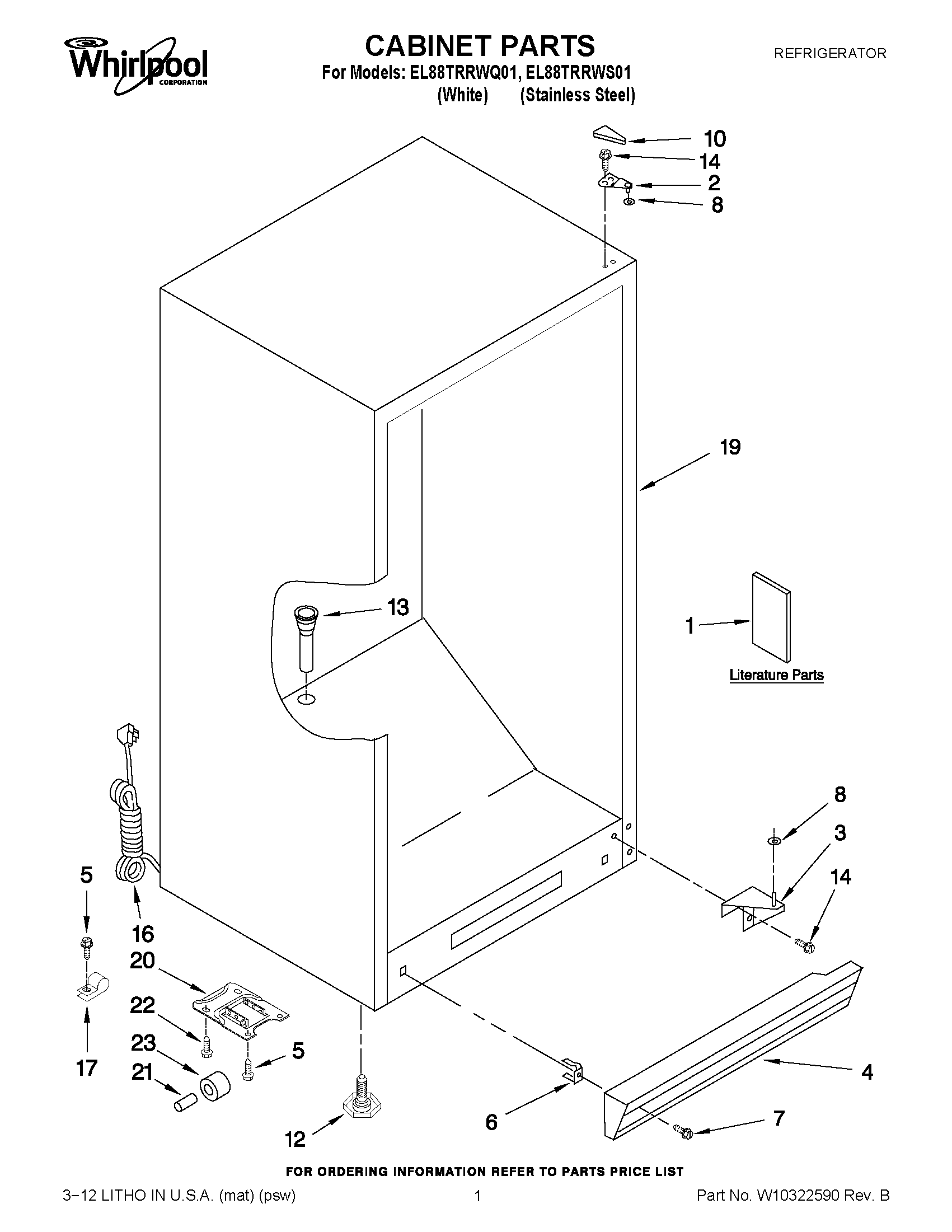

EL88TRRWS01 01 – CABINET PARTS

Products

Position	Product
1	OWNERS MANUAL
1	ENERGY GUIDE/TAG
2	W10260541 Whirlpool Refrigerator Door Hinge
2	2-81016-105 Whirlpool Refrigerator Door Hinge
3	BOTTOM HINGE (WHITE)
3	BOTTOM HINGE (SILVER)
4	WP4-60461-005 Whirlpool Refrigerator Grille
4	WP4-60461-010 Whirlpool Refrigerator Grille
5	WP3-24838-048 Whirlpool Refrigerator Screw
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	3-80838-007 Whirlpool Refrigerator Cover
10	3-80838-003 Whirlpool Refrigerator Cover
12	WP3-82710-001 Whirlpool Refrigerator Leveler
13	Grommet, Drain
14	WP8204624 Whirlpool Bolt
16	Power Cord
17	3-25095-011 Whirlpool Tube Clamp
19	CABINET (NOT A SERVICEABLE PART)
20	Bracket, Roller
21	Axle
22	SCREW
23	3-60315-001 Whirlpool Refrigerator CAB Roller
