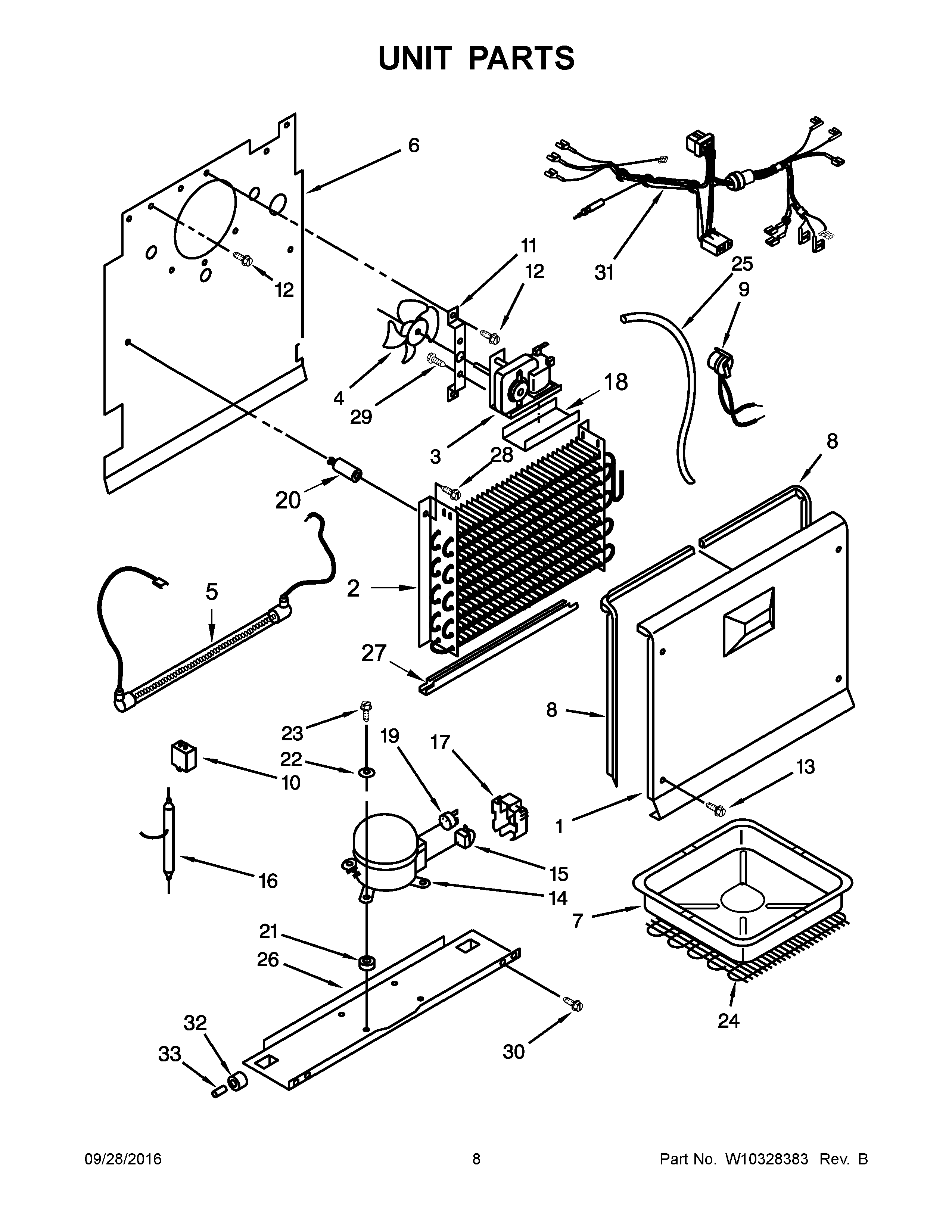

EL88TRRWS02 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	Evaporator
3	MOTOR-EVAP
4	BLADE-FAN
5	WP3-80405-003 Whirlpool Refrigerator Heater
6	PLATE, EVAPORATOR MOUNT
7	4-82689-001 Whirlpool Refrigerator Drip Pan
8	4390664 Whirlpool Refrigerator Gasket
8A	4390663 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Capacitor
11	BRACKET, MOTOR
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	COMPRESSOR
15	W11673287 Whirlpool Starter Relay
16	W10843121 Whirlpool Refrigerator Tube
17	WP2162358 Whirlpool Refrigerator Terminal Cover
18	4357128 Whirlpool Refrigerator Motor Bracket
19	61004883 Whirlpool Refrigerator Overload
20	Grommet
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	CONDENSER
25	WP4357245 Whirlpool Refrigerator Exchanger
26A	Compressor Pan
26	COMPRESSOR PAN (WHITE)
27	Shield, Heater
28	WP489491 Whirlpool Refrigerator Screw
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	HARNESS, UNIT
32	3-60315-001 Whirlpool Refrigerator CAB Roller
33	Axle
