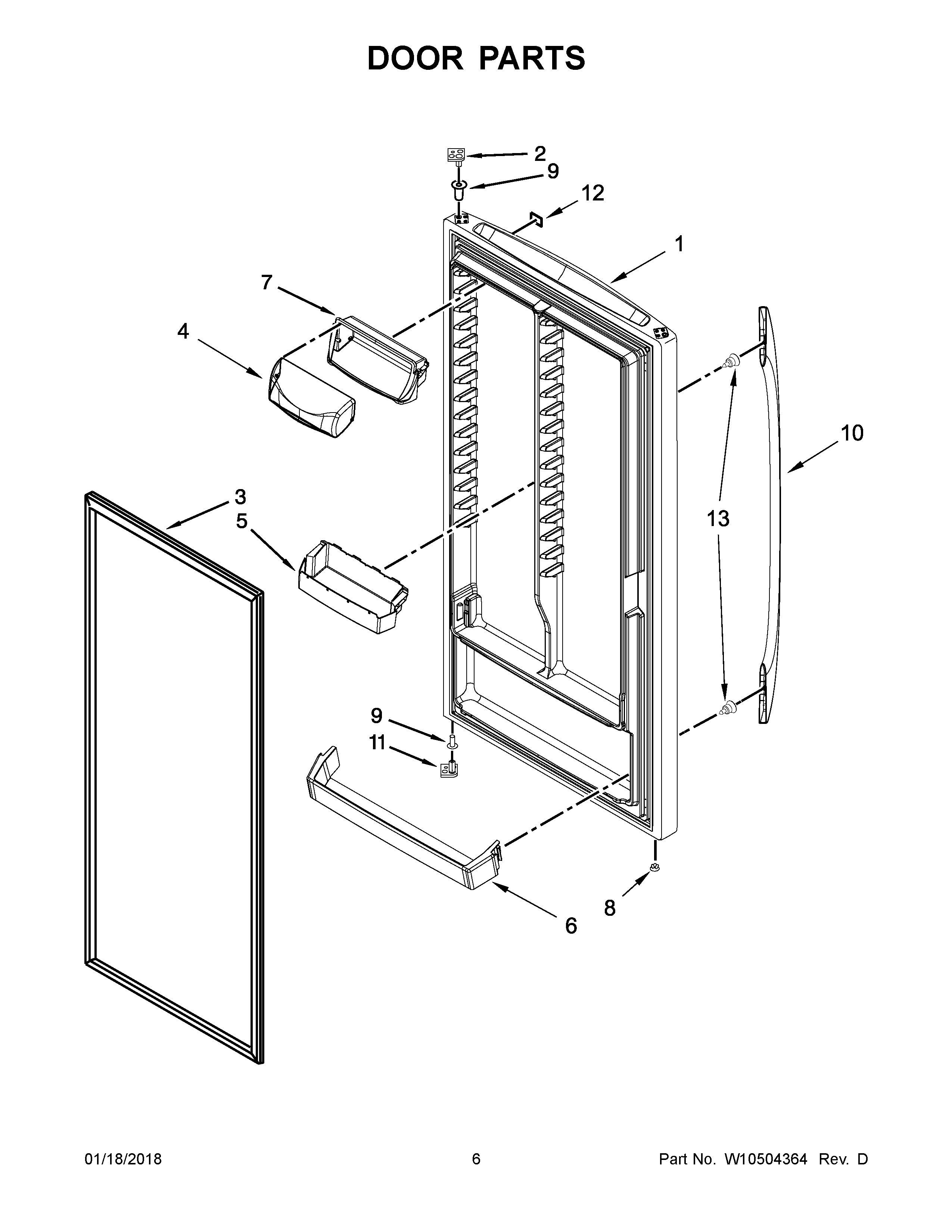

EL88TRRWS03 04 – DOOR PARTS

Products

PositionProduct
1EXTERIOR DOOR (INCLUDES GASKET) (WHITE)
1AEXTERIOR DOOR (INCLUDES GASKET) (STAINLESS STEEL)
2STOP, DOOR (BOTTOM ) (NATURAL)
2ASTOP, DOOR (TOP) (SILVER)
3AGASKET (SILVER)
3GASKET (WHITE)
4DOOR, COMPARTMENT
5BIN, DOOR
6RAIL, DOOR (LOWER)
7HOUSING, DAIRY COMPARTMENT
8PLUG, VENT
9BUSHING, HINGE (WHITE)
9ABUSHING, HINGE (SILVER)
10HANDLE (WHITE)
10AHANDLE (BRUSHED ALUMINUM)
11STOP, DOOR (TOP) (NATURAL)
12AW11178521 Whirlpool Dishwasher Nameplate
13WPW10661886 Whirlpool Refrigerator Door Handle Screw
