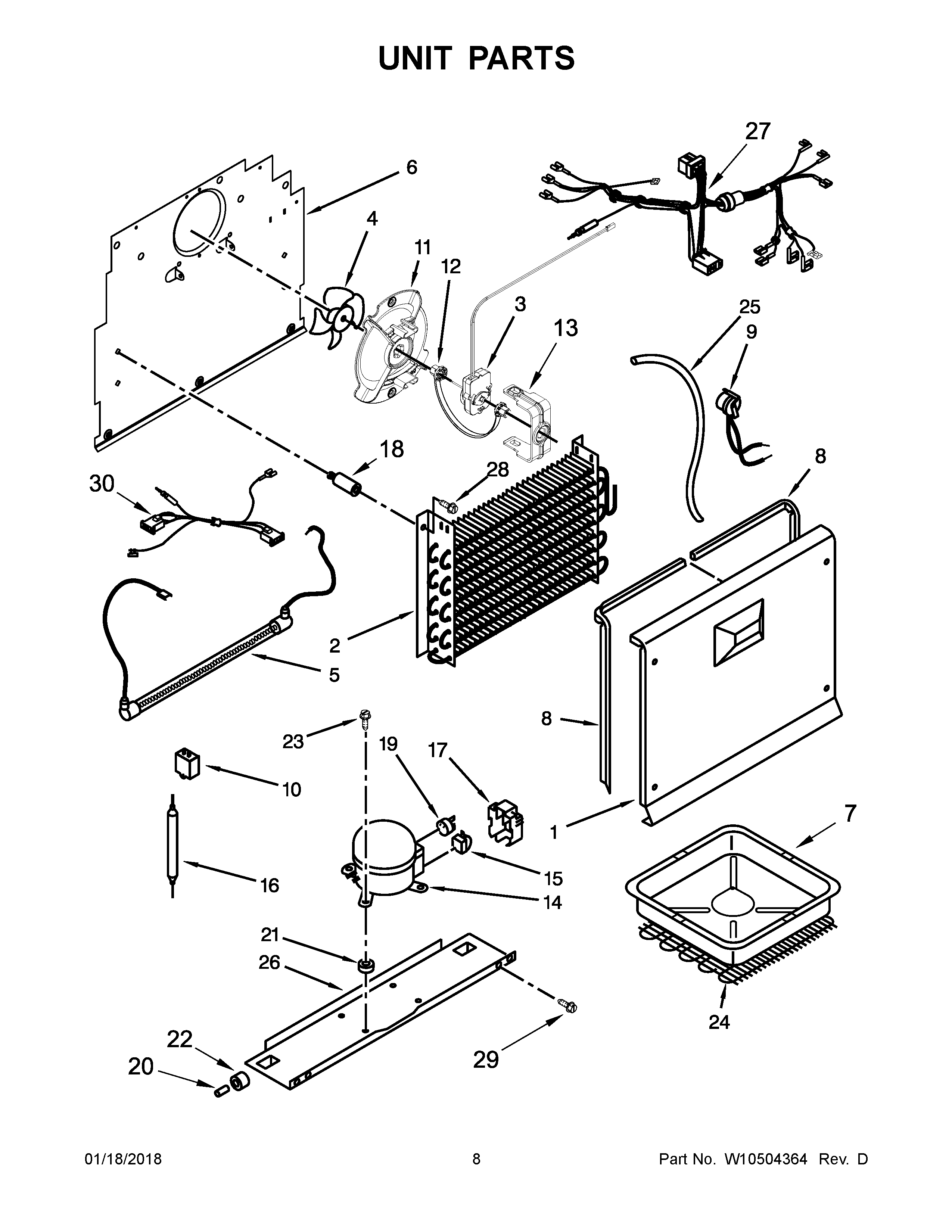

EL88TRRWS03 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	EVAPORATOR
3	WPW10236142 Whirlpool Evaporator Fan Motor
4	WP2169142 Whirlpool Fan Blade
5	WPW10486820 Whirlpool Refrigerator Heater
6	W10452115 Whirlpool Refrigerator Heat Shield
7	PAN, DRAIN
8A	GASKET, COVER EVAPORATOR (RIGHT SIDE)
8	GASKET, COVER EVAPORATOR (LEFT SIDE)
9	WPW10491891 Whirlpool Refrigerator Bimetallic Defrost Assembly
10	CAPACITOR
11	W10457575 Whirlpool Refrigerator Evaporator Cover
12	W11690160 Whirlpool Grommet
13	CLIP, EVAPORATOR MOTOR
14	COMPRESSOR
15	RELAY, START
16	W10843121 Whirlpool Refrigerator Tube
17	COVER
18	GROMMET
19	OVERLOAD
20	AXLE
21	WP2163786 Whirlpool Refrigerator Grommet
22	ROLLER, FRONT
23	BOLT, COMPRESSOR
24	CONDENSER
26	PAN, COMPRESSOR
27	HARNESS, UNIT
28	SCREW
29	SCREW
30	HARNESS, FAN
