EL8ATRRRQ02 01 – CABINET PARTS

EL8ATRRRQ02 01 – CABINET PARTS

Written by

in

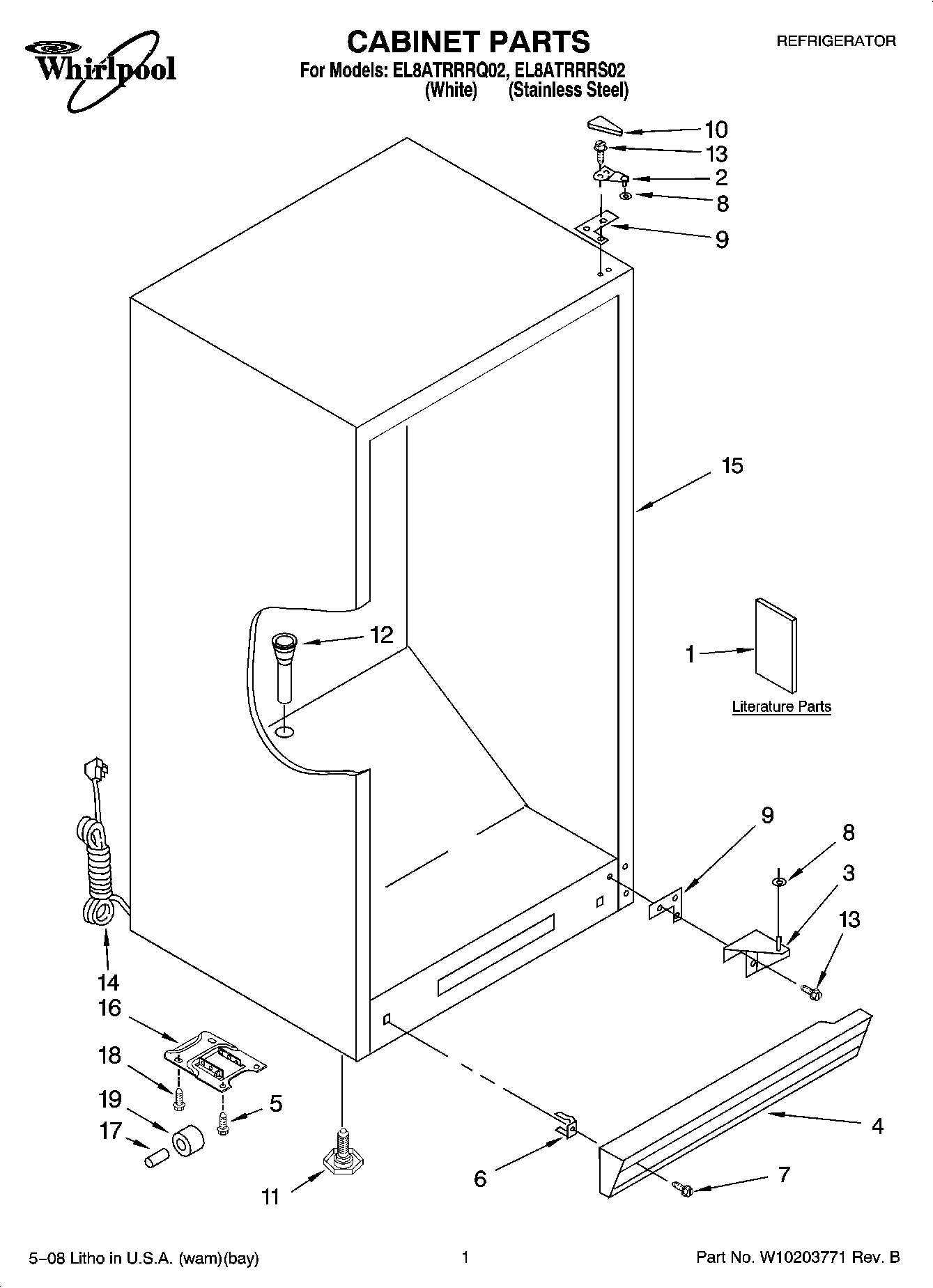

EL8ATRRRQ02 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide/Tag
1Owners Manual
28210251 Whirlpool Refrigerator Door Hinge
22-81016-105 Whirlpool Refrigerator Door Hinge
38210238 Whirlpool Refrigerator Door Hinge
38210235 Whirlpool Refrigerator Door Hinge
4WP4-60461-005 Whirlpool Refrigerator Grille
4Grille (Includes 6 & 7) (Black)
5WP3-24838-048 Whirlpool Refrigerator Screw
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
7Screw (Black)
8W10851331 Whirlpool Refrigerator Washer
94390489 Whirlpool Refrigerator Shim
10Hinge Cover (Black)
103-80838-003 Whirlpool Refrigerator Cover
11WP3-82710-001 Whirlpool Refrigerator Leveler
11W11117769 Whirlpool Refrigerator Leveler
12Grommet, Drain
13WP8204624 Whirlpool Bolt
14Power Cord
15Cabinet, (Not A Serviceable Part)
16Bracket, Roller
17Axle
18SCREW
193-60315-001 Whirlpool Refrigerator CAB Roller
