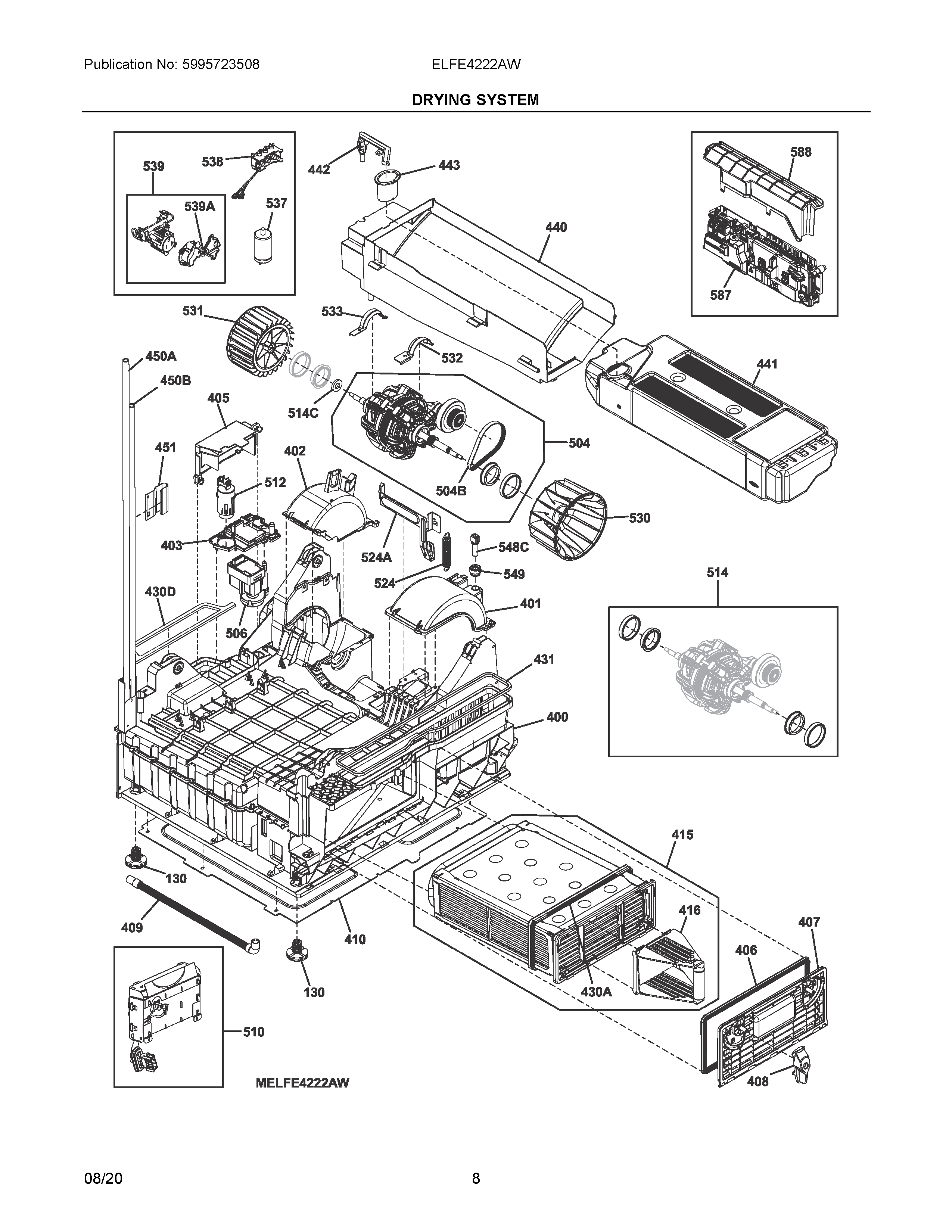

ELFE4222AW 05 – DRYING SYSTEM

Products

Position	Product
NI	WCI A19709101
NI	A17667301 Frigidaire Harness
NI	WCI A01523002
NI	WCI A17667101
NI	WCI A17667201
NI	5022432900 Frigidaire Nut
NI	A16314102 Frigidaire Harness
NI	WCI A17667401
130	899647060471 Frigidaire Leg
400	136600042 Frigidaire Basement
401	136604102 Frigidaire Cover
402	136604205 Frigidaire COVER
403	WCI 136604914
405	136606504 Frigidaire Cover Assembly
406	136607300 Frigidaire Gasket
407	136609110 Frigidaire Dryer Door Assembly
408	136609214 Frigidaire Knob
409	136605700 Frigidaire Pipe
410	COVER, BASEMENT
415	136701301 Frigidaire Condenser
416	136607400 Frigidaire Handle
430D	136606800 Frigidaire Gasket
430A	125106700 Frigidaire Gasket
431	136605600 Frigidaire SEALING
440	136601721 Frigidaire SUPPORT
441	A05027101 Frigidaire Tank
442	136602804 Frigidaire Connector
443	WCI A05734604
450A	136605511 Frigidaire Hose
450B	136605411 Frigidaire Hose
451	136603500 Frigidaire Tube
504	A13608402 Frigidaire Motor
504B	808699801 Frigidaire Belt
506	136402403 Frigidaire Pump
510	5304537407 Frigidaire Heater 240V 1900+700W
512	136614001 Frigidaire Switch
514C	136608610 Frigidaire Felt
514	405549614 Frigidaire Kit Bushing
524A	A00299401 Frigidaire Support
524	125694900 Frigidaire Tension Spring
530	136609300 Frigidaire Wheel Blower
531	136604401 Frigidaire Fan
532	A00551101 Frigidaire Bracket Fixing
533	A00551201 Frigidaire Fixing Bracket
537	808089303 Frigidaire Filter
538	WCI A01517005
539	405551571 Frigidaire Receptacle
539A	WCI A18346501
548C	PROBE
549	124664400 Frigidaire Sealing Assembly
587	5304525856 Frigidaire PC Board
588	WCI A04190901
