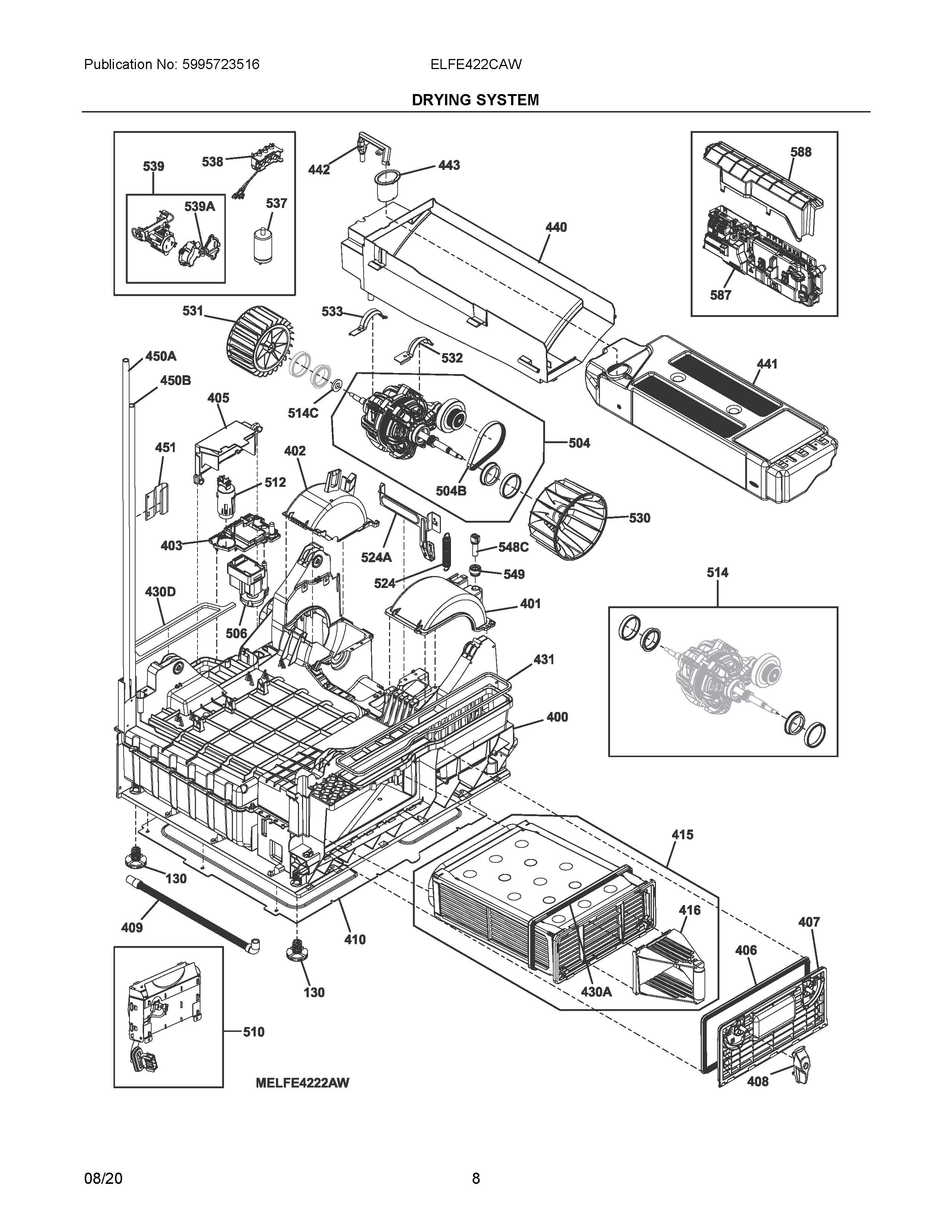

ELFE422CAW 05 – DRYING SYSTEM

ELFE422CAW 05 – DRYING SYSTEM

Written by

in

ELFE422CAW 05 – DRYING SYSTEM

Products

PositionProduct
NI5304505408 Frigidaire Cord
NIA16314102 Frigidaire Harness
NI125122513 Frigidaire Fittings
NI5022432900 Frigidaire Nut
NIWCI A19709102
NIA17667301 Frigidaire Harness
NIWCI A17667101
NIWCI A17667201
NIWCI A01523002
NIWCI A17667401
130899647060471 Frigidaire Leg
400136600042 Frigidaire Basement
401136604102 Frigidaire Cover
402136604205 Frigidaire COVER
403WCI 136604914
405136606504 Frigidaire Cover Assembly
406136607300 Frigidaire Gasket
407136609110 Frigidaire Dryer Door Assembly
408136609214 Frigidaire Knob
409136605700 Frigidaire Pipe
410COVER, BASEMENT
415136701301 Frigidaire Condenser
416136607400 Frigidaire Handle
430A125106700 Frigidaire Gasket
430D136606800 Frigidaire Gasket
431136605600 Frigidaire SEALING
440136601721 Frigidaire SUPPORT
441A05027101 Frigidaire Tank
442136602804 Frigidaire Connector
443WCI A05734604
450A136605511 Frigidaire Hose
450B136605411 Frigidaire Hose
451136603500 Frigidaire Tube
504A13608402 Frigidaire Motor
504B808699801 Frigidaire Belt
506136402403 Frigidaire Pump
5105304537407 Frigidaire Heater 240V 1900+700W
512136614001 Frigidaire Switch
514C136608610 Frigidaire Felt
514405549614 Frigidaire Kit Bushing
524AA00299401 Frigidaire Support
524125694900 Frigidaire Tension Spring
530136609300 Frigidaire Wheel Blower
531136604401 Frigidaire Fan
532A00551101 Frigidaire Bracket Fixing
533A00551201 Frigidaire Fixing Bracket
537808089303 Frigidaire Filter
538A01517006 Frigidaire Block Terminal
539405551571 Frigidaire Receptacle
539AWCI A18346501
548CPROBE
549124664400 Frigidaire Sealing Assembly
5875304525857 Frigidaire Pc Board
588WCI A04190901
