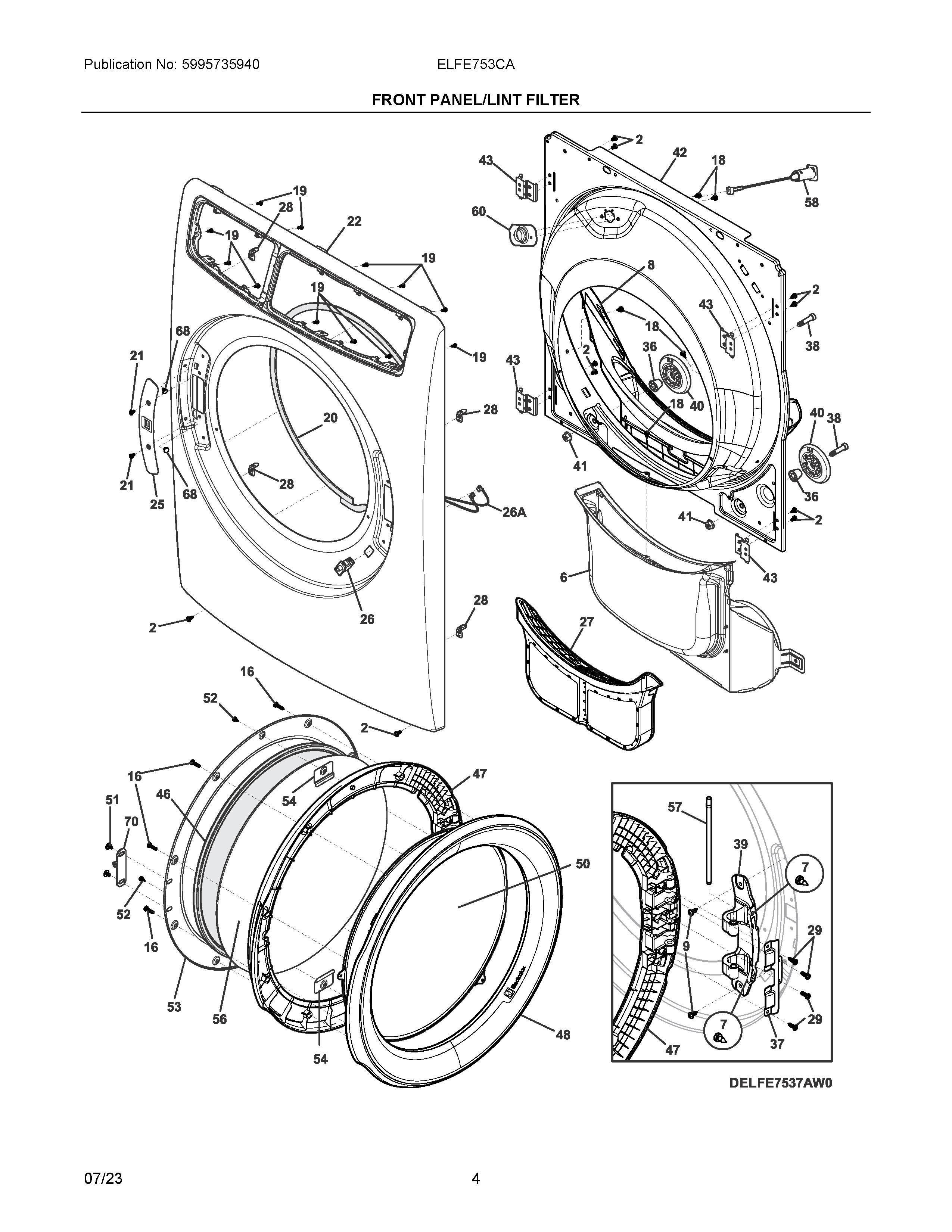

ELFE753CAT1 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	5304515364 Frigidaire Harness
6	5304521401 Frigidaire Duct Assembly
7	137285100 Frigidaire Screw
8	5304529758 Frigidaire Grill Assembly
9	5304505259 Frigidaire Screw
16	137087000 Frigidaire Screw
18	131168200 Frigidaire Dryer Screw
19	5304505441 Frigidaire Screw
20	5304505111 Frigidaire Gasket
21	131302800 Frigidaire Drum Vane Screw
22	5304515428 Frigidaire Panel
25	5304513568 Frigidaire Latch Assembly
26A	5304505258 Frigidaire Harness
26	134813664 Frigidaire Switch
27	5304529766 Frigidaire Filter Assembly
28	137034500 Frigidaire Clip
29	131205100 Frigidaire Screw
36	5304523154 Frigidaire Spacer
37	5304529788 Frigidaire Bracket Assembly
38	5304529714 Frigidaire Shaft
39	5304535750 Frigidaire Hinge Assembly
40	5304523152 Frigidaire Washer Wheel Roller
41	5304523153 Frigidaire Nut
42	5304521387 Frigidaire Bulkhead
43	5304505118 Frigidaire Bracket
46	5304505010 Frigidaire Gasket
47	5304529789 Frigidaire Frame
48	5304529941 Frigidaire Frame Assembly
50	5304505119 Frigidaire Shield Assembly
51	137241000 Frigidaire Screw
52	131243700 Frigidaire Screw
53	5304529614 Frigidaire Inner Door
54	5304505012 Frigidaire Clamp
56	5304504999 Frigidaire Dryer Door Glass
57	5304529871 Frigidaire Pin
58	5304521399 Frigidaire Lamp Assembly
60	5304521476 Frigidaire Bracket Assembly
68	134742002 Frigidaire Plug
70	5304532444 Frigidaire Striker
