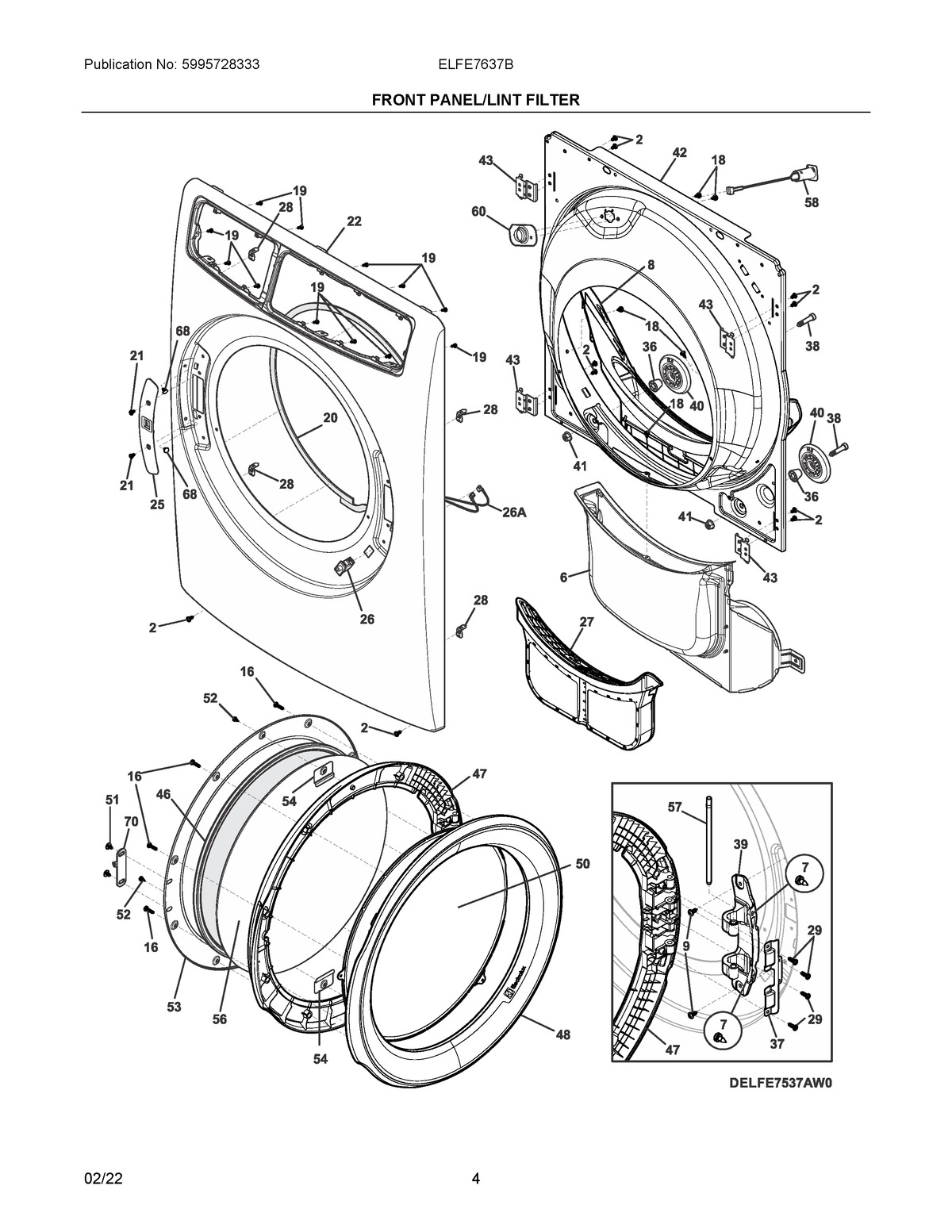

ELFE7637BT0 03 – FRONT PANEL/LINT FILTER

ELFE7637BT0 03 – FRONT PANEL/LINT FILTER

Written by

in

ELFE7637BT0 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
65304521401 Frigidaire Duct Assembly
7137285100 Frigidaire Screw
85304529759 Frigidaire Grill Assembly
95304505259 Frigidaire Screw
16137087000 Frigidaire Screw
18131168200 Frigidaire Dryer Screw
195304505441 Frigidaire Screw
205304505111 Frigidaire Gasket
21131302800 Frigidaire Drum Vane Screw
225304515428 Frigidaire Panel
255304513568 Frigidaire Latch Assembly
26134813664 Frigidaire Switch
26A5304505258 Frigidaire Harness
275304529766 Frigidaire Filter Assembly
28137034500 Frigidaire Clip
29131205100 Frigidaire Screw
365304523154 Frigidaire Spacer
375304529788 Frigidaire Bracket Assembly
385304529714 Frigidaire Shaft
395304535750 Frigidaire Hinge Assembly
405304523152 Frigidaire Washer Wheel Roller
415304523153 Frigidaire Nut
425304521387 Frigidaire Bulkhead
435304505118 Frigidaire Bracket
465304505010 Frigidaire Gasket
475304529789 Frigidaire Frame
485304529941 Frigidaire Frame Assembly
505304505119 Frigidaire Shield Assembly
51137241000 Frigidaire Screw
52131243700 Frigidaire Screw
535304529614 Frigidaire Inner Door
545304505012 Frigidaire Clamp
565304504999 Frigidaire Dryer Door Glass
575304529871 Frigidaire Pin
585304521399 Frigidaire Lamp Assembly
605304521476 Frigidaire Bracket Assembly
68134742002 Frigidaire Plug
705304532444 Frigidaire Striker
