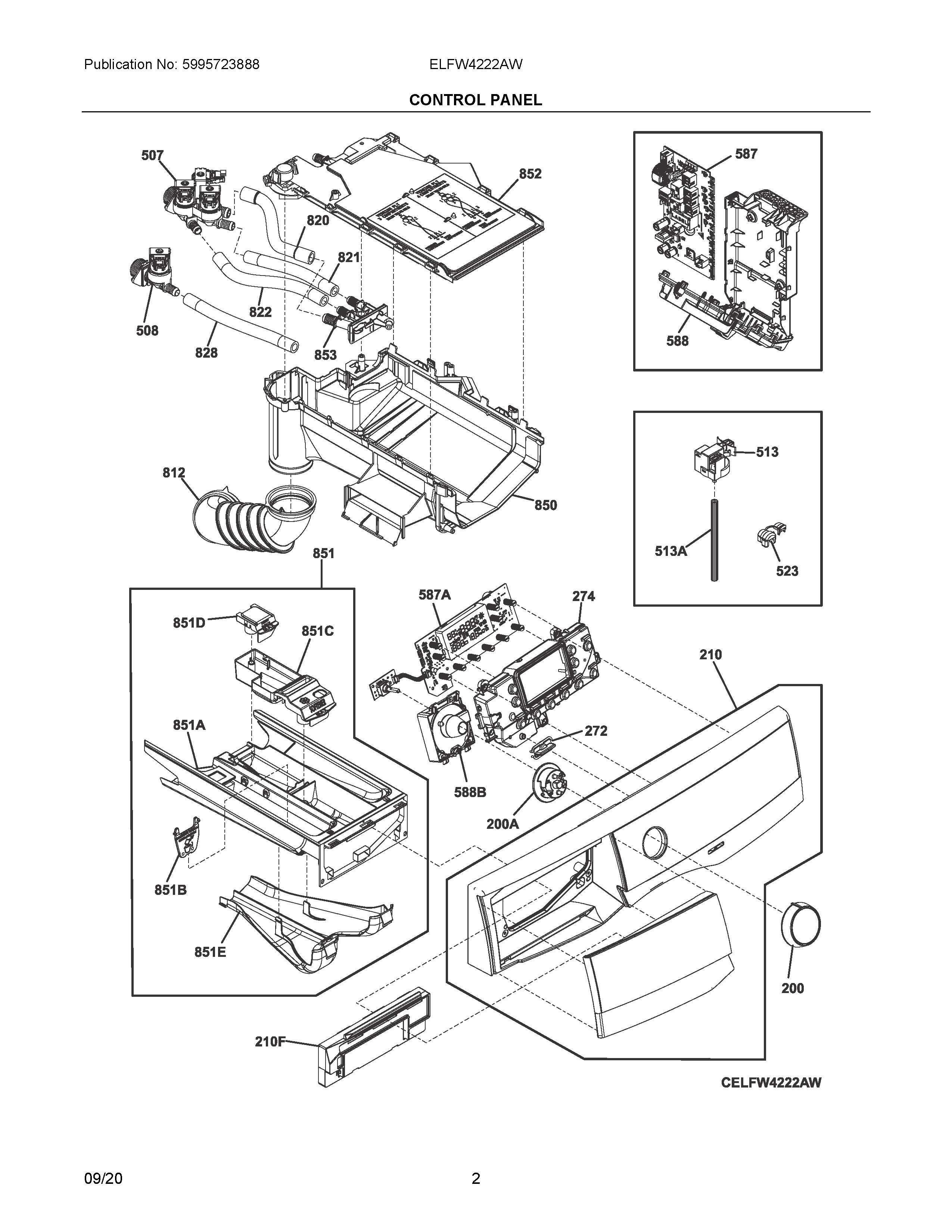

ELFW4222AW 02 – CONTROL PANEL

Products

Position	Product
NI	A01245801 Frigidaire Harness
NI	132315970 Frigidaire Clamp
NI	A01245501 Frigidaire Wiring Harness
NI	WCI A13152301
NI	WCI A01245603
NI	WCI A01246302
NI	WCI A13141001
NI	A01208403 Frigidaire Power Cord
NI	CLAMP, HOSE, D 20, 5
NI	CLAMP, HOSE, D40
NI	132315920 Frigidaire Clamp
NI	CLAMP, HOSE, 21.5-22.6MM
NI	WCI A13141201
200	A14487601 Frigidaire Knob
200A	A06078806 Frigidaire Knob
210	A17820305 Frigidaire Control Panel Assembly
210F	A17820701 Frigidaire Support
272	A06036609 Frigidaire Button
274	A06025111 Frigidaire Diffuser
507	132518842 Frigidaire Washer Valve
508	132744701 Frigidaire Valve
513	379221604 Frigidaire Pressure Switch
513A	132642371 Frigidaire Tube
523	DUCT, POWER CABLE, UL
587A	405550732 Frigidaire PC Board Assembly
587	5304523846 Frigidaire PCB Assembly
588B	A04035706 Frigidaire Housing Assembly
588	807881002 Frigidaire Housing Assembly
812	HOSE KIT, DETERGENT FILL, W/CLAMPS
820	405536798 Frigidaire Kit Tube
821	405536797 Frigidaire Tube Kit
822	TUBE KIT, ELECTRIC VALVE, D=10MM/L=125MM
828	132502480 Frigidaire Tube
850	132640843 Frigidaire Dispenser
851E	132507601 Frigidaire Conveyor
851A	132507511 Frigidaire Drawer
851B	132767801 Frigidaire Flap
851D	809169802 Frigidaire Syphon
851C	809169902 Frigidaire Syphon
851	405549875 Frigidaire Drawer Assembly
852	132507112 Frigidaire Distributor
853	DISTRIBUTOR, WATER, BACK, PIPE UNION
