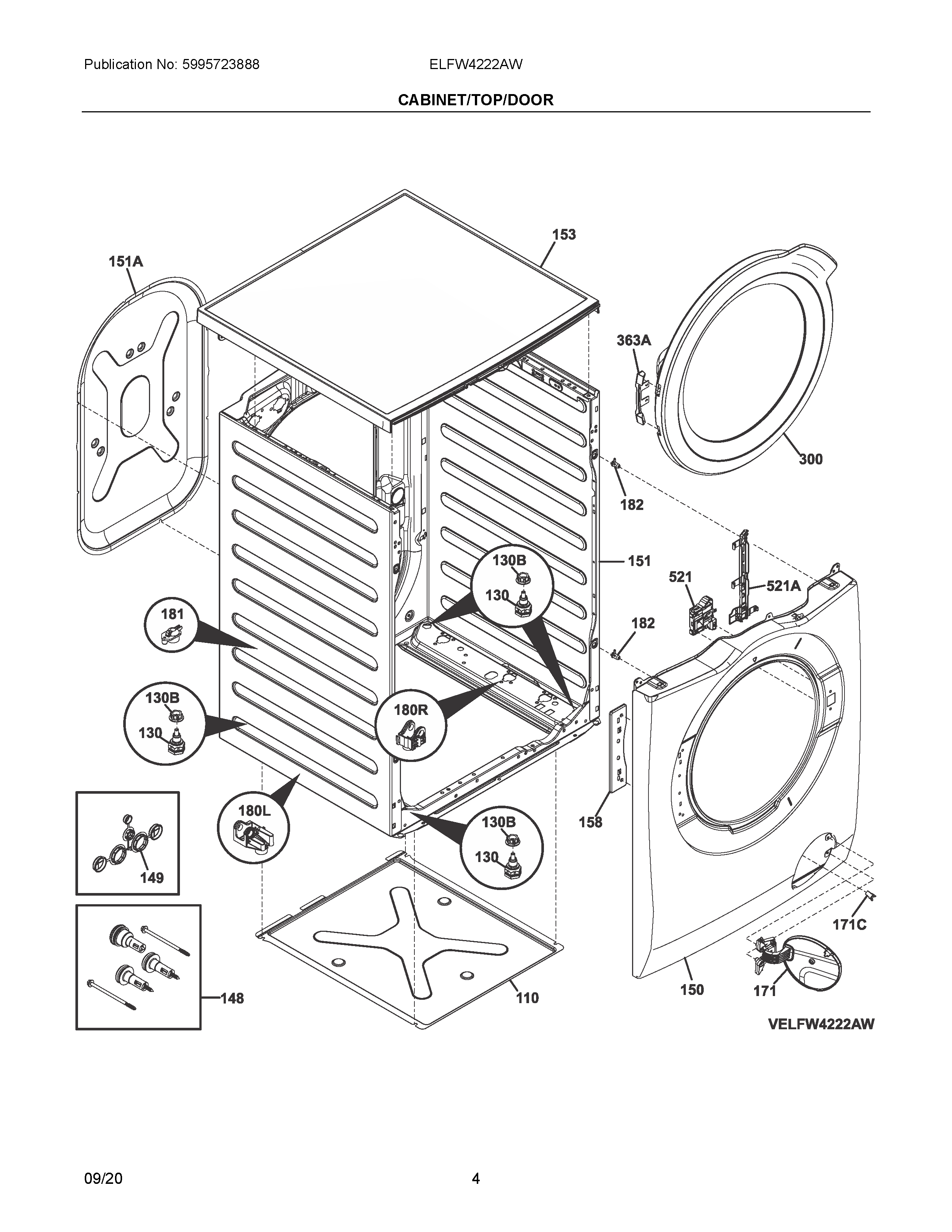

ELFW4222AW 03 – CABINET/TOP/DOOR

ELFW4222AW 03 – CABINET/TOP/DOOR

Written by

in

ELFW4222AW 03 – CABINET/TOP/DOOR

Products

PositionProduct
NICLAMP, ELEC VALVE, HOSE
NI533118220 Frigidaire Clamp
110A00889001 Frigidaire Base
130LEG
130B110877100 Frigidaire BUSHING
148405543872 Frigidaire Shipping Kit
149132503902 Frigidaire Cap
1505304536445 Frigidaire Front Panel
151132774390 Frigidaire PANEL
151A132504042 Frigidaire Panel
153132760446 Frigidaire Panel
158REINFORCEMENT, HINGE
171CCATCH ASSEMBLY
171A03748617 Frigidaire Door Assembly
180RBRACKET, SHOCK ABSORBER, RIGHT
180LBRACKET, SHOCK ABSORBER, LEFT
181CAP, SUPPORT, CUSHION
182132476800 Frigidaire PIN
300A15514113 Frigidaire Door Assembly
363ACOVER, DOOR HINGE, GREY
521808455304 Frigidaire Lock
521A807756001 Frigidaire Cover Assembly
