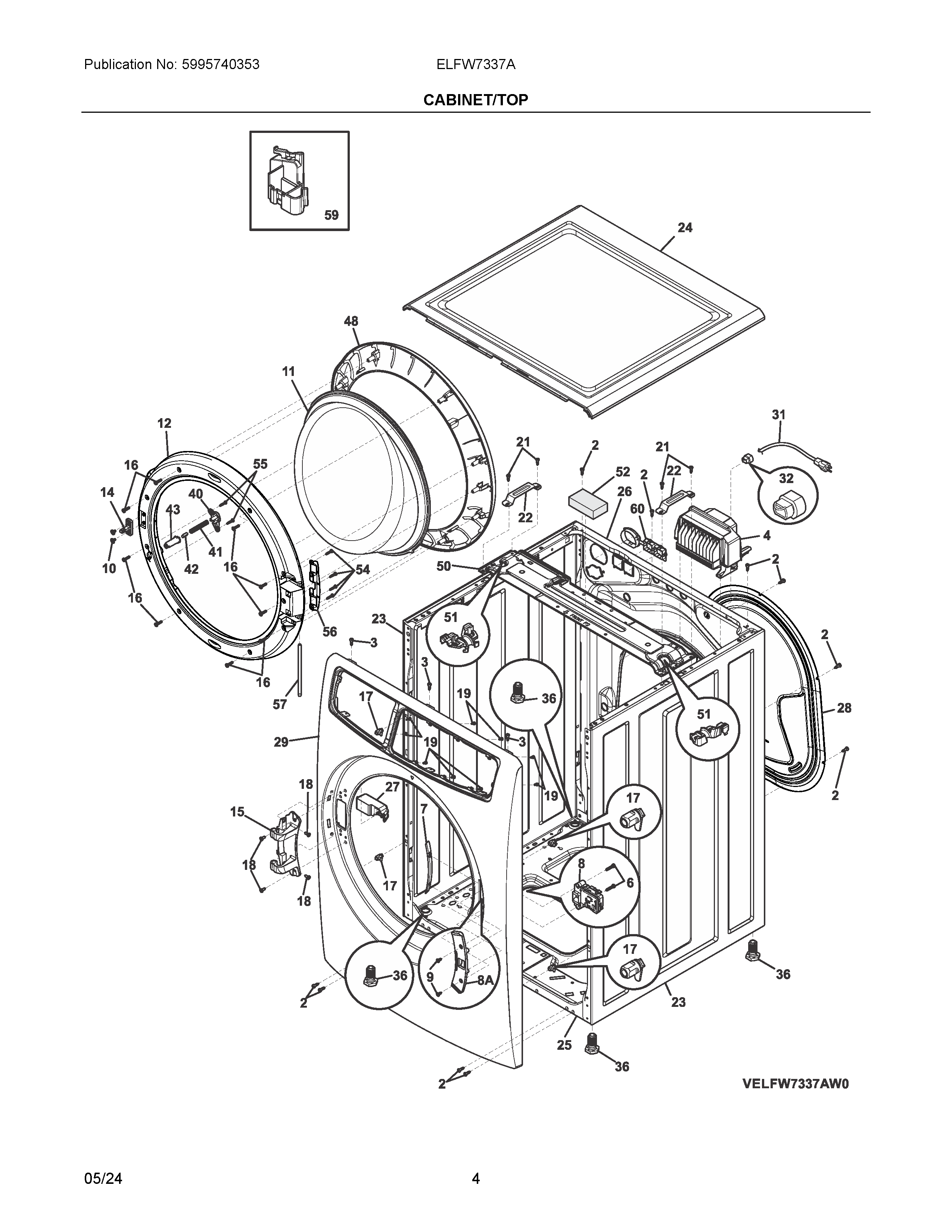

ELFW7337AW1 03 – CABINET/TOP

ELFW7337AW1 03 – CABINET/TOP

Written by

in

ELFW7337AW1 03 – CABINET/TOP

Products

PositionProduct
NI134629400 Frigidaire Screw
NIA5304522522 Frigidaire Oven Harness
NIA5304522524 Frigidaire Harness
NIA5304529873 Frigidaire Gasket
NI134591400 Frigidaire Hole Plug
NI131302800 Frigidaire Drum Vane Screw
NI5308014215 Frigidaire Oven Screw
NI131202300 Frigidaire Screw
3SCREW, #10-16 X .375, W/SEALING WSHR
45304529908 Frigidaire Motor Control
6137262100 Frigidaire Screw
75304505144 Frigidaire Cover
8A5304505103 Frigidaire Cover
85304514774 Frigidaire Washer Door Lock Assembly with Switch
9131168200 Frigidaire Dryer Screw
10137241000 Frigidaire Screw
115304529631 Frigidaire Glass Component
12FRAME, DOOR, INNER
145304505088 Frigidaire Washer Latch
155304529754 Frigidaire Hinge Assembly
16137087000 Frigidaire Screw
175304505102 Frigidaire Clip
185304505259 Frigidaire Screw
195304505441 Frigidaire Screw
21137087400 Frigidaire Screw
225304505101 Frigidaire Bracket
235304505139 Frigidaire Panel
245304505081 Frigidaire Top Panel
25BASE, WASHED
265304529717 Frigidaire Panel
275304505104 Frigidaire Protection
28134646206 Frigidaire PANEL
295304505058 Frigidaire Panel Assembly
315304522525 Frigidaire Power Cord
325303209428 Frigidaire Serv.Cord Bushing
365304522555 Frigidaire Levelling Leg
405304505328 Frigidaire Cap
415304505329 Frigidaire Spring
425304505381 Frigidaire Magnet
43BUTTON, DOOR VENT
485304529866 Frigidaire Frame
505304505087 Frigidaire Bracket
515304505221 Frigidaire Protector Assembly
52131931202 Frigidaire Dampener
54131205100 Frigidaire Screw
553205150 Frigidaire Tub Bearing Screw
565304529750 Frigidaire Bracket
575304529871 Frigidaire Pin
595304505311 Frigidaire Support
60134372000 Frigidaire Grommet
