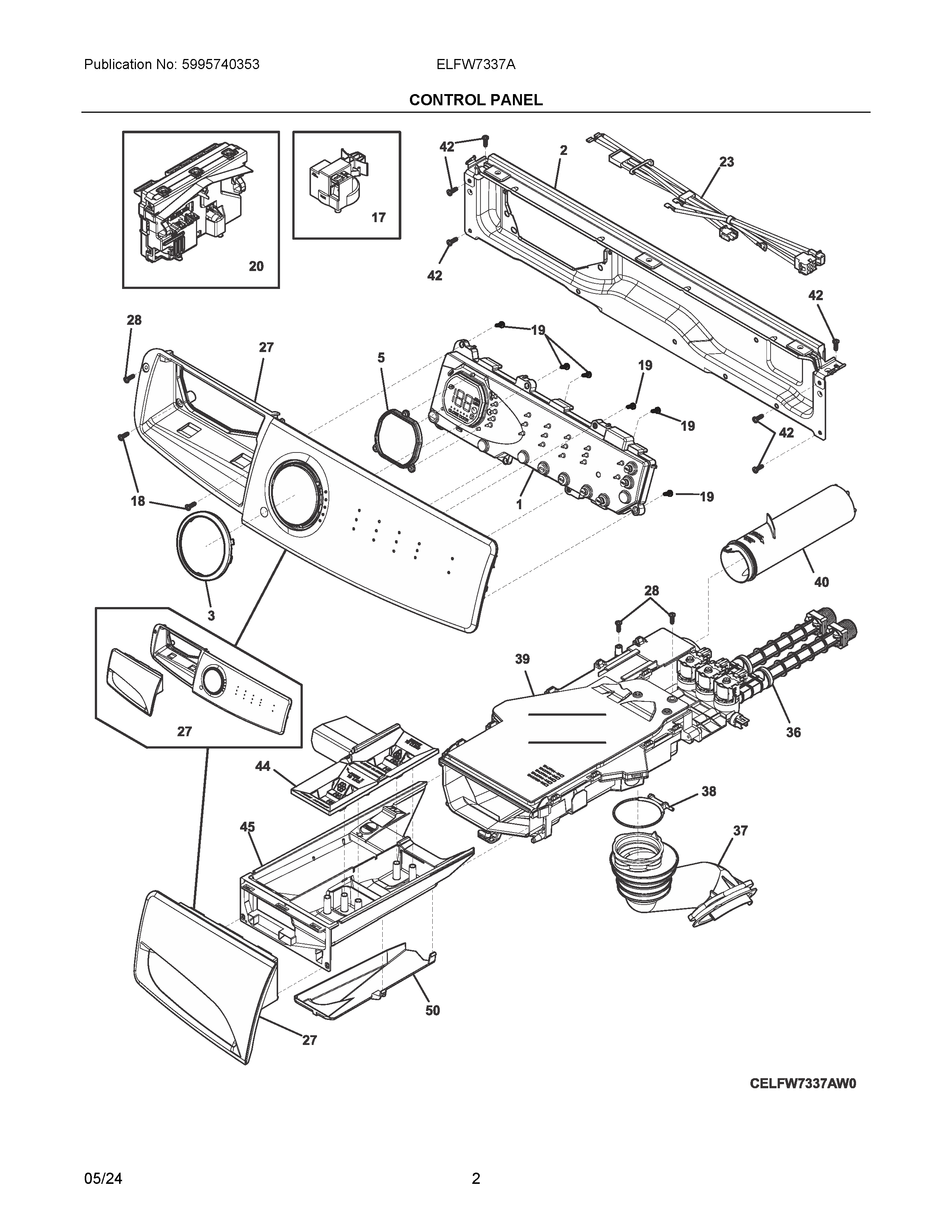

ELFW7337AW2 02 – CONTROL PANEL

Products

Position	Product
NIA	134178901 Frigidaire Screw
NIA	5304529693 Frigidaire Gasket
NI	5304510114 Frigidaire Cable
NIA	HOUSING, CONTROL BOARD, MAIN
NIA	134629400 Frigidaire Screw
NIA	134371300 DISPENSER TO VALVE GASKET
NIA	134407900 Frigidaire Dampener
1	5304529906 Frigidaire Board Assembly
2	5304505086 Frigidaire Bracket
3	5304505044 Frigidaire Trim Assembly
5	5304505045 Frigidaire Seal
17	SENSOR SWITCH
18	131302800 Frigidaire Drum Vane Screw
19	5304505441 Frigidaire Screw
20	MAIN BOARD ASSEMBLY
23	HARNESS
27	5304529905 Frigidaire Console Assembly/Handle
28	131205100 Frigidaire Screw
36	5304512102 Frigidaire Assembly Housing
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
40	134372103 Frigidaire Tube
42	131168200 Frigidaire Dryer Screw
44	134370200 Frigidaire Washer Dispenser Drawer Cover
50	134409320 Frigidaire Dispenser Assembly
