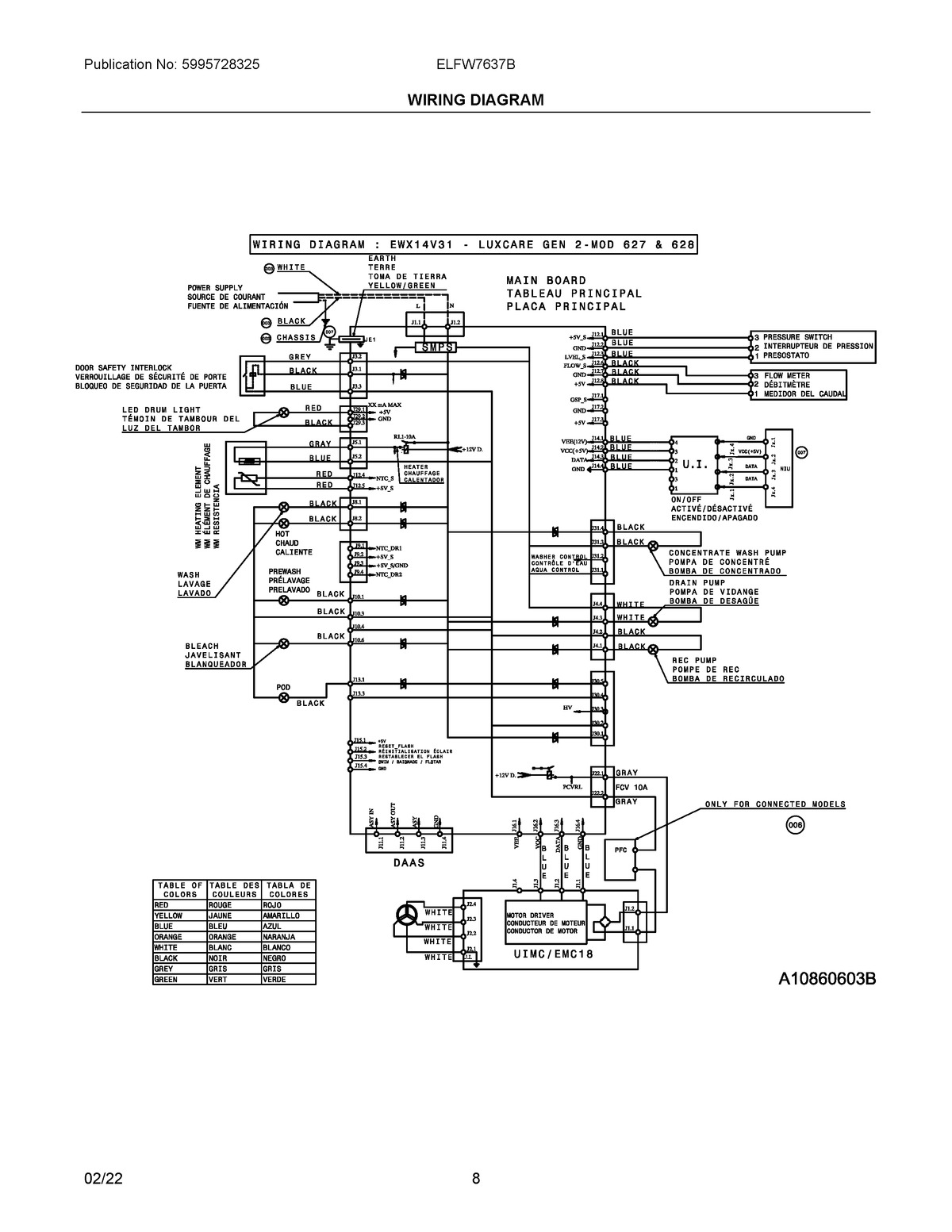

ELFW7637BW0 05 – WIRING DIAGRAM

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
4	5304505074 Frigidaire Spacer
5	5304505313 Frigidaire Gasket
6	5304505318 Frigidaire Gasket
7	5304515233 Frigidaire Tube
8	134711401 Frigidaire Dryer Thermal Fuse
8A	134935200 Frigidaire Screw
9	5304513609 Frigidaire Washer Blower Wheel
10	5304529655 Frigidaire Blower Assembly
11	5304525724 Frigidaire Spacer
19	5304513591 Frigidaire Thermistor
20	131205100 Frigidaire Screw
22	131601000 Frigidaire Idler Spring Assembly
23	134793511 Frigidaire Idler Arm Assembly
25	5 RIB DRYER BELT
27	134242400 Frigidaire Washer Clamp Assembly
28	5304529782 Frigidaire Motor
34	131243700 Frigidaire Screw
46	5304525693 Frigidaire Bracket
