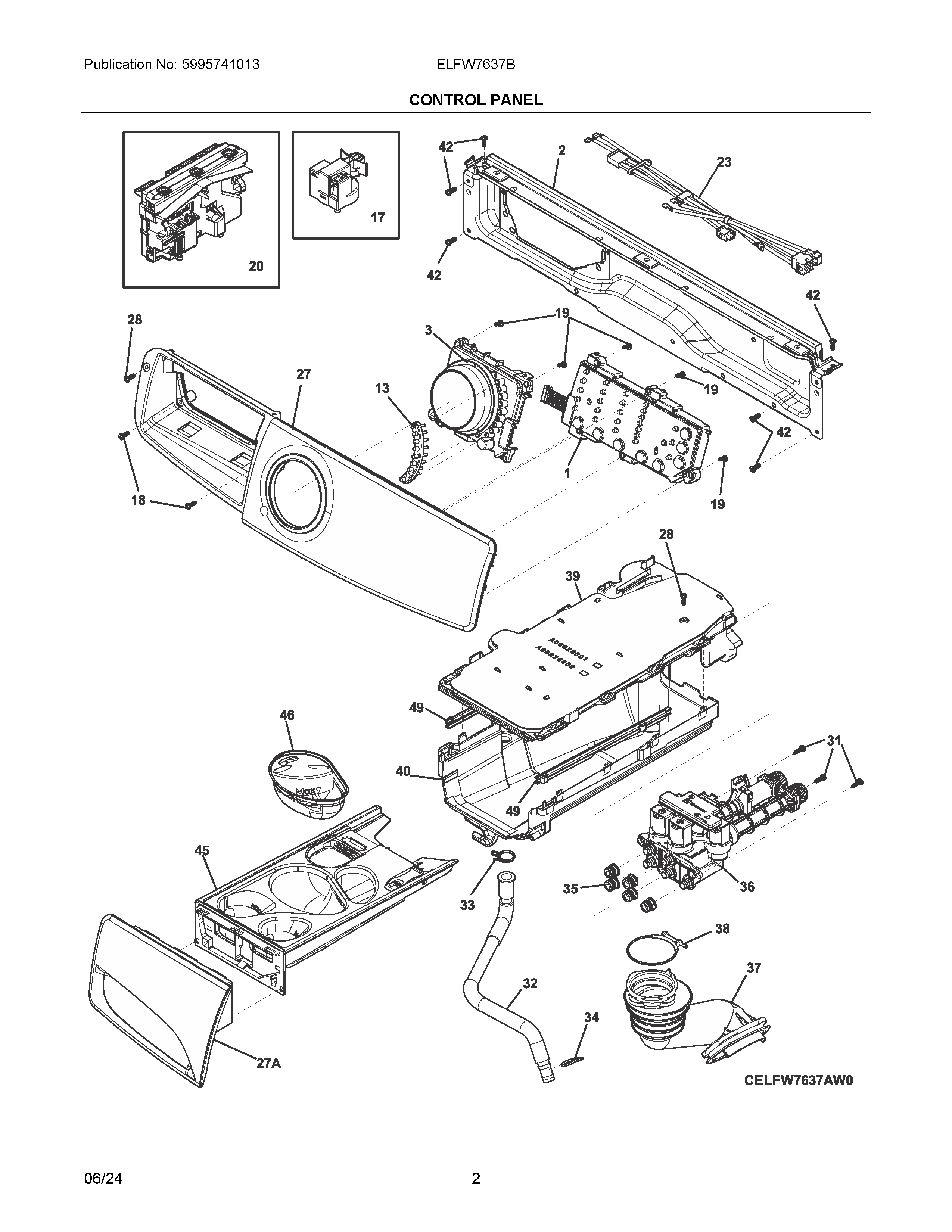

ELFW7637BW1 02 – CONTROL PANEL

Products

Position	Product
NIA	5304510114 Frigidaire Cable
NIA	134407900 Frigidaire Dampener
NIA	5304529693 Frigidaire Gasket
NIA	134629400 Frigidaire Screw
NI	5304528020 Frigidaire Cable Tie
1	5304529484 Frigidaire Board Assembly
2	5304505086 Frigidaire Bracket
3	5304529826 Frigidaire Knob Assembly
13	5304529751 Frigidaire Diffuser
17	SENSOR SWITCH
18	131302800 Frigidaire Drum Vane Screw
19	5304505441 Frigidaire Screw
20	5304536570 Frigidaire Electrical Control
23	5304522537 Frigidaire Harness
27	5304529888 Frigidaire Console Assembly
27A	5304529889 Frigidaire Handle Assembly
28	131205100 Frigidaire Screw
31	5304514820 Frigidaire Screw
32	134625500 Frigidaire Hose
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
35	134371300 DISPENSER TO VALVE GASKET
36	5304528029 Frigidaire Valve Assembly Vortex with Flow Meter
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	5304514794 Frigidaire Washer Conveyor
40	5304514782 Frigidaire Washer Housing
42	131168200 Frigidaire Dryer Screw
45	5304514792 Frigidaire Drawer Dispenser
46	5304514801 Frigidaire Cup Assembly
49	5304514781 Frigidaire Slider Assembly
