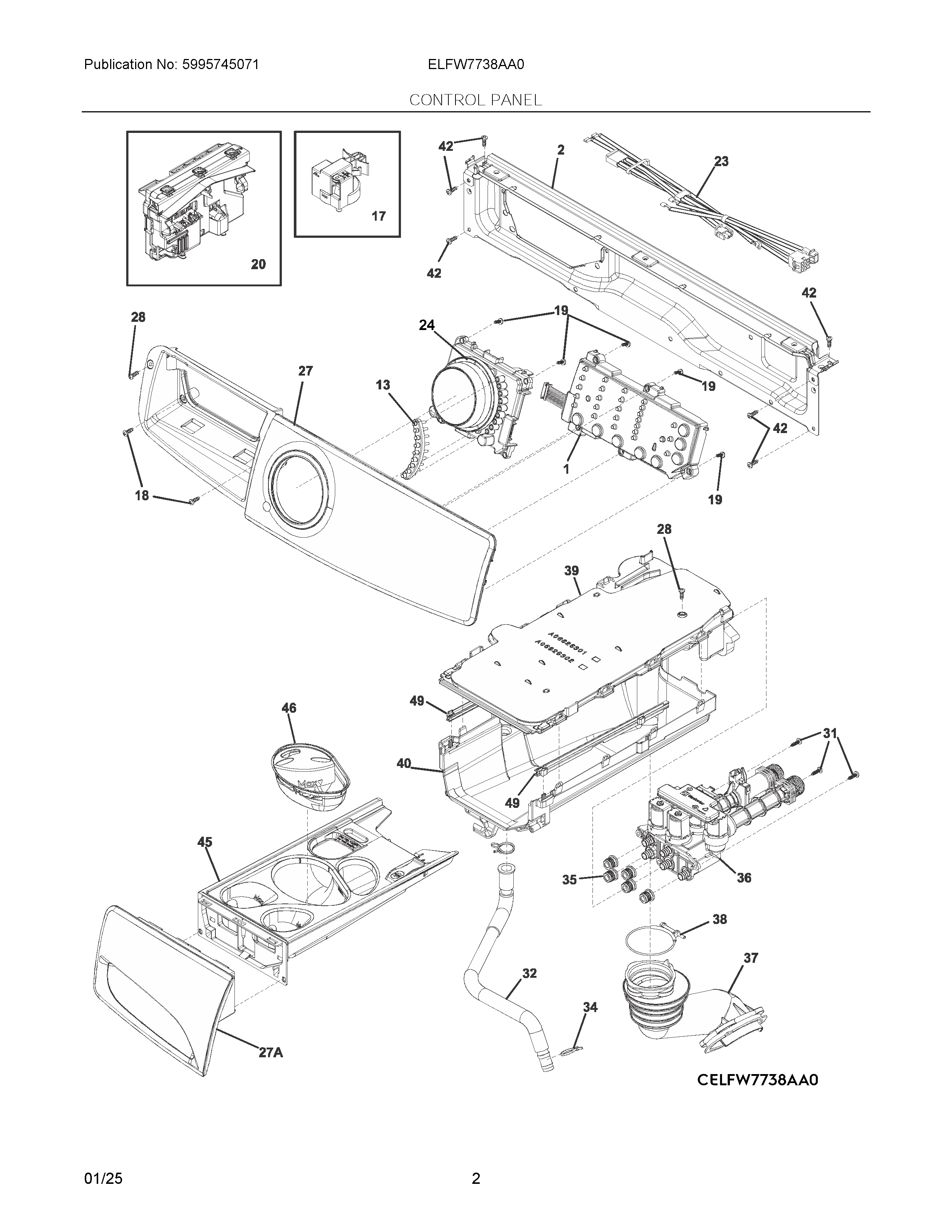

ELFW7738AA0 02 – CONTROL PANEL

Products

Position	Product
NIA	134178901 Frigidaire Screw
NIA	5304529693 Frigidaire Gasket
NIA	5304510114 Frigidaire Cable
NI	137087000 Frigidaire Screw
NI	5304528020 Frigidaire Cable Tie
NIA	134629400 Frigidaire Screw
NIA	134407900 Frigidaire Dampener
1	UI SATELLITE, BOARD ASSEMBLY
2	5304505086 Frigidaire Bracket
13	5304529751 Frigidaire Diffuser
17	SENSOR SWITCH
18	131302800 Frigidaire Drum Vane Screw
19	5304505441 Frigidaire Screw
20	MAIN BOARD, ASSEMBLY
23	5304522537 Frigidaire Harness
24	KNOB ASSEMBLY, PROGRAM KIT
27	OVERLAY, CONTROL PANEL
27A	HANDLE ASSEMBLY, GREEN, OVERLAY
28	131205100 Frigidaire Screw
31	5304514820 Frigidaire Screw
32	134625500 Frigidaire Hose
34	5304464772 Frigidaire Refrigerator Wire Tie
35	134371300 DISPENSER TO VALVE GASKET
36	VALVE
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	HOUSING, ASSEMBLY, CONVEYOR
40	5304514782 Frigidaire Washer Housing
42	131168200 Frigidaire Dryer Screw
45	DRAWER ASSEMBLY, DISPENSER
46	5304514801 Frigidaire Cup Assembly
49	5304514781 Frigidaire Slider Assembly
