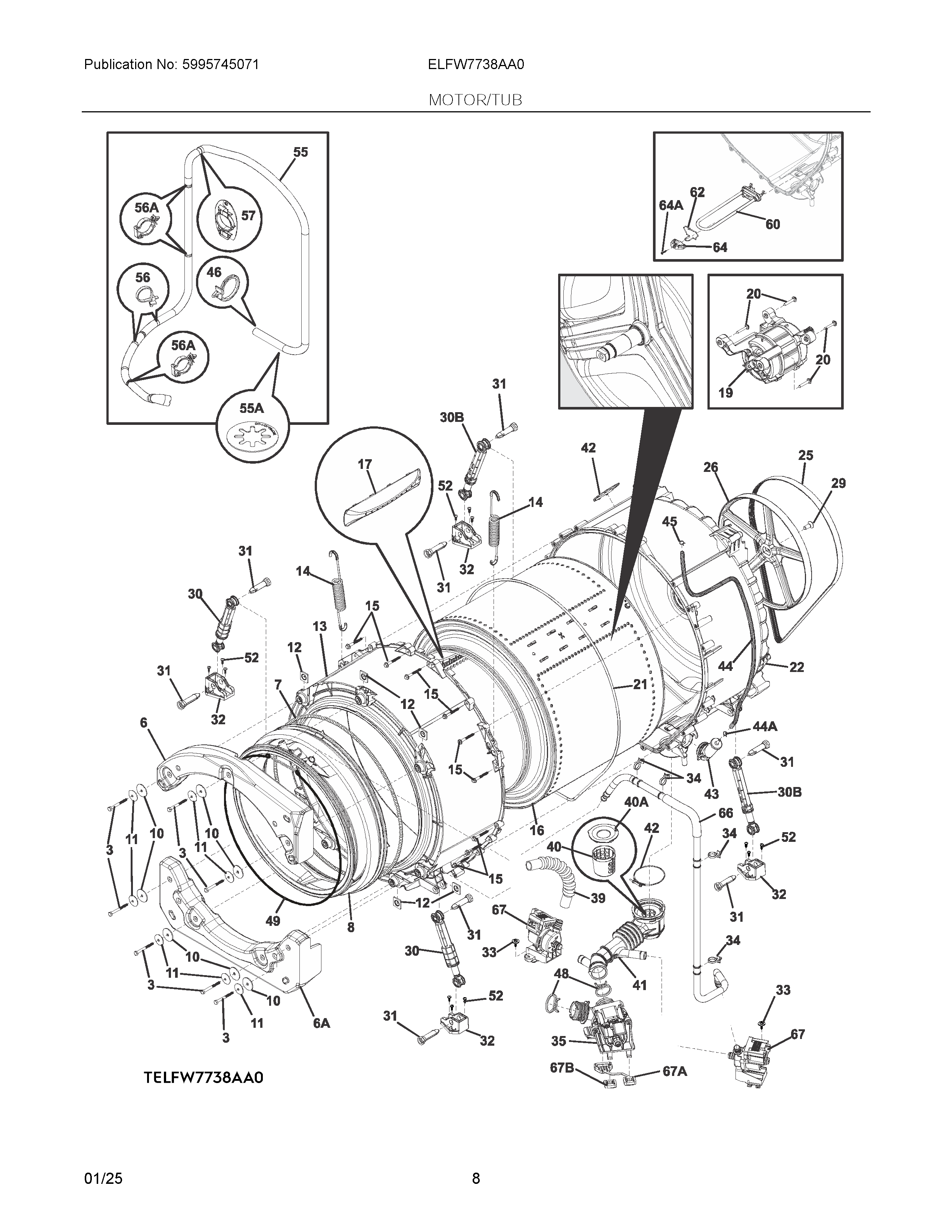

ELFW7738AA0 04 – MOTOR/TUB

ELFW7738AA0 04 – MOTOR/TUB

Written by

in

ELFW7738AA0 04 – MOTOR/TUB

Products

PositionProduct
NIA134637200 Frigidaire Screw
NIA137110800 Frigidaire Cushion
NIA137087400 Frigidaire Screw
NI131168200 Frigidaire Dryer Screw
NI5304464772 Frigidaire Refrigerator Wire Tie
NI131302800 Frigidaire Drum Vane Screw
NI131303900 Frigidaire Screw
35304505159 Frigidaire Screw
7134616200 Frigidaire Washer Spring Assembly
85304505004 Frigidaire Washer Door Gasket
105304505212 Frigidaire Washer
11131276900 Frigidaire Washer Spring
125304505175 Frigidaire Plate
135304533998 Frigidaire Shell
145304505117 Frigidaire Washer Spring
16DRUM
17137263600 Frigidaire Washer Front-Load Tub Baffle
195304515226 Frigidaire Motor
20131303500 Frigidaire Screw
215304522569 Frigidaire Seal
225304505157 Frigidaire Rear Drum Assembly with Bearing
25134616701 Frigidaire Belt
265304514822 Frigidaire Pulley
29BOLT
30B137412601 Frigidaire Washer Shock Absorber
30SHOCK ABSORBER
315304532011 Frigidaire Pin
32134363200 Frigidaire Bracket
33134160900 Frigidaire Screw
345304528020 Frigidaire Cable Tie
355304514775 Frigidaire Washer Pump Assembly
395304505163 Frigidaire Pipe
40A5304505169 Frigidaire Cover
405304505165 Frigidaire Filter
415304505161 Frigidaire Hose
42134737300 Frigidaire Clamp
44ACLAMP, HOSE
445304535282 Frigidaire Air Chamber
45137087500 Frigidaire Clamp
46134261300 Frigidaire Clip
48CLAMP,HOSE
49134616300 Frigidaire Washer Clamp
50CLAMP, HOSE, WIRE
52131202300 Frigidaire Screw
55137629208 Frigidaire Drain Hose
55A137385100 Frigidaire Ring
57134641100 Frigidaire Bracket
60ELEMENT, HEATING, 1000W, W/NTC
62134642300 Frigidaire Support Assembly
645304505156 Frigidaire Cover
64A5304505439 Frigidaire Screw
665304526694 Frigidaire Hose
67A137297000 Frigidaire Pad Assembly
67B5304505433 Frigidaire Pad
67PUMP ASSY
