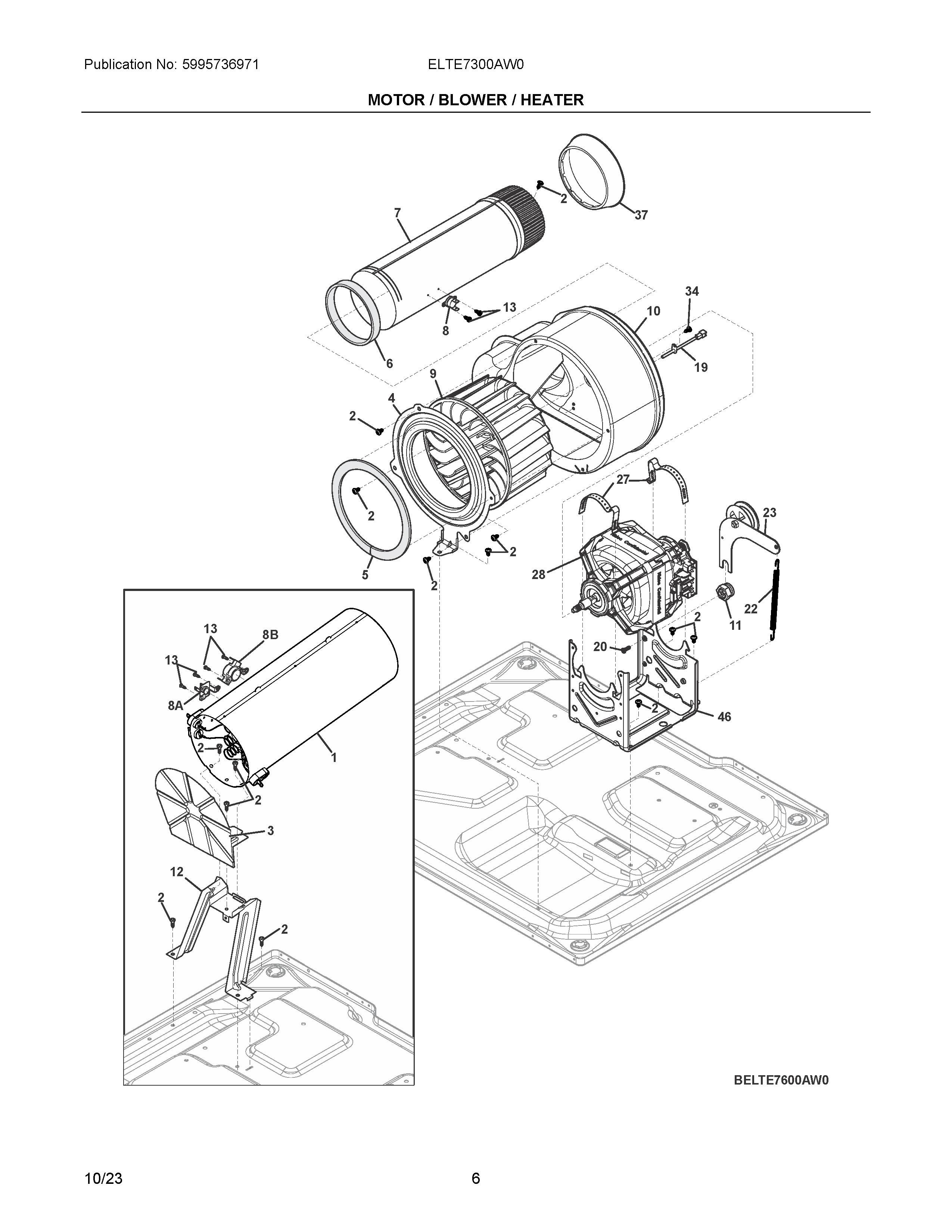

ELTE7300AW0 03 – MOTOR / BLOWER / HEATER

Products

Position	Product
NI	131202300 Frigidaire Screw
1	5304534317 Frigidaire Heater Assembly
2	131168200 Frigidaire Dryer Screw
3	134692701 Frigidaire Shield
4	5304505074 Frigidaire Spacer
5	5304505313 Frigidaire Gasket
6	5304505318 Frigidaire Gasket
7	5304515233 Frigidaire Tube
8B	SAFETY THERMSTAT
8A	THERMAL LIMITER - GAS
8	134711401 Frigidaire Dryer Thermal Fuse
9	5304513609 Frigidaire Washer Blower Wheel
10	5304529655 Frigidaire Blower Assembly
11	5304525724 Frigidaire Spacer
12	134713901 Frigidaire Bracket Assembly
13	134935200 Frigidaire Screw
19	THERMISTOR
20	131205100 Frigidaire Screw
22	131601000 Frigidaire Idler Spring Assembly
23	134793511 Frigidaire Idler Arm Assembly
27	134242400 Frigidaire Washer Clamp Assembly
28	5304529782 Frigidaire Motor
34	131243700 Frigidaire Screw
37	137553500 Frigidaire COVER
46	5304525693 Frigidaire Bracket
