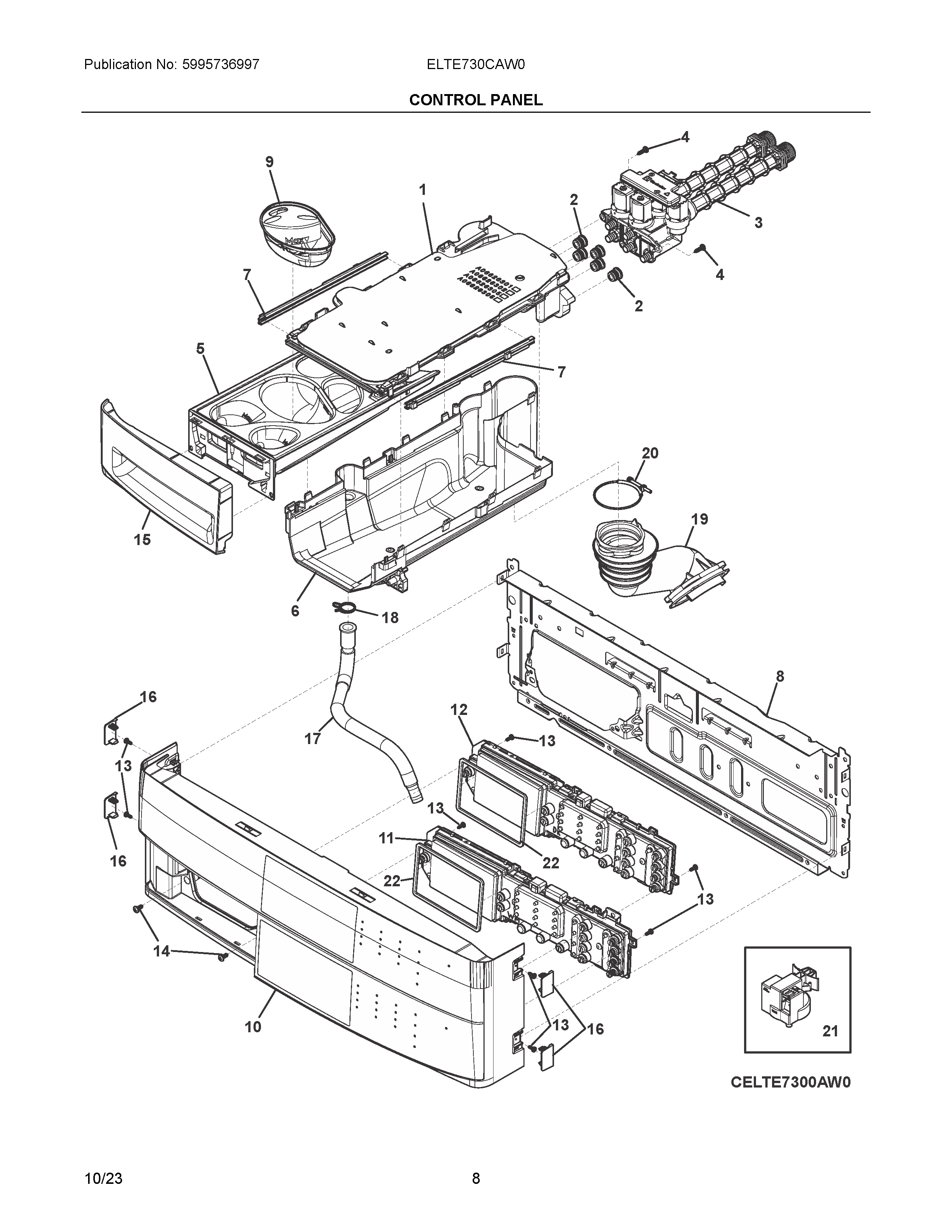

ELTE730CAW0 04 – CONTROL PANEL

ELTE730CAW0 04 – CONTROL PANEL

Written by

in

ELTE730CAW0 04 – CONTROL PANEL

Products

PositionProduct
NI5304535935 Frigidaire Harness
NIHARNESS, WIRING, MAIN, WASHER
NI5304528020 Frigidaire Cable Tie
NIA134629400 Frigidaire Screw
NI5304464772 Frigidaire Refrigerator Wire Tie
15304514794 Frigidaire Washer Conveyor
2134371300 DISPENSER TO VALVE GASKET
35304535924 Frigidaire Valve
45304514820 Frigidaire Screw
55304535925 Frigidaire Drawer Assembly
65304535948 Frigidaire Housing
75304514781 Frigidaire Slider Assembly
8BRACKET, FRONT ALIGNMENT
95304514801 Frigidaire Cup Assembly
10CONSOLE ASSEMBLY, BLACK, W/HANDLE OVERLY
115304536037 Frigidaire Interface Board User Assembly
125304536039 Frigidaire User Interface Board,Assembly
135304505441 Frigidaire Screw
14131302800 Frigidaire Drum Vane Screw
15HANDLE
16COVER, SCREW
17HOSE, DISP-TO-BELLOWS
18134737300 Frigidaire Clamp
19134625700 Frigidaire Hose
20134372400 Frigidaire Clamp
21SENSOR SWITCH
22GASKET, LED MODULE
