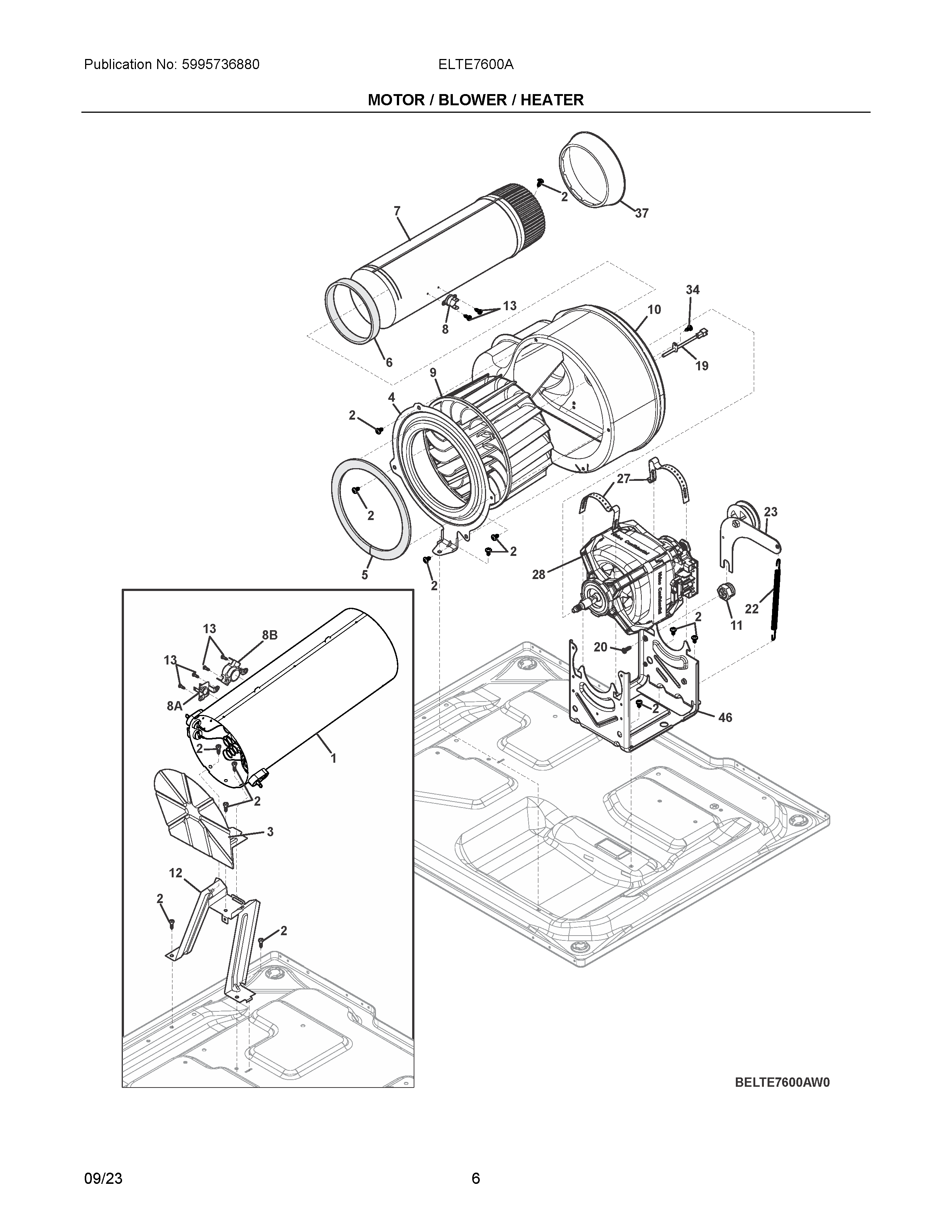

ELTE7600AW0 03 – MOTOR / BLOWER / HEATER

ELTE7600AW0 03 – MOTOR / BLOWER / HEATER

Written by

in

ELTE7600AW0 03 – MOTOR / BLOWER / HEATER

Products

PositionProduct
NI131202300 Frigidaire Screw
15304534317 Frigidaire Heater Assembly
2131168200 Frigidaire Dryer Screw
3134692701 Frigidaire Shield
45304505074 Frigidaire Spacer
55304505313 Frigidaire Gasket
65304505318 Frigidaire Gasket
75304515233 Frigidaire Tube
8BSAFETY THERMSTAT
8ATHERMAL LIMITER – GAS
8134711401 Frigidaire Dryer Thermal Fuse
95304513609 Frigidaire Washer Blower Wheel
105304529655 Frigidaire Blower Assembly
115304525724 Frigidaire Spacer
12134713901 Frigidaire Bracket Assembly
13134935200 Frigidaire Screw
19THERMISTOR
20131205100 Frigidaire Screw
22131601000 Frigidaire Idler Spring Assembly
23134793511 Frigidaire Idler Arm Assembly
27134242400 Frigidaire Washer Clamp Assembly
285304529782 Frigidaire Motor
34131243700 Frigidaire Screw
37137553500 Frigidaire COVER
465304525693 Frigidaire Bracket
