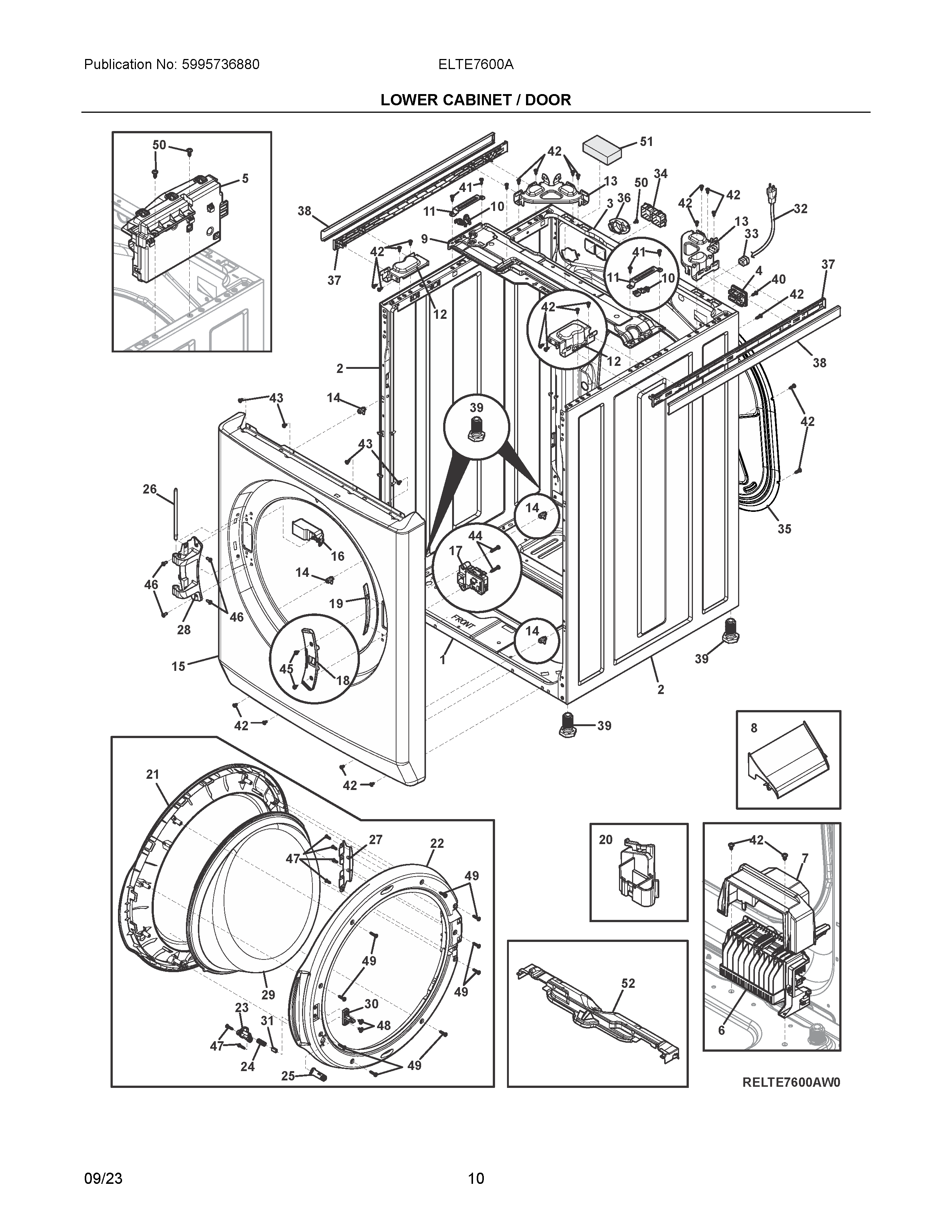

ELTE7600AW0 05 – LOWER CABINET / DOOR

ELTE7600AW0 05 – LOWER CABINET / DOOR

Written by

in

ELTE7600AW0 05 – LOWER CABINET / DOOR

Products

PositionProduct
NI134591400 Frigidaire Hole Plug
NIWCI 137086901
NI134629400 Frigidaire Screw
NI137086900 Frigidaire Bolt
NI316008401 Frigidaire Washer P-1
NIA5304510114 Frigidaire Cable
NI131205100 Frigidaire Screw
NIA134407900 Frigidaire Dampener
NI5308014215 Frigidaire Oven Screw
NIA5304522524 Frigidaire Harness
1BASE, WASHED
25304505139 Frigidaire Panel
3PANEL, MAIN BACK, WASHER
4BRACKET & COVER, ASSEMBLY, DAAS CONNECTOR
55304536154 Frigidaire Main Board
65304531961 Frigidaire Motor Control
7COVER, MOTOR CONTROL
8WCI 5304514807
9BRACKET, TUB SUSPENSION
105304505221 Frigidaire Protector Assembly
115304505101 Frigidaire Bracket
12MARRIAGE BRACKET, FRONT CORNER
13MARRIAGE BRACKET, REAR CORNER
145304505102 Frigidaire Clip
15FRONT PANEL, WASHER, WHITE
165304505104 Frigidaire Protection
175304514774 Frigidaire Washer Door Lock Assembly with Switch
185304505103 Frigidaire Cover
195304505144 Frigidaire Cover
205304505311 Frigidaire Support
215304529890 Frigidaire Frame Assembly
225304537077 Frigidaire Frame
235304535443 Frigidaire Button
245304505329 Frigidaire Spring
255304505328 Frigidaire Cap
265304529871 Frigidaire Pin
275304529750 Frigidaire Bracket
285304529754 Frigidaire Hinge Assembly
295304529631 Frigidaire Glass Component
305304505088 Frigidaire Washer Latch
315304505381 Frigidaire Magnet
325304522525 Frigidaire Power Cord
335303209428 Frigidaire Serv.Cord Bushing
345304514806 Frigidaire Grommet
35134646206 Frigidaire PANEL
36134641100 Frigidaire Bracket
37BRACKET, SIDE TRIM, WHITE
38COVER, SIDE TRIM, WHITE
395304522555 Frigidaire Levelling Leg
40131202300 Frigidaire Screw
41137087400 Frigidaire Screw
43SCREW, #10-16 X .375, W/SEALING WSHR
44137262100 Frigidaire Screw
45131168200 Frigidaire Dryer Screw
465304505259 Frigidaire Screw
473205150 Frigidaire Tub Bearing Screw
48137241000 Frigidaire Screw
49137087000 Frigidaire Screw
50131302800 Frigidaire Drum Vane Screw
51131931202 Frigidaire Dampener
52WCI 5304535981
