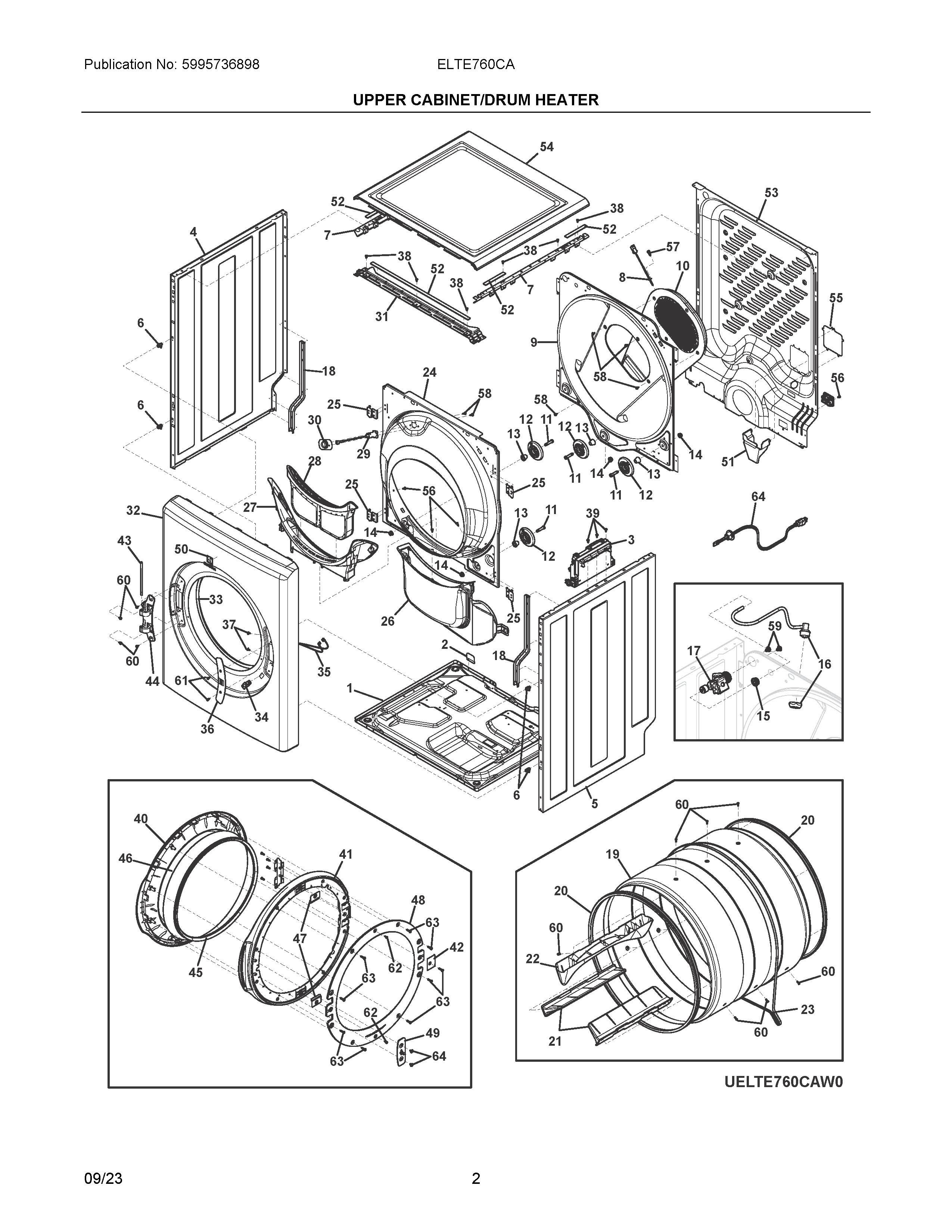

ELTE760CAT0 02 – UPPER CABINET/DRUM HEATER

Products

PositionProduct
NI134154100 Frigidaire Screw 10-32 x 0.375 Co
NIA131205500 Frigidaire Screw
NI5304505259 Frigidaire Screw
NI131202300 Frigidaire Screw
1BASE, DRYER, WASHED
2137537100 Frigidaire Cover
35304536155 Frigidaire Main Board Assembly
4134712697 Frigidaire Panel
5134712797 Frigidaire Panel
65304505102 Frigidaire Clip
7BRACE, SIDE PANEL
85304520302 Frigidaire Thermistor
9REAR BULKHEAD, DRYER
105304513571 Frigidaire Duct Assembly
115304529714 Frigidaire Shaft
125304523152 Frigidaire Washer Wheel Roller
135304523154 Frigidaire Spacer
145304523153 Frigidaire Nut
15137017200 Frigidaire Grommet
165304529773 Frigidaire Nozzle Assembly
17LOW PROFILE MIST VALVE
18137029801 Frigidaire Bracket Assembly
19137610710 Frigidaire Drum Assembly
205304499489 Frigidaire Washer Felt Seal
21137610600 Frigidaire Vane
22VANE, DRUM, GRAY, MIXING
235 RIB DRYER BELT
245304521387 Frigidaire Bulkhead
255304505118 Frigidaire Bracket
265304521401 Frigidaire Duct Assembly
27GRILL ASSEMBLY
285304529766 Frigidaire Filter Assembly
29LAMP ASSEMBLY, LED, W/HARNESS
305304521476 Frigidaire Bracket Assembly
315304513567 Frigidaire Bracket
325304535968 Frigidaire Front Panel
335304505111 Frigidaire Gasket
34134813664 Frigidaire Switch
355304505258 Frigidaire Harness
365304513568 Frigidaire Latch Assembly
37134742002 Frigidaire Plug
39131302800 Frigidaire Drum Vane Screw
405304529911 Frigidaire Frame Assembly
415304529789 Frigidaire Frame
42WCI 5304536129
435304529871 Frigidaire Pin
445304529788 Frigidaire Bracket Assembly
45WCI 5304535899
465304504999 Frigidaire Dryer Door Glass
475304505012 Frigidaire Clamp
48WCI 5304536136
49WCI 5304536127
50WCI 5304535937
51134792100 Frigidaire Bracket
52137031800 Frigidaire Cushion
53WCI 137560430
545304505082 Frigidaire Top Panel
55134694400 Frigidaire Cover
57131243700 Frigidaire Screw
58131168200 Frigidaire Dryer Screw
59137573900 Frigidaire Screw 1/4-14 X .375
60131205100 Frigidaire Screw
61137285100 Frigidaire Screw
62WCI 5304536126
63137087000 Frigidaire Screw
645304505408 Frigidaire Cord
