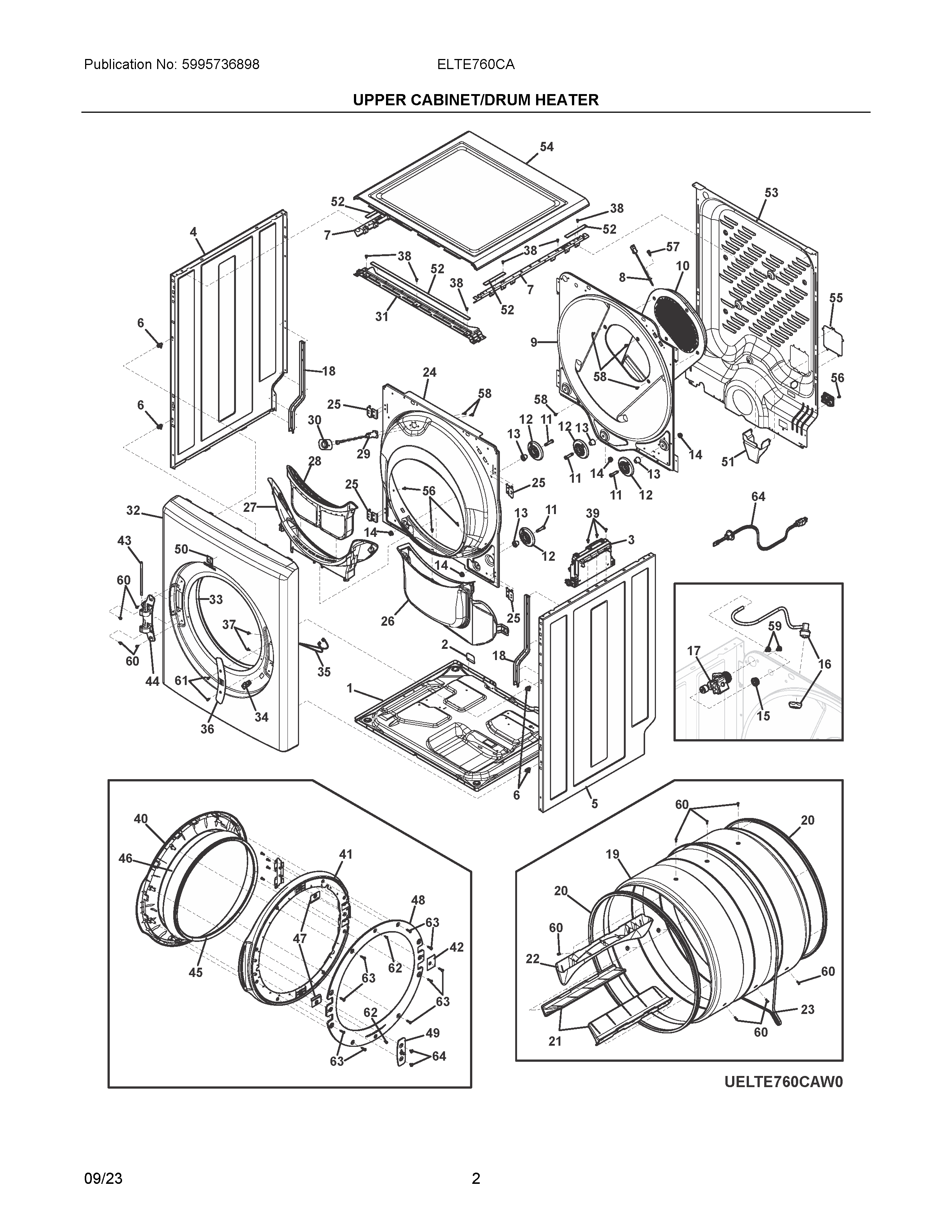

ELTE760CAW0 02 – UPPER CABINET/DRUM HEATERadmin2025-04-26T08:52:13+00:00ELTE760CAW0 02 – UPPER CABINET/DRUM HEATER
Products
| Position | Product |
|---|
| NI | 134154100 Frigidaire Screw 10-32 x 0.375 Co |
| NI | 131202300 Frigidaire Screw |
| NI | 5304505259 Frigidaire Screw |
| NIA | 131205500 Frigidaire Screw |
| 1 | BASE, DRYER, WASHED |
| 2 | 137537100 Frigidaire Cover |
| 3 | 5304536155 Frigidaire Main Board Assembly |
| 4 | 134712696 Frigidaire Panel |
| 5 | 134712796 Frigidaire Panel |
| 6 | 5304505102 Frigidaire Clip |
| 7 | BRACE, SIDE PANEL |
| 8 | 5304520302 Frigidaire Thermistor |
| 9 | REAR BULKHEAD, DRYER |
| 10 | 5304513571 Frigidaire Duct Assembly |
| 11 | 5304529714 Frigidaire Shaft |
| 12 | 5304523152 Frigidaire Washer Wheel Roller |
| 13 | 5304523154 Frigidaire Spacer |
| 14 | 5304523153 Frigidaire Nut |
| 15 | 137017200 Frigidaire Grommet |
| 16 | 5304529773 Frigidaire Nozzle Assembly |
| 17 | LOW PROFILE MIST VALVE |
| 18 | 137029801 Frigidaire Bracket Assembly |
| 19 | 137610710 Frigidaire Drum Assembly |
| 20 | 5304499489 Frigidaire Washer Felt Seal |
| 21 | 137610600 Frigidaire Vane |
| 22 | VANE, DRUM, GRAY, MIXING |
| 23 | 5 RIB DRYER BELT |
| 24 | 5304521387 Frigidaire Bulkhead |
| 25 | 5304505118 Frigidaire Bracket |
| 26 | 5304521401 Frigidaire Duct Assembly |
| 27 | GRILL ASSEMBLY |
| 28 | 5304529766 Frigidaire Filter Assembly |
| 29 | LAMP ASSEMBLY, LED, W/HARNESS |
| 30 | 5304521476 Frigidaire Bracket Assembly |
| 31 | 5304513567 Frigidaire Bracket |
| 32 | FRONT PANEL, DRYER, WHITE |
| 33 | 5304505111 Frigidaire Gasket |
| 34 | 134813663 Frigidaire Washer Switch |
| 35 | 5304505258 Frigidaire Harness |
| 36 | 5304513568 Frigidaire Latch Assembly |
| 37 | 134742000 Frigidaire Plug |
| 39 | 131302800 Frigidaire Drum Vane Screw |
| 40 | 5304529911 Frigidaire Frame Assembly |
| 41 | 5304529789 Frigidaire Frame |
| 42 | WCI 5304536129 |
| 43 | 5304529871 Frigidaire Pin |
| 44 | 5304529788 Frigidaire Bracket Assembly |
| 45 | WCI 5304535899 |
| 46 | 5304504999 Frigidaire Dryer Door Glass |
| 47 | 5304505012 Frigidaire Clamp |
| 48 | WCI 5304536136 |
| 49 | WCI 5304536127 |
| 50 | WCI 5304535937 |
| 51 | 134792100 Frigidaire Bracket |
| 52 | 137031800 Frigidaire Cushion |
| 53 | WCI 137560430 |
| 54 | 5304505081 Frigidaire Top Panel |
| 55 | 134694400 Frigidaire Cover |
| 57 | 131243700 Frigidaire Screw |
| 58 | 131168200 Frigidaire Dryer Screw |
| 59 | 137573900 Frigidaire Screw 1/4-14 X .375 |
| 60 | 131205100 Frigidaire Screw |
| 61 | 137285100 Frigidaire Screw |
| 62 | WCI 5304536126 |
| 63 | 137087000 Frigidaire Screw |
| 64 | 5304505408 Frigidaire Cord |
