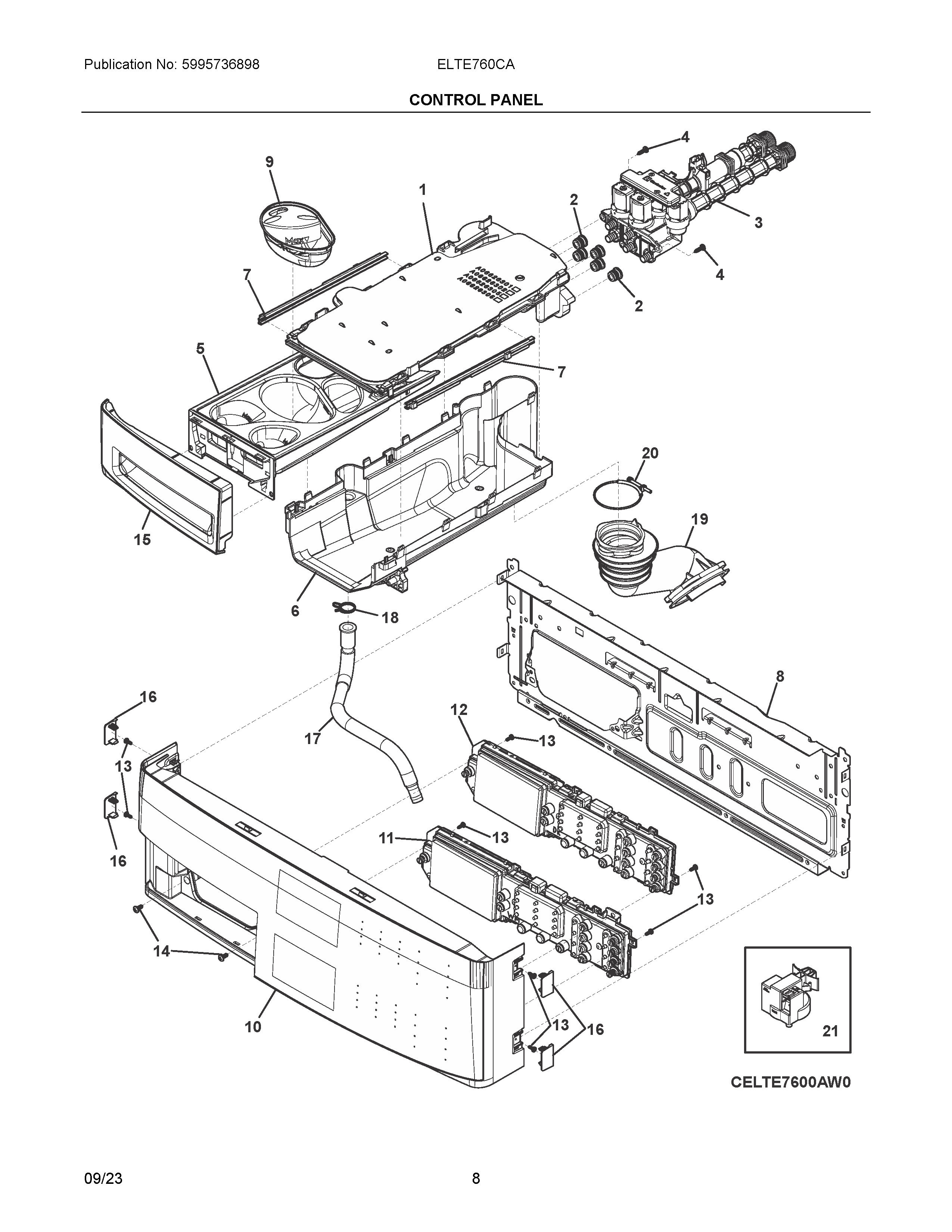

ELTE760CAW0 04 – CONTROL PANEL

ELTE760CAW0 04 – CONTROL PANEL

Written by

in

ELTE760CAW0 04 – CONTROL PANEL

Products

PositionProduct
NIHARNESS, WIRING, MAIN, WASHER
NI5304535930 Frigidaire Harness
NI5304464772 Frigidaire Refrigerator Wire Tie
NIA134629400 Frigidaire Screw
NI5304528020 Frigidaire Cable Tie
15304514794 Frigidaire Washer Conveyor
2134371300 DISPENSER TO VALVE GASKET
35304535923 Frigidaire Valve
45304514820 Frigidaire Screw
55304514792 Frigidaire Drawer Dispenser
65304535948 Frigidaire Housing
75304514781 Frigidaire Slider Assembly
8BRACKET, FRONT ALIGNMENT
95304514801 Frigidaire Cup Assembly
105304536156 Frigidaire Control Panel
115304536036 Frigidaire Assembly User Interface Board
125304536038 Frigidaire Assembly User Interface Board
135304505441 Frigidaire Screw
14131302800 Frigidaire Drum Vane Screw
155304536069 Frigidaire Handle Assembly
16COVER, SCREW, WHITE
17HOSE, DISP-TO-BELLOWS
18134737300 Frigidaire Clamp
19134625700 Frigidaire Hose
20134372400 Frigidaire Clamp
21SENSOR SWITCH
