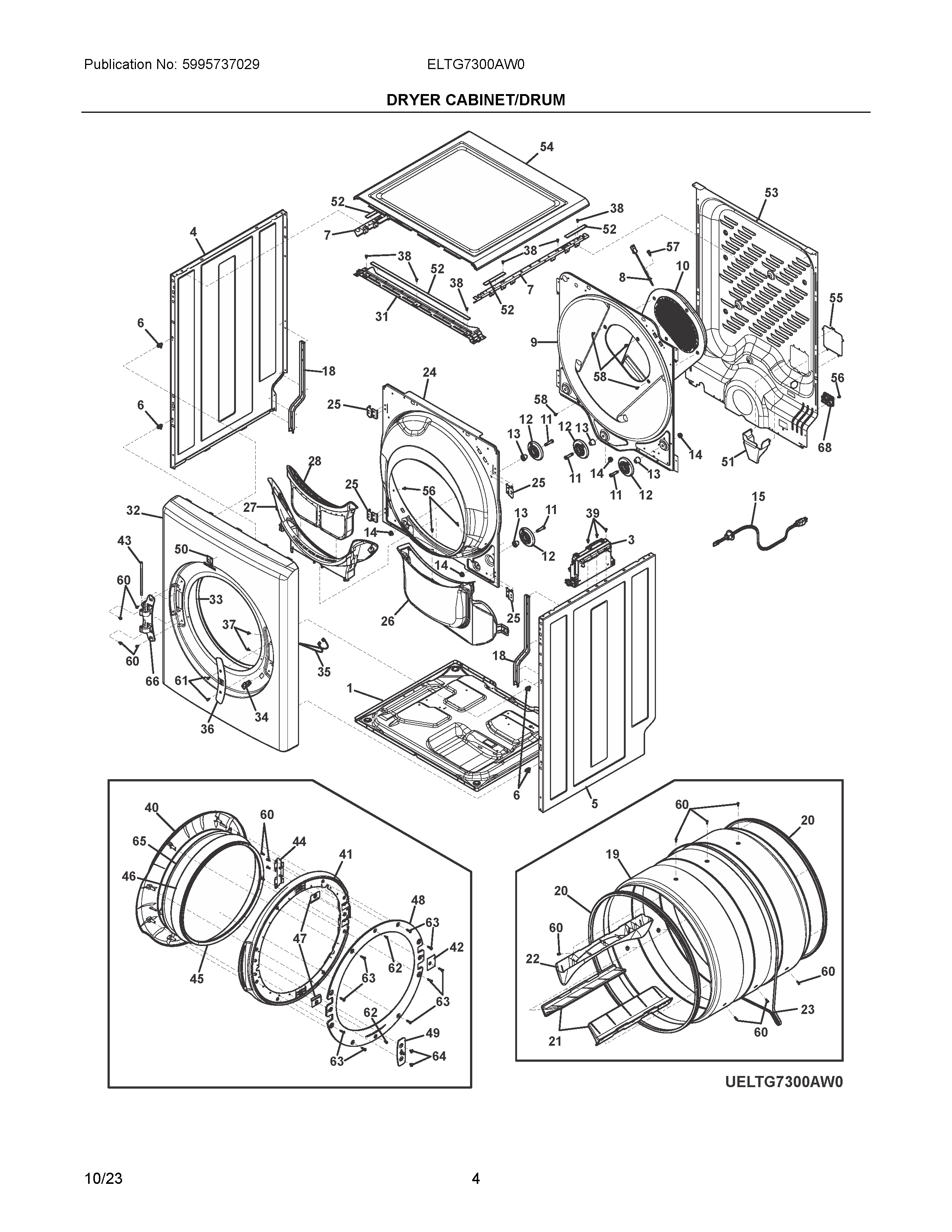

ELTG7300AW0 02 – DRYER CABINET/DRUM

ELTG7300AW0 02 – DRYER CABINET/DRUM

Written by

in

ELTG7300AW0 02 – DRYER CABINET/DRUM

Products

PositionProduct
NI134154100 Frigidaire Screw 10-32 x 0.375 Co
NI131202300 Frigidaire Screw
NI5304505259 Frigidaire Screw
1BASE, DRYER, WASHED
3MAIN BOARD, ASSEMBLY, DRYER, W/HOUSING
4134712696 Frigidaire Panel
5134712796 Frigidaire Panel
65304505102 Frigidaire Clip
7BRACE, SIDE PANEL
85304520302 Frigidaire Thermistor
95304521410 Frigidaire Bulkhead
105304515366 Frigidaire Duct
115304529714 Frigidaire Shaft
125304523152 Frigidaire Washer Wheel Roller
135304523154 Frigidaire Spacer
145304523153 Frigidaire Nut
155304505407 Frigidaire Cord
18137029801 Frigidaire Bracket Assembly
19137610700 Frigidaire Drum
205304499489 Frigidaire Washer Felt Seal
21137610610 Frigidaire Vane
22VANE, MIXING, SMOOTH
235 RIB DRYER BELT
245304521391 Frigidaire Bulkhead
255304505118 Frigidaire Bracket
265304521401 Frigidaire Duct Assembly
27GRILL ASSEMBLY
285304529766 Frigidaire Filter Assembly
315304513567 Frigidaire Bracket
32FRONT PANEL, DRYER, WHITE
335304505111 Frigidaire Gasket
34134813663 Frigidaire Washer Switch
355304505258 Frigidaire Harness
365304513568 Frigidaire Latch Assembly
37134742000 Frigidaire Plug
39131302800 Frigidaire Drum Vane Screw
40FRAME, OUTER DOOR, DRYER
415304529789 Frigidaire Frame
42WCI 5304536129
435304529871 Frigidaire Pin
445304529788 Frigidaire Bracket Assembly
45WCI 5304535899
465304504999 Frigidaire Dryer Door Glass
475304505012 Frigidaire Clamp
48WCI 5304536136
49WCI 5304536127
50WCI 5304535937
51134792100 Frigidaire Bracket
52137031800 Frigidaire Cushion
53WCI 137560431
545304505081 Frigidaire Top Panel
55134694400 Frigidaire Cover
57131243700 Frigidaire Screw
58131168200 Frigidaire Dryer Screw
60131205100 Frigidaire Screw
61137285100 Frigidaire Screw
62WCI 5304536126
63137087000 Frigidaire Screw
64137241000 Frigidaire Screw
655304505119 Frigidaire Shield Assembly
665304535750 Frigidaire Hinge Assembly
68WCI 5304535981
