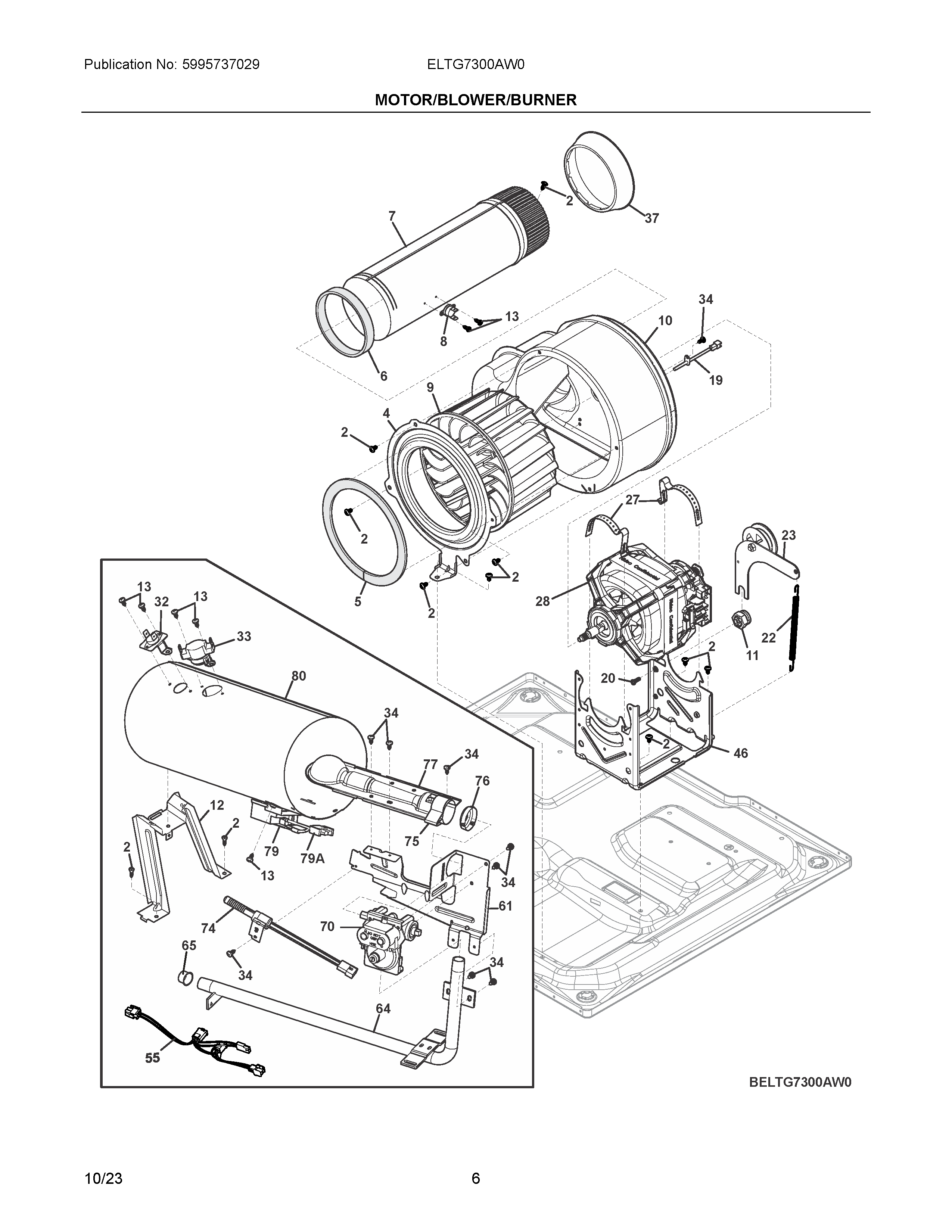

ELTG7300AW0 03 – MOTOR/BLOWER/BURNER

ELTG7300AW0 03 – MOTOR/BLOWER/BURNER

Written by

in

ELTG7300AW0 03 – MOTOR/BLOWER/BURNER

Products

PositionProduct
NI134154100 Frigidaire Screw 10-32 x 0.375 Co
NI131202300 Frigidaire Screw
NI131302800 Frigidaire Drum Vane Screw
2131168200 Frigidaire Dryer Screw
45304505074 Frigidaire Spacer
55304505313 Frigidaire Gasket
65304505318 Frigidaire Gasket
75304515233 Frigidaire Tube
8134711401 Frigidaire Dryer Thermal Fuse
95304513609 Frigidaire Washer Blower Wheel
105304529655 Frigidaire Blower Assembly
115304525724 Frigidaire Spacer
12134713901 Frigidaire Bracket Assembly
13134935200 Frigidaire Screw
19THERMISTOR
20131205100 Frigidaire Screw
22131601000 Frigidaire Idler Spring Assembly
23134793511 Frigidaire Idler Arm Assembly
27134242400 Frigidaire Washer Clamp Assembly
285304529782 Frigidaire Motor
32137539200 Frigidaire Dryer Thermal Limiter Fuse Replacement 314°F
33137116700 Frigidaire Washer Thermostat
34131243700 Frigidaire Screw
37137553500 Frigidaire COVER
465304525693 Frigidaire Bracket
55137029500 Frigidaire Harness
61134715801 Frigidaire Bracket
64137019000 Frigidaire Pipe
6508015112 Frigidaire CAP
70DRYER GAS VALVE
74IGNITER
75134258500 Frigidaire Air Shutter
76134714401 Frigidaire Collar
77134197701 Frigidaire Burner
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
79A134259100 Frigidaire Harness
805304507398 Frigidaire Tube
