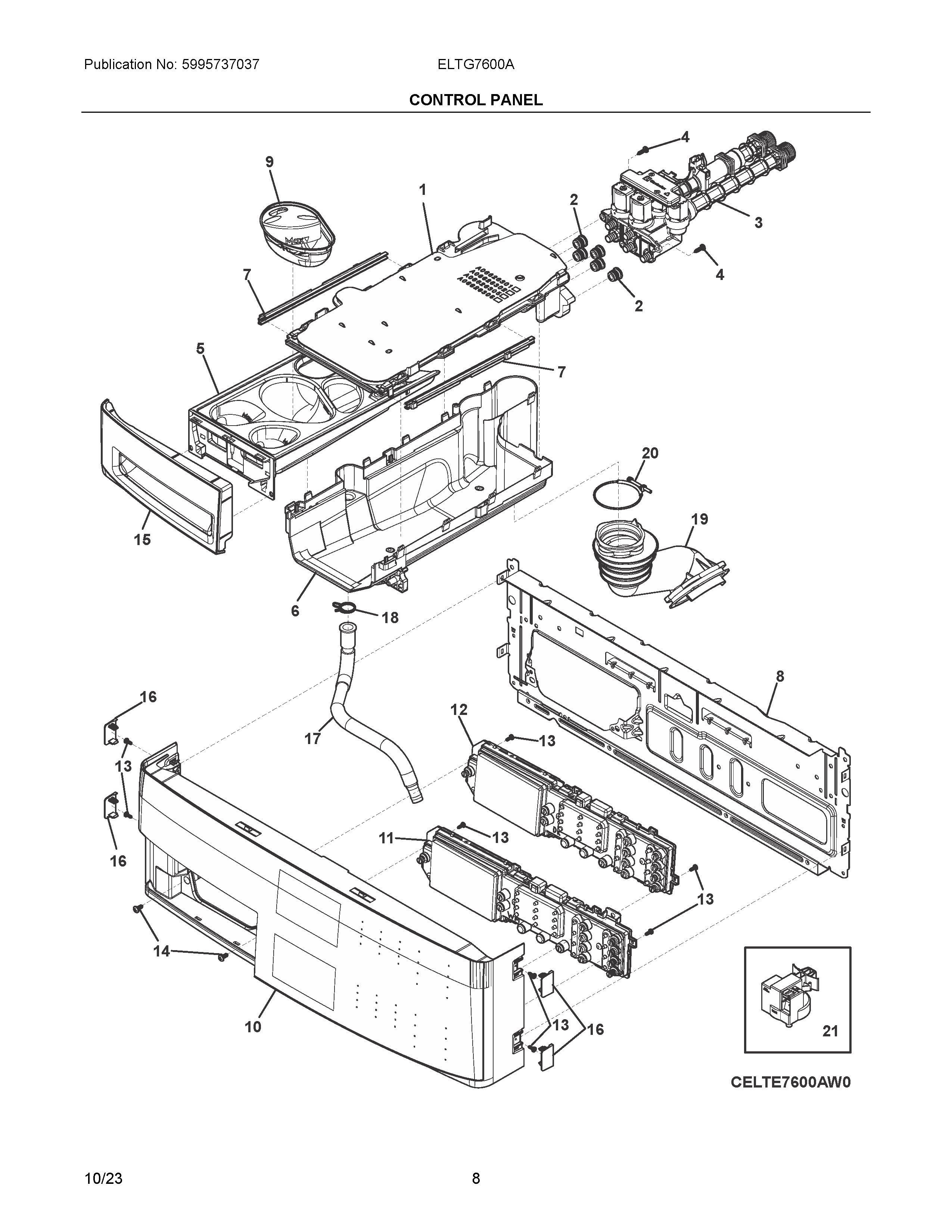

ELTG7600AW0 04 – CONTROL PANELadmin2025-04-26T08:52:33+00:00ELTG7600AW0 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| NI | HARNESS, WIRING, MAIN, DRYER |
| NI | HARNESS, WIRING, MAIN, WASHER |
| NI | 5304464772 Frigidaire Refrigerator Wire Tie |
| NIA | 134629400 Frigidaire Screw |
| NI | 5304528020 Frigidaire Cable Tie |
| 1 | 5304514794 Frigidaire Washer Conveyor |
| 2 | 134371300 DISPENSER TO VALVE GASKET |
| 3 | 5304535923 Frigidaire Valve |
| 4 | 5304514820 Frigidaire Screw |
| 5 | 5304514792 Frigidaire Drawer Dispenser |
| 6 | 5304535948 Frigidaire Housing |
| 7 | 5304514781 Frigidaire Slider Assembly |
| 8 | BRACKET, FRONT ALIGNMENT |
| 9 | 5304514801 Frigidaire Cup Assembly |
| 10 | 5304536156 Frigidaire Control Panel |
| 11 | 5304536036 Frigidaire Assembly User Interface Board |
| 12 | 5304536038 Frigidaire Assembly User Interface Board |
| 13 | 5304505441 Frigidaire Screw |
| 14 | 131302800 Frigidaire Drum Vane Screw |
| 15 | 5304536069 Frigidaire Handle Assembly |
| 16 | COVER, SCREW, WHITE |
| 17 | HOSE, DISP-TO-BELLOWS |
| 18 | 134737300 Frigidaire Clamp |
| 19 | 134625700 Frigidaire Hose |
| 20 | 134372400 Frigidaire Clamp |
| 21 | SENSOR SWITCH |
