EMBD3010ASA 03 – CONTROL PANEL,DOOR

EMBD3010ASA 03 – CONTROL PANEL,DOOR

Written by

in

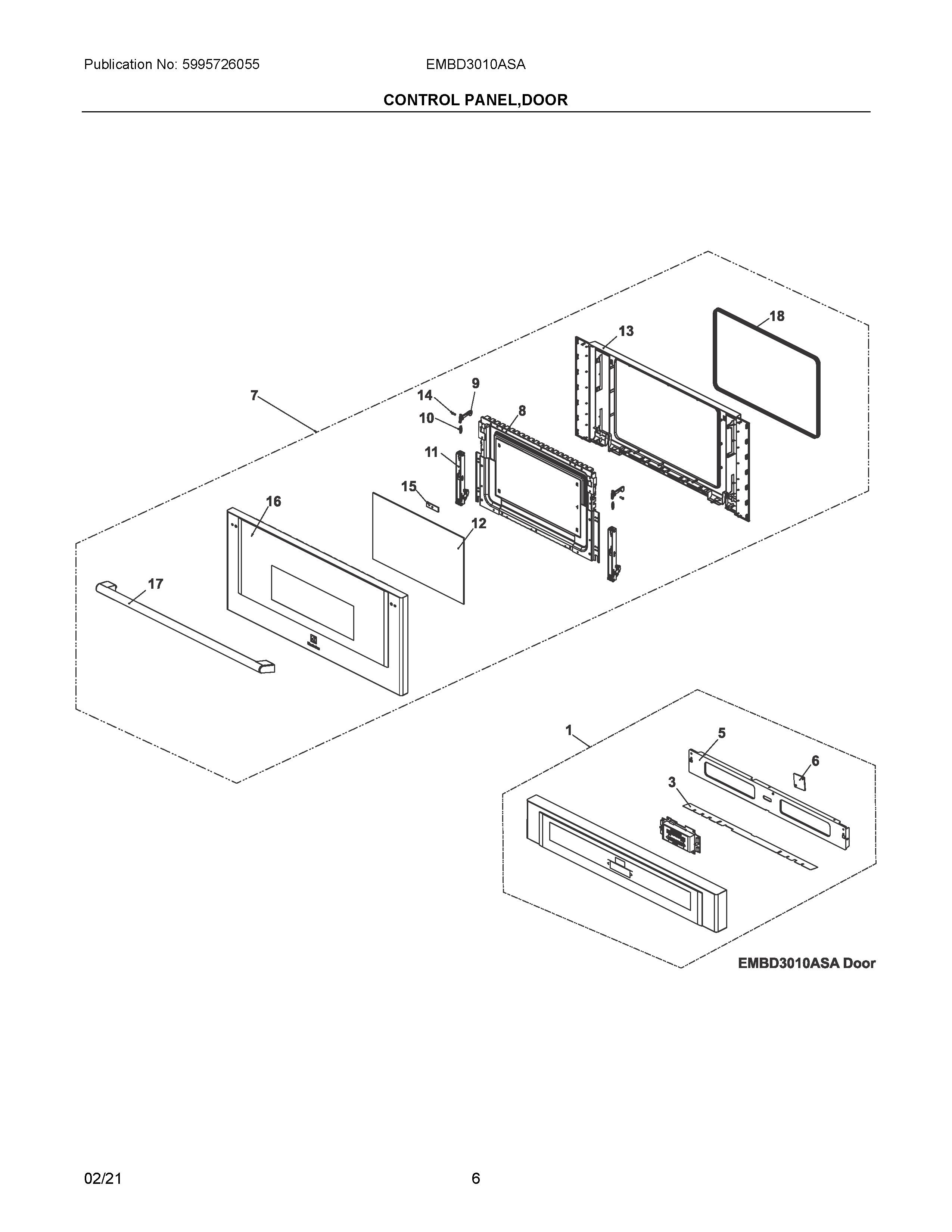

EMBD3010ASA 03 – CONTROL PANEL,DOOR

Products

PositionProduct
15304527868 Frigidaire Microwave Control Panel
3SHIELD, CONTROL PANEL
5BRACKET, CONTROL PANEL
6COVER, LIGHT BLOCK
7DOOR ASSEMBLY, COMPLETE, GLASS/STEEL, BLACK/STAINLESS
85304515299 Frigidaire Microwave Door Assembly
95304514310 Frigidaire Microwave Latch Assembly
105304514311 Frigidaire Spring
115304515301 Frigidaire Microwave Hinge
125304514306 Frigidaire Microwave Glass
135304515302 Frigidaire Microwave Cover
145304514312 Frigidaire Pin
15BRACKET, PLASTIC
16DOOR ASSEMBLY, OUTER, GLASS/STEEL, BLACK/STAINLESS
17HANDLE, DOOR, STAINLESS
185304515305 Frigidaire Microwave Gasket
