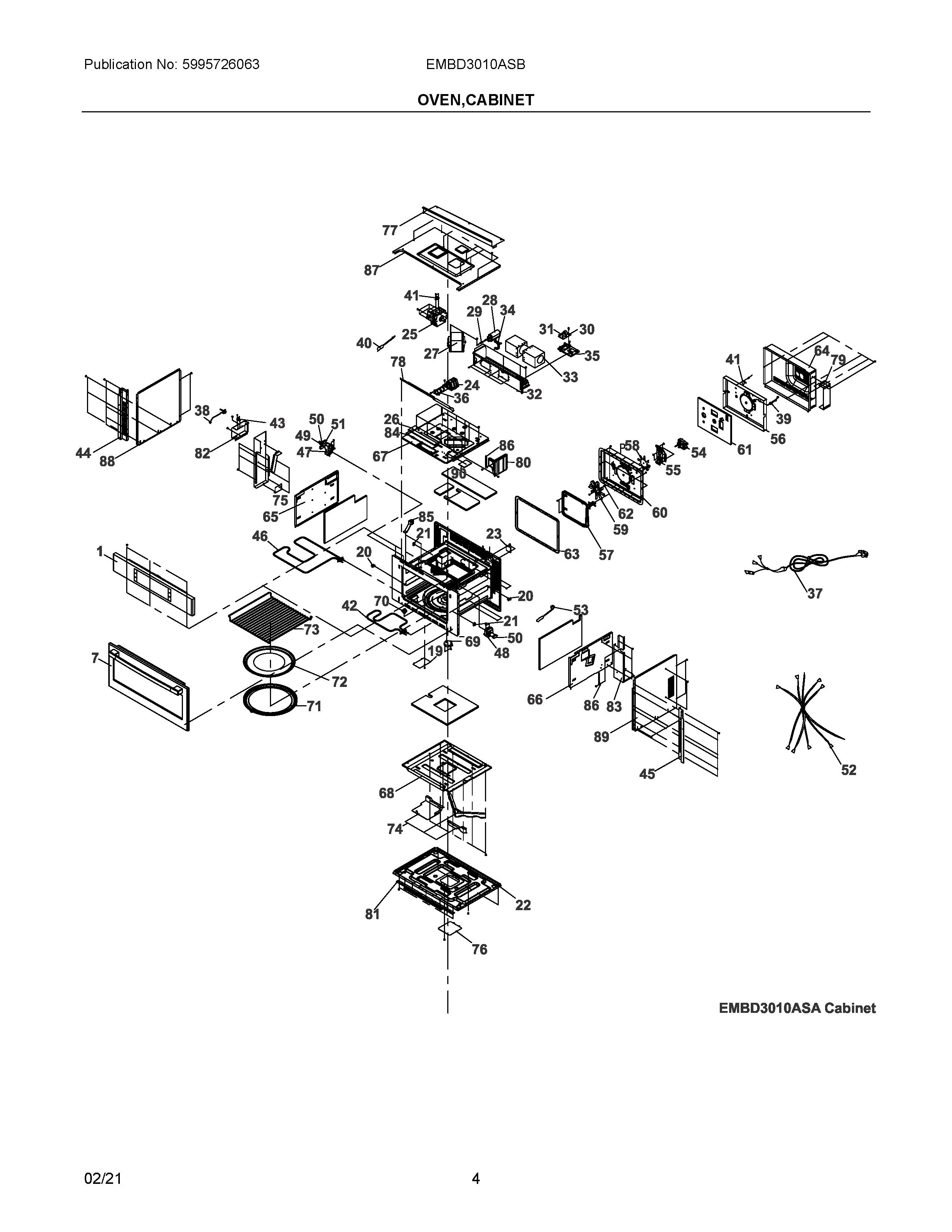

EMBD3010ASB 02 – OVEN,CABINET
Written by
in
EMBD3010ASB 02 – OVEN,CABINET
Products
Position
Product
NIB
WCI 5304515322
NIA
WCI 5304515321
1
5304527868 Frigidaire Microwave Control Panel
7
DOOR ASSEMBLY, COMPLETE, GLASS/STEEL, BLACK/STAINLESS
19
5304514227 Frigidaire Stirrer Blade Cover
20
5304514283 Frigidaire Microwave Support
21
5304514287 Frigidaire Microwave Support Bracket
22
5304514238 Frigidaire Microwave Base Plate
23
COVER, LIGHT BLOCK
24
5304514247 Frigidaire Cover
25
5304514250 Frigidaire Microwave Magnetron
26
5304518909 Frigidaire Barcket
27
5304514249 Frigidaire Microwave Transformer
28
5304513458 Frigidaire Microwave Capacitor
29
DIODE, HIGH VOLTAGE
30
5304525109 Frigidaire Microwave Filter
31
5304514258 Frigidaire Microwave Fuse
32
5304514254 Frigidaire Bracket Assembly
33
5304514255 Frigidaire Microwave Fan Exhaust
34
5304513482 Frigidaire Holder
35
5304515326 Frigidaire Holder
36
BULB, LAMP
37
5304515312 Frigidaire Power Cord
38
5304509652 Frigidaire Microwave Sensor
39
5304527877 Frigidaire Sensor
40
5304514252 Frigidaire Microwave Fuse Assembly
41
5304515313 Frigidaire Microwave Thermostat
42
HEATER, LOWER
43
5304514270 Frigidaire Microwave Thermostat
44
BRACKET, TRIM, LH
45
BRACKET, TRIM, RH
46
5304514233 Frigidaire Microwave Heater
47
5304515317 Frigidaire Microwave Board Latch
48
5304515318 Frigidaire Microwave Board Latch
49
5304514265 Frigidaire Microwave Rod
50
5304514264 Frigidaire Microwave Switch
51
5304514266 Frigidaire Microwave Switch
52
5304515319 Frigidaire Microwave Harness
53
HARNESS, WIRING, MOTOR
54
5304514299 Frigidaire Microwave Motor
55
5304514298 Frigidaire Bracket
56
COVER, CONVECTION
57
5304514293 Frigidaire Element
58
FAN BLADE, COOLING
59
5304514294 Frigidaire Fan Blade
60
COVER, ELEMENT
61
INSULATION, CONVECTION
62
BUSHING, CONVECTION MTR
63
GASKET
64
COVE
65
WCI 5304514268
66
WCI 5304514275
67
WCI 5304514244
68
WCI 5304518904
69
5304514231 Frigidaire Microwave Motor Assembly
70
5304514229 Frigidaire Microwave Coupler
71
5304514228 Frigidaire Microwave Tray
72
5304514285 Frigidaire Microwave Tray
73
5304514284 Frigidaire Microwave Shelf
74A
WCI 5304514236
74B
WCI 5304514237
74
WCI 5304514235
75
WCI 5304515320
76
5304514239 Frigidaire Cover
77
WCI 5304518908
78
WCI 5304514282
79
WCI 5304514286
80
WCI 5304515324
81
WCI 5304515325
82
WCI 5304514269
83
WCI 5304515323
84
5304527879 Frigidaire Microwave Pc Board
85
WCI 5304514242
86
5304515327 Frigidaire Support
87
WCI 5304514259
88
WCI 5304514272
89
WCI 5304514277
90
5304514241 Frigidaire Glass
←
