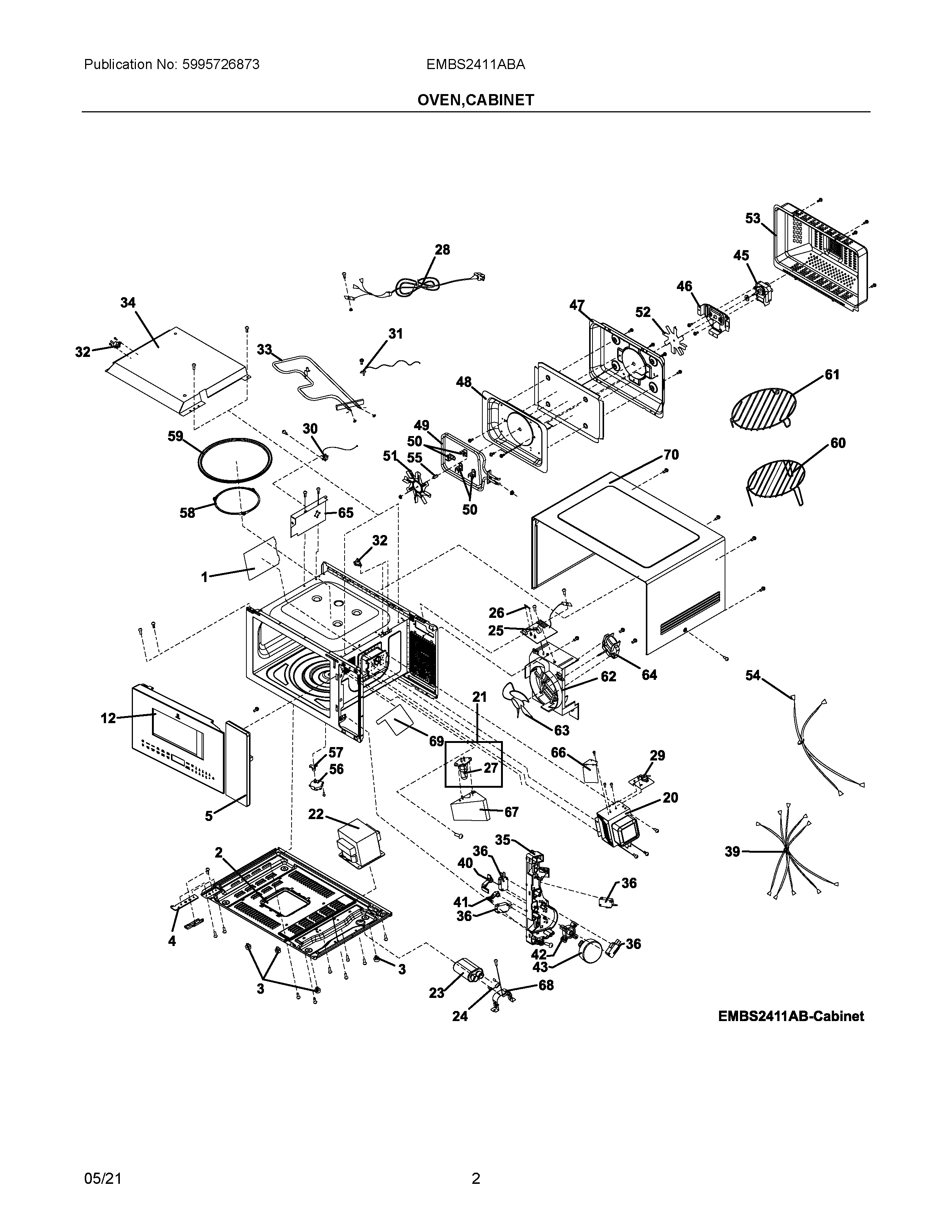

EMBS2411ABA 02 – OVEN,CABINET

Products

Position	Product
1	5304505675 Frigidaire Microwave Stirrer Blade Cover
2	BASE, BOTTOM
3	FOOT, CABINET
4	5304519320 Frigidaire Microwave Hinge
5	5304528933 Frigidaire Control Panel
12	5304528936 Frigidaire Door Assembly
20	5304509470 Frigidaire Microwave Magnetron
21	5304528944 Frigidaire Microwave Lamp Assembly
22	5304513457 Frigidaire Microwave High Voltage Transformer
23	5304528930 Frigidaire Capacitor
24	5304515185 Frigidaire Microwave Diode
25	5304525109 Frigidaire Microwave Filter
26	5304509451 Frigidaire Microwave Fuse
27	BULB, LAMP
28	POWER CORD
29	THERMOSTAT, ASSEMBLY, MAGNETRON
30	5304509652 Frigidaire Microwave Sensor
31	5304528955 Frigidaire Sensor
32	THERMOSTAT
33	HEATER, SEARING
34	SHIELD, HEAT INSULATOR, UPPER
35	BRACKET, LATCH BOARD
36A	SWITCH
36	5304520019 Frigidaire Microwave Microswitch
36B	5304520021 Frigidaire Microwave Microswitch
39	5304528951 Frigidaire Harness
40	5304528950 Frigidaire Switch
41	LEVER, INTERLOCK, LOWER
42	5304528952 Frigidaire Microwave Lever
43	MOTOR
45	MOTOR, CONVECTION FAN, DC BRUSHLESS
46	5304514298 Frigidaire Bracket
47	SHIELD, HEAT INSULATOR, BACK, CONVECTION FAN
48	COVER, HEATER, CONVECTION
49	HEATER, CONVECTION
50	BRACKET, HEATER, CONVECTION
51	BLADE, CONVECTION FAN
52	FAN BLADE, COOLING
53	SHIELD, HEAT INSULATOR, BACK
54	5304528959 Frigidaire Harness
55	PIN, COVER
56	5304509440 Frigidaire Microwave Motor
57	5304528954 Frigidaire Microwave Coupler
58	5304517881 Frigidaire Microwave Ring
59	5304509621 Frigidaire Microwave Glass Tray
60	RACK, ROUND, TALL
61	RACK, ROUND, SHORT
62	5304519349 Frigidaire Guide
63	5304509471 Frigidaire Microwave Motor
64	5304519350 Frigidaire Microwave Blade
65	INSULATOR, HEAT
66	5304513477 Frigidaire Microwave Guide
67	5304520017 Frigidaire Microwave Cover
68	WCI 5304528931
69	WCI 5304528945
70	WCI 5304528969
