EMO3000HSS05 MICROWAVE

EMO3000HSS05 MICROWAVE

Written by

in

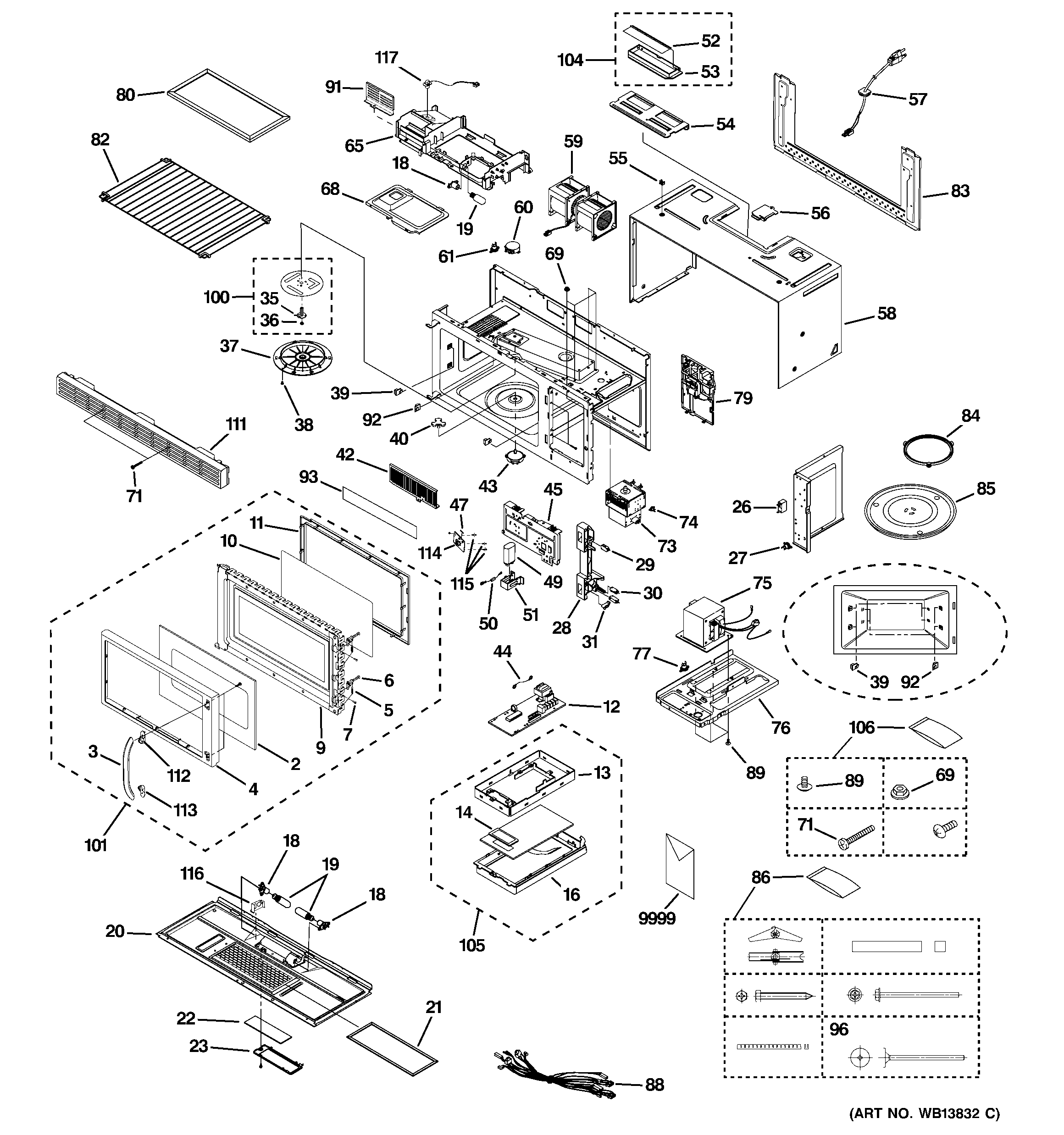

EMO3000HSS05 MICROWAVE

Products

Position	Product
2	GEN WB36X10295
3	GEN WB15X10147
4	GEN WB55X10530
5	GEN WB05X10006
6	GEN WB05X10007
7	WB06X10060 GE Oven Hinge Pin
9	GEN WB55X10531
10	GEN WB36X10068
11	GEN WB55X10532
12	GEN WB27X10872
13	ASSY-BKT C/PANEL
14	GEN WB36X10070
16	GEN WB07X10529
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10678
21	WB06X10596 GE Grease Filter Replacement
22	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
23	WB36X10216 GE Oven Glass Cover
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	MICROWAVE LATCH BODY
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
35	GEN WB06X10286
36	WB06X10416 GE Oven Stirrer Assembly
37	GEN WB06X10130
38	BUTTON-LOCK
39	GEN WB06X10467
40	WB06X10420 GE Oven Turntable Coupling
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
44	WB18X10122 GE Oven Wire GND Printed Circuit Board
45	GEN WB06X10147
47	WB27X10928 GE Oven Line Fuse
49	WB27X10011 GE Microwave Capacitor
50	WB27X10597 GE Oven Diode
51	GEN WB06X10118
52	WB06X10129 GE Oven Damper Cover
53	WB06X10436 GE Oven Hood Damper Assembly
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	GEN WB18X10200
58	GEN WB56X10267
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
65	GEN WB27X10422
68	BRACKET-DUCT UPPER ASM
69	WB01X10065 GE Oven Flange Nut
71	SCREW-GRILLE
73	WB27X10880 GE Oven Magnetron
74	GEN WB27X10166
75	WB27X10868 GE Oven High Voltage Transformer
76	GEN WB56X10212
77	WB27X1127 RANGE THERMAL FUSE
79	WB26X10105 GE Oven Fan Motor Assembly
80	CHARCOAL FILTER(OPTIONA)
82	GEN WB48X10053
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	GEN WB01X10181
88	GEN WB18X10334
89	WB01X10084 GE Oven Washer Screw
91	GEN WB06X10434
92	GEN WB06X10468
93	COOKING GUIDE-LABEL
96	WB01X10180 GE Oven Flat Bolt
101	GEN WB56X10552
105	GEN WB07X10959
106	GEN WB06X10435
111	WB07X10525 GE Oven Grille
112	GEN WB02X11053
113	GEN WB02X11054
114	WB02X11200 GE Noise Filter Assembly
115	WB4X175 GE Oven Printed Circuit Board Support
116	GEN WB02X11265
117	GEN WB27X10869
9999	GEN 31-40046
9999	GEN 49-40366-1
