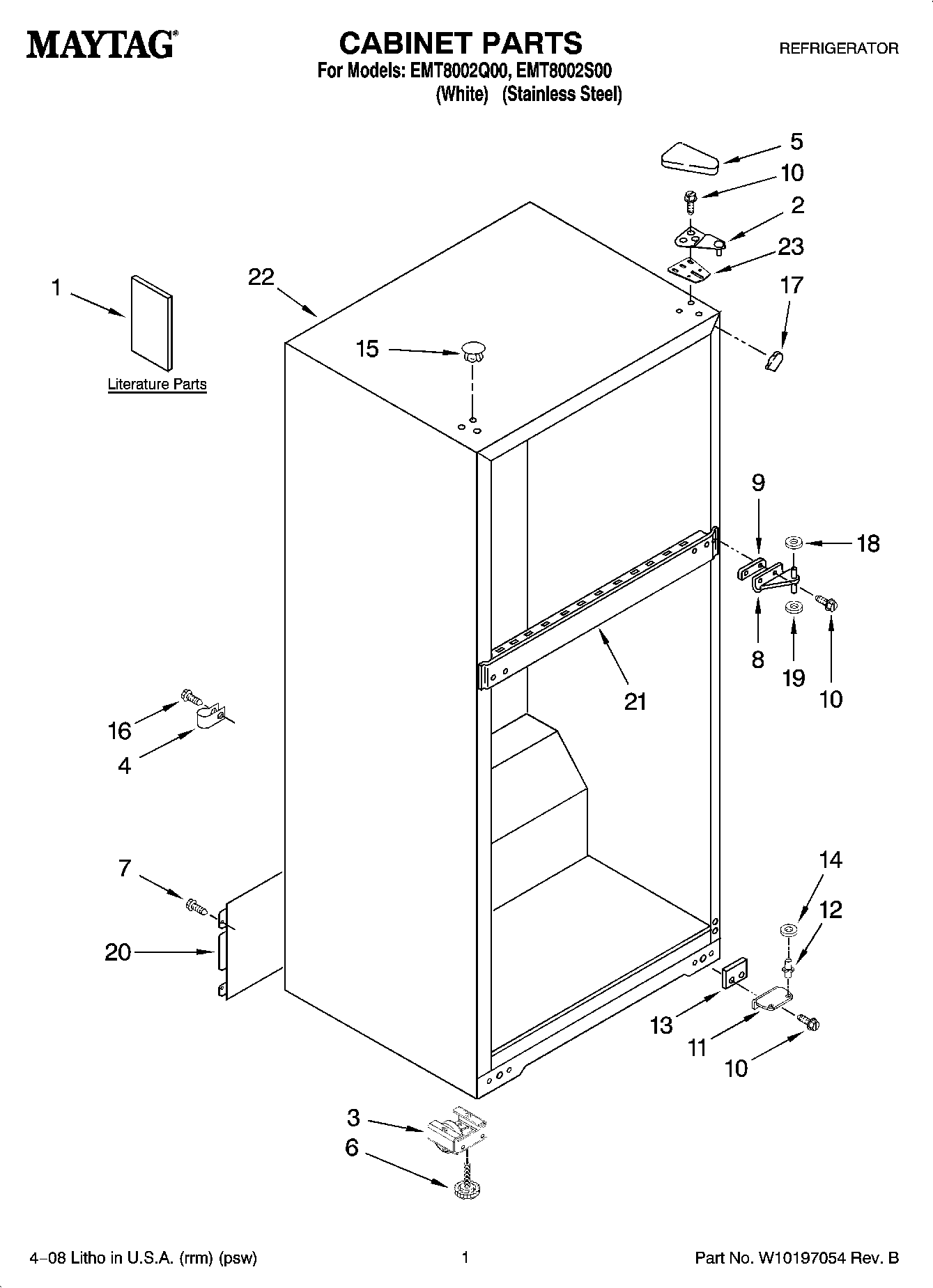

EMT8002Q00 01 – CABINET PARTS

EMT8002Q00 01 – CABINET PARTS

Written by

in

EMT8002Q00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	ROLLER, FRONT
4	MAY 489348
5	MAY 2213363
5	Cover, Hinge (White)
6	Leveler
8	MAY 2166086
9	SHIM, CENTER HINGE (BLACK)
9	SHIM, HINGE CENTER (WHITE)
10	MAY 489497
11	Hinge Butt, Btm
12	Hinge-Pin, Btm
13	MAY 2201567
14	Washer (1/16)
15	HOLE PLUG
15	MAY 2183998
16	MAY 489442
17	Corner Filler (Black)
17	Corner Filler
18	WASHER, PLASTIC
19	Washer (7/64)
20	Cover, Unit
23	SHIM, TOP HINGE
