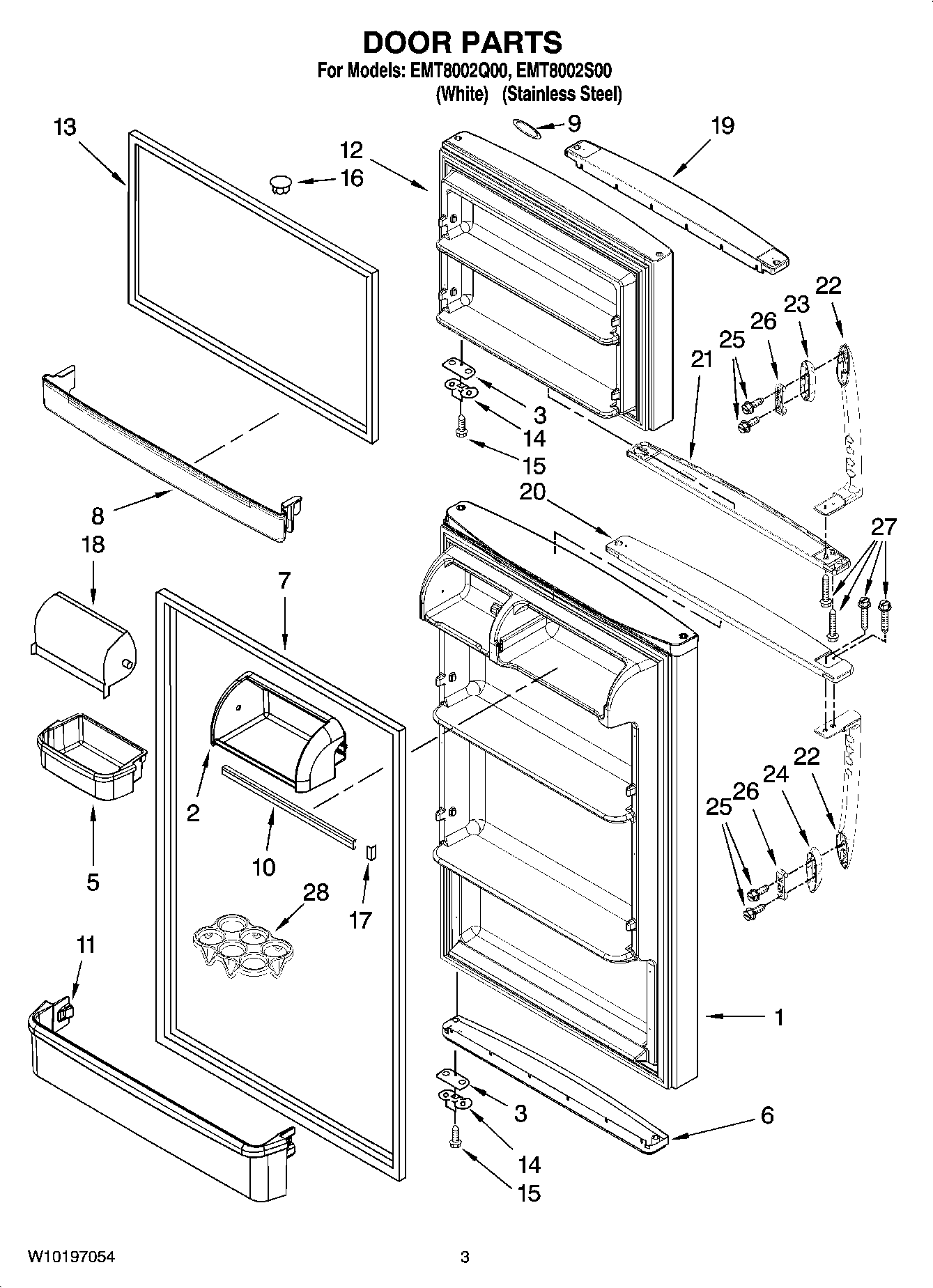

EMT8002Q00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Items 6 & 7) (White)
1	Refrigerator Door (Includes Items 6 & 7) (Stainless Steel)
2	Utility Comprtmnt.
3	Shim, Door Stop (White)
5	MAY 2324026
6	Endcap, Bottom (White)
6	Endcap, Bottom (Black)
7	GASKET, RC (BLACK)
7	MAY 2264727
8	MAY 2324028
9	MAY 2324038
10	Trim, Door Shelf
11	MAY 2324027
12	Freezer Door (Includes Items 13 & 19) (Stainless Steel)
12	Freezer Door (Includes Items 13 & 19) (White)
13	MAY 2264726
13	GASKET, FC (BLACK)
14	MAY 2189202
15	MAY 8533904
16	MAY 2212648
16	Hole Plug (Black)
17	Plug-Trim
18	MAY 2324037
19	Endcap, Top (White)
19	Endcap, Top (Black)
20	End Cap-Handle-RC (White)
20	End Cap-Handle-RC (Black)
21	End Cap-Handle-FC (White)
21	End Cap-Handle-FC (Black)
22	Handle-RC & FC (Black)
22	Handle-RC & FC (White)
23	MAY 2325605B
23	Collar-Handle (FC), White
24	MAY 2325607B
24	Collar-Handle (RC), White
25	MAY W10122125
26	MAY 2255411
27	MAY 8534058
28	Egg Rack
