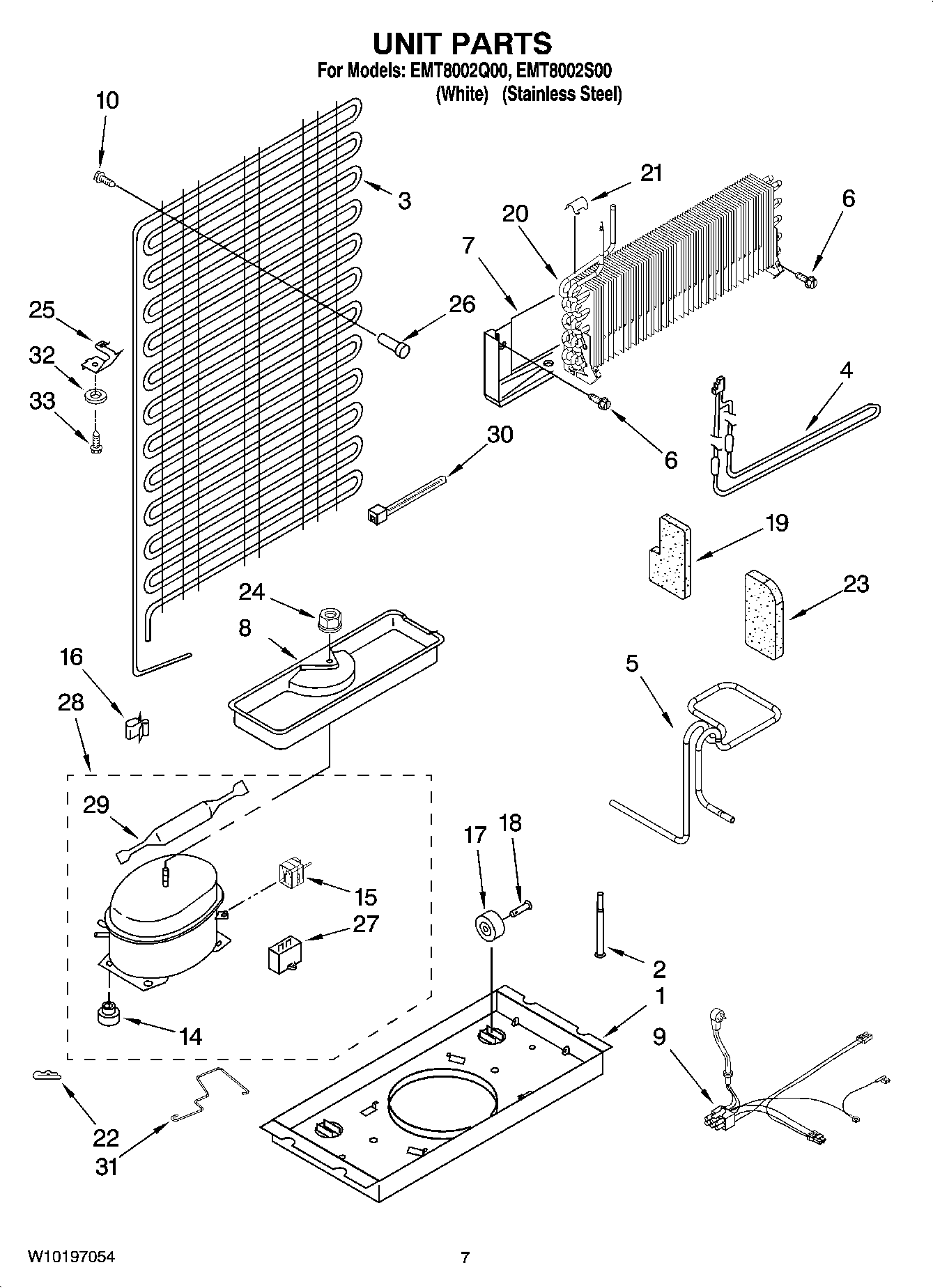

EMT8002S00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
1	MAY W10127453
2	PROCESS TUBE
3	MAY 2252730
4	MAY 2167357
5	MAY W10164849
6	MAY 489442
7	MAY 2319224
8	MAY 2201801
9	MAY W10183887
14	MAY 4387558
14	Grommet (Production)
15	Start Combo Device
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	Clip, Evaporator Tube
22	MAY 24364001
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
27	MAY 2254217
27	MAY 4387874
28	Compressor (Includes Items 14, 27 & 29) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	MAY 2320731
29	Drier
30	MAY 2263990
31	BALE STRAP
32	MAY VS611
33	MAY 8533892
