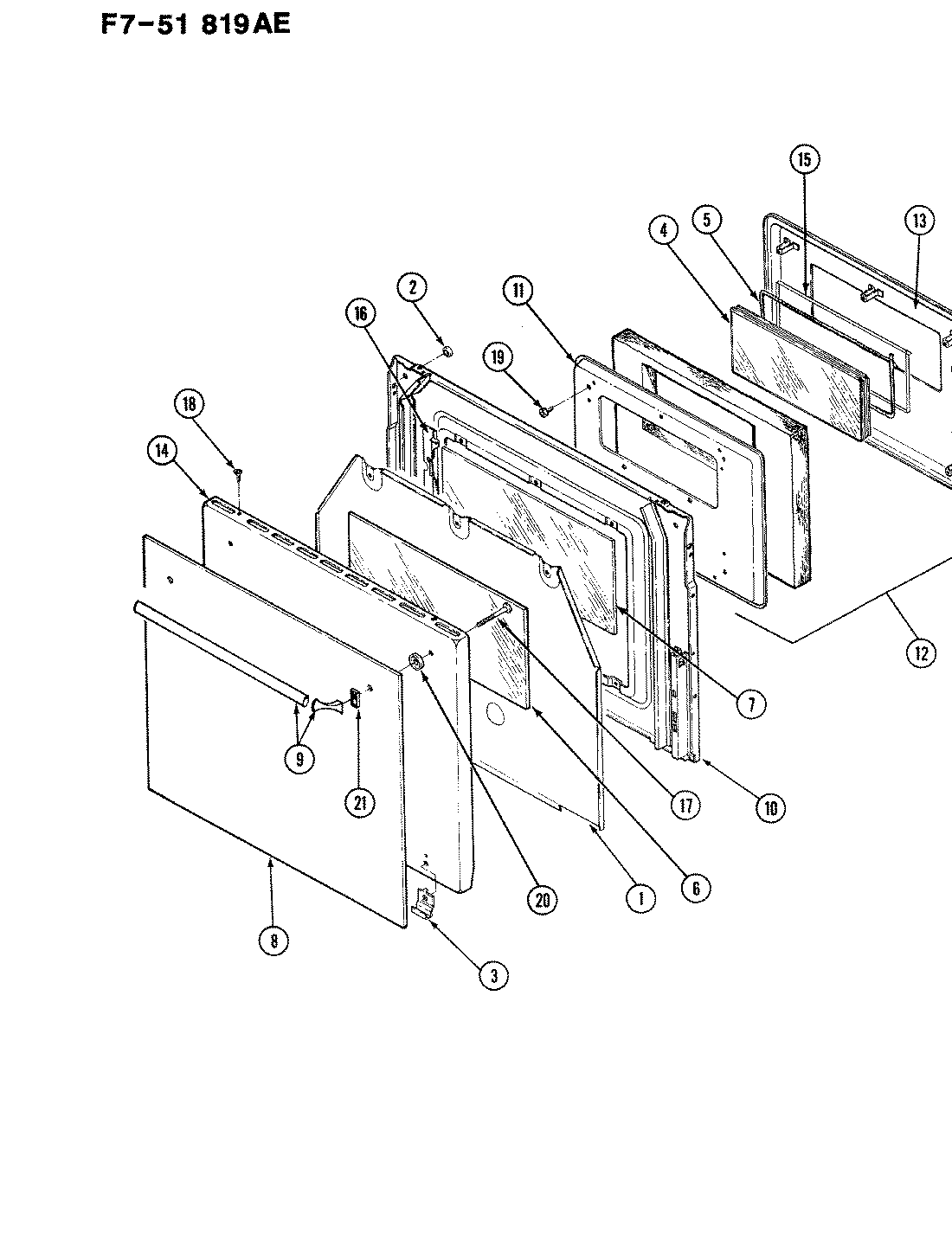

EPF7-51819AE 02 – DOOR ASSEMBLY

Products

Position	Product
1	MAY 3601F093-51
2	MAY 8003P009-60
2	MAY 8003P002-60
3	MAY 3819F010-70
3	MAY 7112P051-60
4	MAY 7706P177-60
4	MAY 7902P101-60
4	MAY 7902P287-60
5	MAY 7201P018-60
6	MAY 7902P135-60
7	MAY 7902P097-60
8	MAY 7902P120-60
9	MAY 8114P274-60
9	MAY 7701P025-60
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 2402W149-15
10	WP7103P114-60 Whirlpool Snap Nut
10	MAY 2402W128-15
10	MAY 2402W125-12
11	MAY 2410F016-51
12	MAY 2410A029-15
13	MAY 2410W029-15
14	MAY 2401W049-70
15	MAY 3804F022-45
16	MAY 7107P017-60
16	MAY 3804F051-80
17	MAY 7101P162-60
18	WP98008545 Whirlpool Screw
19	MAY 7101P061-60
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	MAY 8010P016-60
21	MAY 7109P012-60
21	MAY 8270P010-60
21	MAY 8010P015-60
